KeyDigital Logo
CASE STUDY

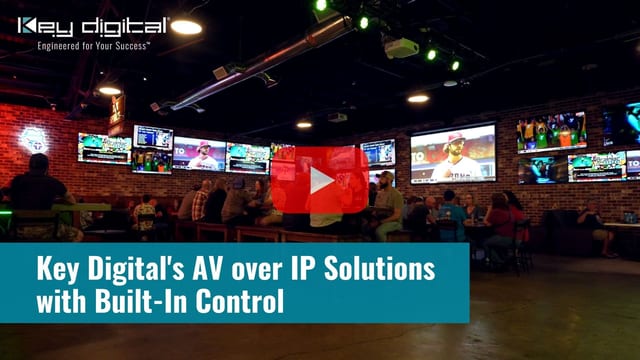

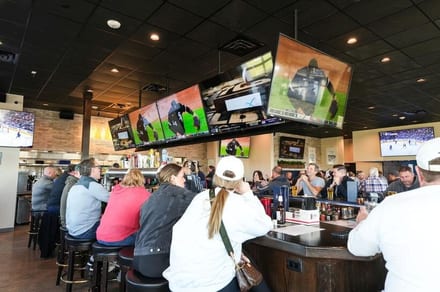

Large Bar / Restaurant AV over IP deployment with multiple video walls, compass control, and multi-zone audio integration
VIEW CASE STUDY

white paper

AV over IP - The Next Generation ProAV Connectivity Technology - Take an In-Depth Look at Future Tech
READ
By Mike Tsinberg

case study

Suffern Central School District Employs Key Digital Solutions for Its Conference/Training Room
VIEW CASE STUDY
webinar

Thursdays on Facebook LIVE - 9 AM

Visit on Facebook
thursdays, 9 AM

Customer Success Story



Pig Beach BBQ, Queens NY - View Details

Featured Products

KD-VW4x4ProK
4K UHD 4x4 Video Wall Processor and Seamless Matrix Switcher, includes 4 Rx units. Features 5 Video Wall Modes, independent AV routing, mirrored HDMI and UHDoTP outputs.

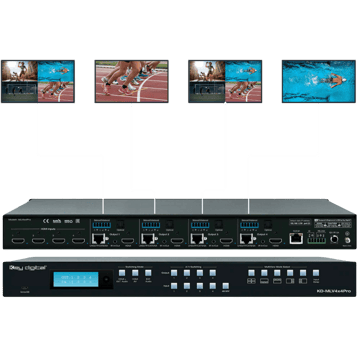

KD-MLV4x4Pro
4x4 4K UHD HDMI seamless matrix with multi-view tiling, includes 4 Rx units. Features independent AV routing, mirrored HDMI and UHDoTP outputs.
KD-UPS52U
4K/18G USB/Universal Presentation Switcher with 5 Inputs (HDBaseT, 2x HDMI, DP, USB-C), 2 Mirrored Outputs (HDBaseT, HDMI), LAN, ARC, Audio De-Embed, IR, RS-232, IP Control, CEC Manager™. Includes Rx.
KD-CAMUSB
PTZ USB Camera IR RS-232 Visca Controllable
KD-BYOD4K
4K KDPlay Wireless Presentation Gateway for PC, Mac, iOS, Android and Chrome OS devices. Full and Multi-Presenter Viewing Modes. Screen Mirroring via LAN or WiFi with built-in Antenna.
KD-X4x1WUTx
4x1 4K/18G 100m HDBT PoH Wall Plate Switcher with 2xHDMI, DP, USB-C, USB, LAN, Audio De-Embed, IR, RS-232, IP Control, CEC Manager (Tx Only)
KD-XPS22U
4K 18G Smart Extender Kit. Includes KD-PS22UTx and KD-X100MRx. Extends HDMI, USB 2.0 KVM, LAN, IR, RS-232 up to 328ft (100m). Features 2x1 Switcher, Mirrored Output, ARC of HDMI or Optical Audio, Audio De-Embed, Power over CAT, CEC Display Control. IP Controllable, KD-App Ready, KDMS™ Pro Ready.
KD-App - FREE Key Digital iOS App
Access and Control Key Digital App Ready products via TCP/IP directly with Key Digital® iOS App. FREE Download from the App Store.

Key to System Integration Success - Intelligent Control Selection

Odoo image and text block
Key Digital iOS App

Key Digital®iOS App

Access and Control Key Digital® App Ready products via TCP/IP directly with Key Digital® iOS App - FREE from the App Store

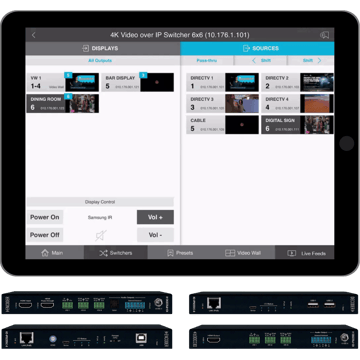

Access & Control AV over IP systems with full matrix switching capabilities
Scan & connect to Key Digital products automatically
Multi-View and Video Wall Controls for our Digital Signage products
Platform: iOS
KDMS-Pro Image
KDMS™ Pro

Key Digital Management Software™ Pro

Key Digital unit/system configuration and control PC software - For Professional A/V Integrators
Enterprise AV™ over IP system virtual matrix setup and configuration
Configure compatible Key Digital units & systems
Configure and manage video walls
Manage video and audio routing
Platform: PC
Odoo image and text block
Compass Control® Pro

Compass Control® Pro

Fully integrated iOS-based control system. Now with pre-built Compass Alliance™ partners control modules.
FREE iOS App with multiple demos
Integrates third party components with pre-built bi-directional modules and custom user interfaces
Remote access to system upgrades & troubleshooting
Build systems using Compass Navigator™ PC software
Mobile Platform: iOS
KD-WP8 Image

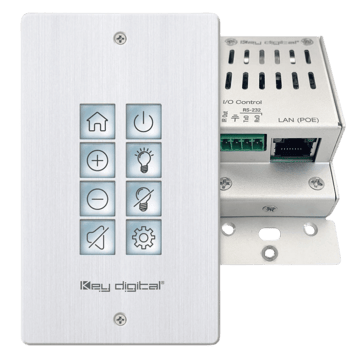

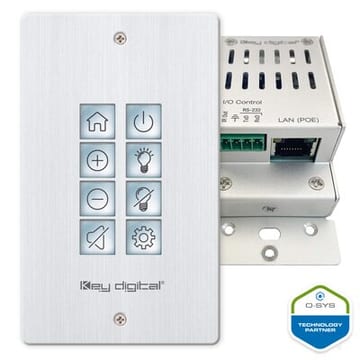

KD-WP8

KD-WP8

8 Button Web UI Programmable IP Control Wall Plate Keypad with PoE for KDPlug & Present™, Compass Control® Pro, and Third-Party Systems via Open API
Ease of Programming: Web GUI walkthrough of network settings, project import & export, button configuration, event programming and virtual event keypad access.
IP Controller: Natively sends TCP and UDP commands in ASCII or HEX format for controlling IP devices without any additional hardware needed.

Product Literature

Product Guide

Product Catalog

Compass Control® Pro Brochure
