Classroom in a Box Gymnasiums & Athletic Facilities Remote & Hybrid Classrooms
classroom in a box
COMPLETE PRESENTATION SYSTEM FOR ANY SIZE CLASSROOM
•  Fully integrated system
• Optional 8 button keypad for room configuration
• Simplistic front buttons control of displays & volume
• CEC display control, Source Select, AV Mute
• Amplified audio with mic mix
• Wireless casting from all five major platforms
• Accommodate a variety of plugin types

System:

  • Presentation solutions lineup

  • Complete Audio, Video, Control

  • AV Switching

  • Display Control

  • Speech Enforcement

  • Speaker Volume & Mic Mix

Video:

  • 4K 18Gbps Video Support

  • Products with variety of connection types

  • Wireless option supports Windows, Mac, iOS, Android, Chrome OS

  • Mirrored presenter display

  • CEC Display Controls

Audio:

  • Speech Enforcement

  • Speaker Volume

Operation:

  • 8 button keypad to control AV system and more

  • Front panel buttons for projector power and AV muting, as well as speaker volume

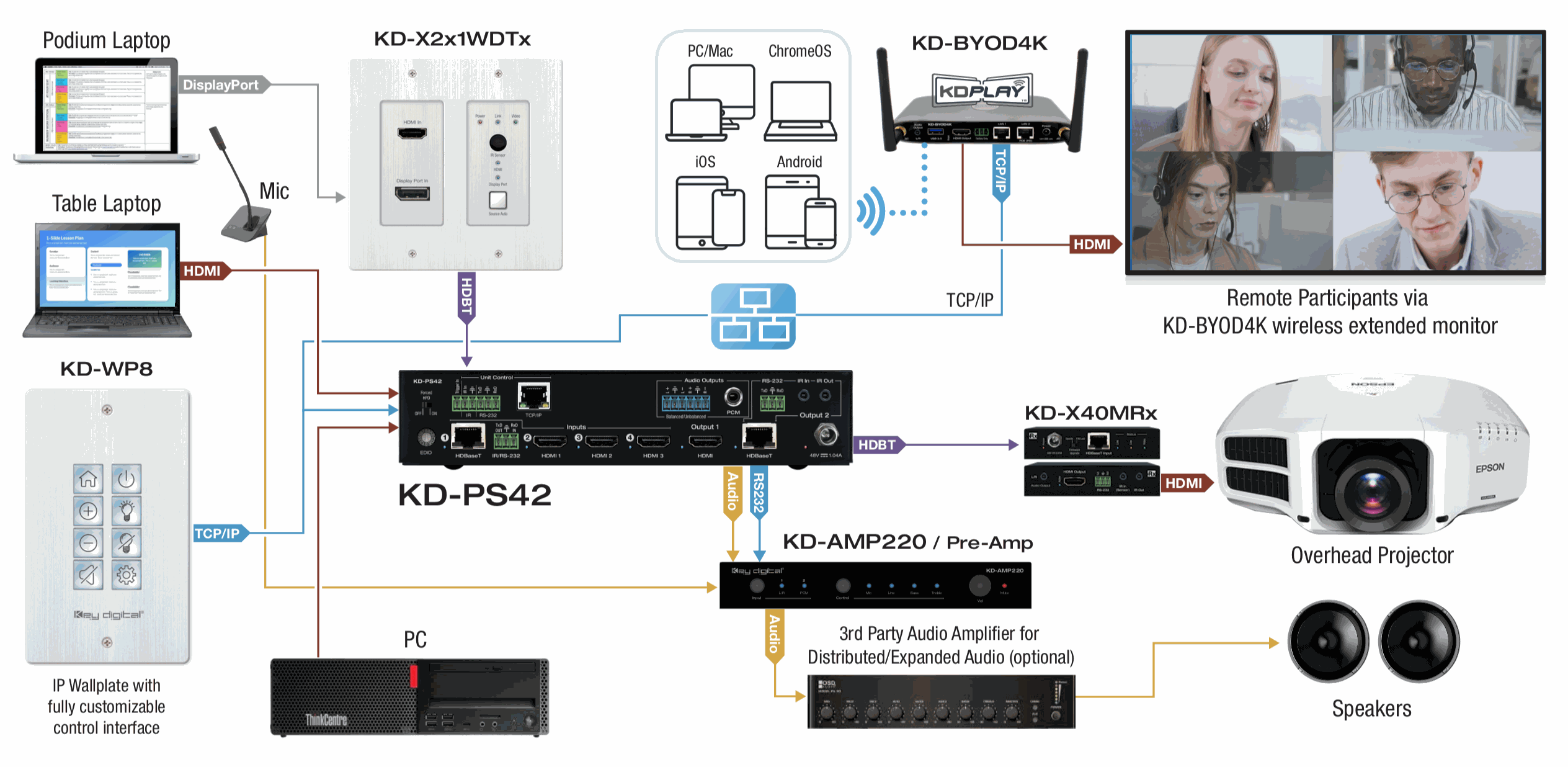

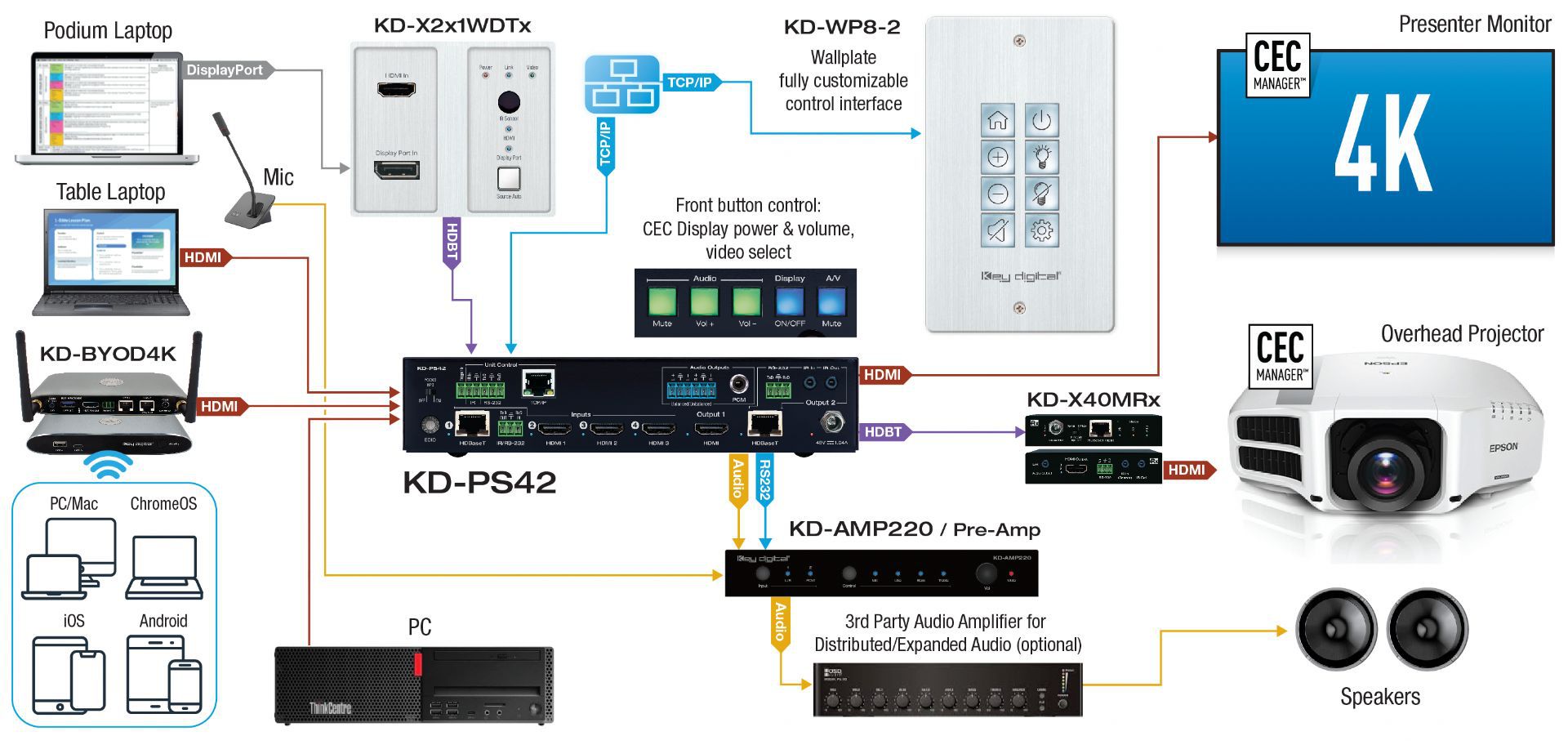

System Example
Large Classroom / Lecture Hall with Wired and Wireless BYOD Casting
A spacious lecture hall equipped for conferencing with students, featuring both wired and wireless Bring Your Own Device (BYOD) casting capabilities.

Presenter may plug in laptop or share content from dedicated HDMI sources.  User controls CEC projector, speech and audio volume with front buttons or optional 8 button keypad to configure for room usage with a single button press.

featured products
KD-PS42-A versatile and compact product designed for various application

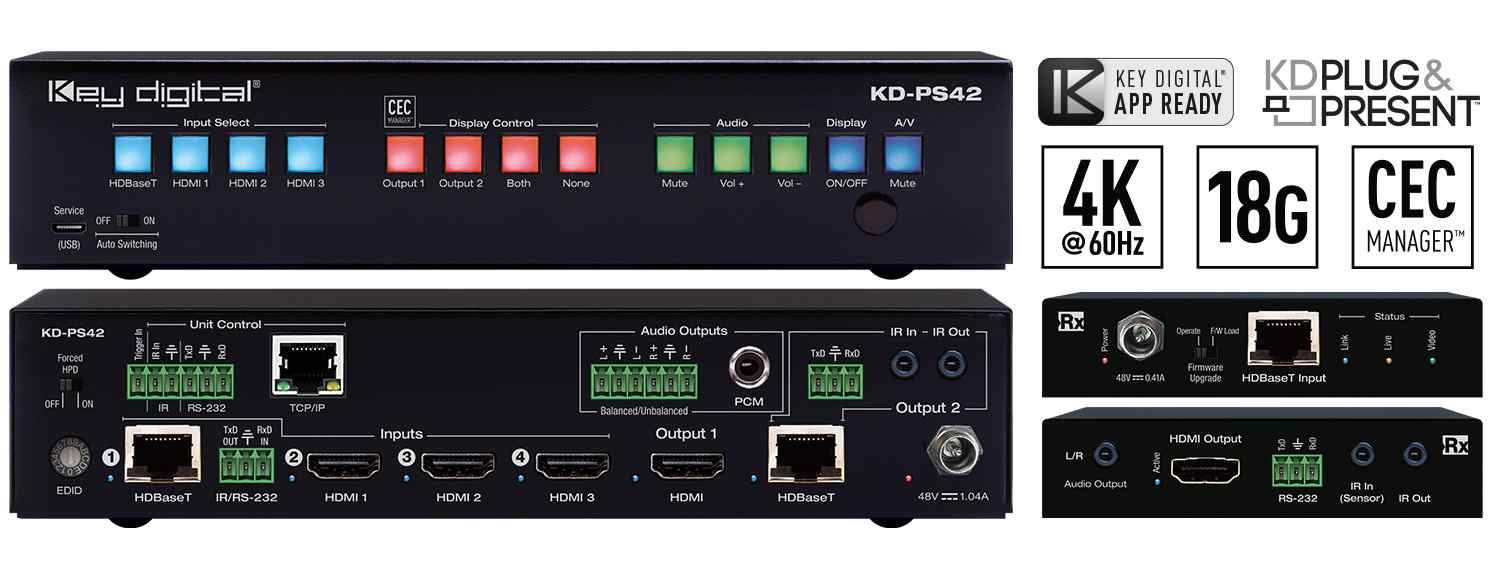

KD-PS42
4K/18G Presentation Switcher with 4 Inputs (HDBaseT, 3x HDMI), 2 Mirrored Outputs (HDBaseT, HDMI), Audio De-Embed, IR, RS-232, IP, CEC Manager™. Includes Rx
KD-BYOD4K Wireless Presentation Gateway- A high-performance solution for seamless wireless presentations and user-friendly functionality.
KD-BYOD4K
4K KDPlay Wireless Presentation Gateway for PC, Mac, iOS, Android and Chrome OS devices. Full and Multi-Presenter Viewing Modes.
A versatile control keypad with programmable buttons for IP, RS-232, and IR device control

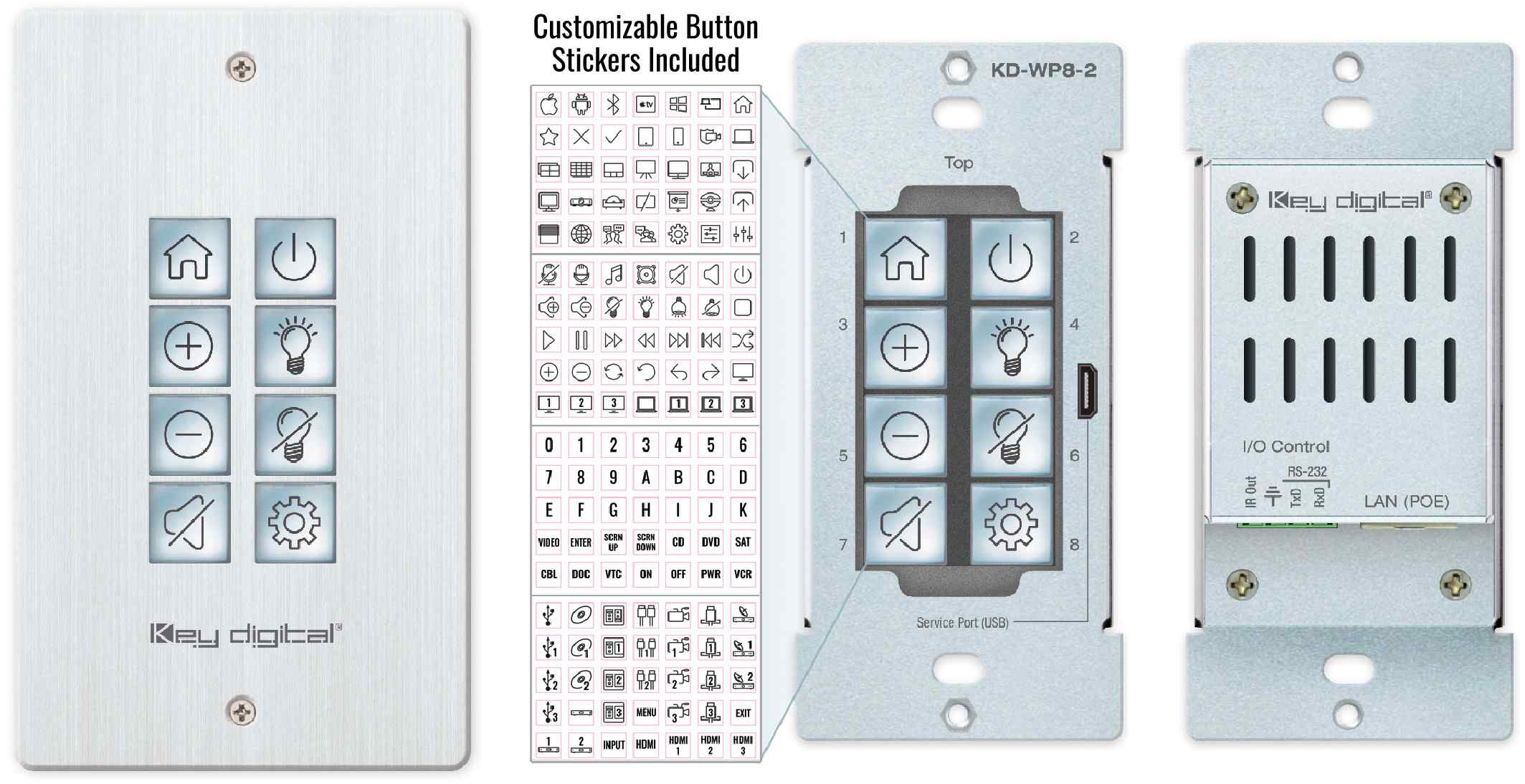

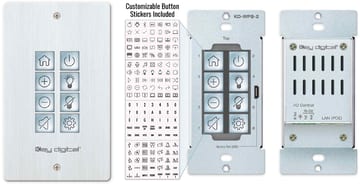

KD-WP8-2
8 Button Programmable IP, RS-232, IR Control Keypad
A high-quality wall plate transmitter for HDMI and Display Port signals over long distances using CAT6, with HDBaseT technology.

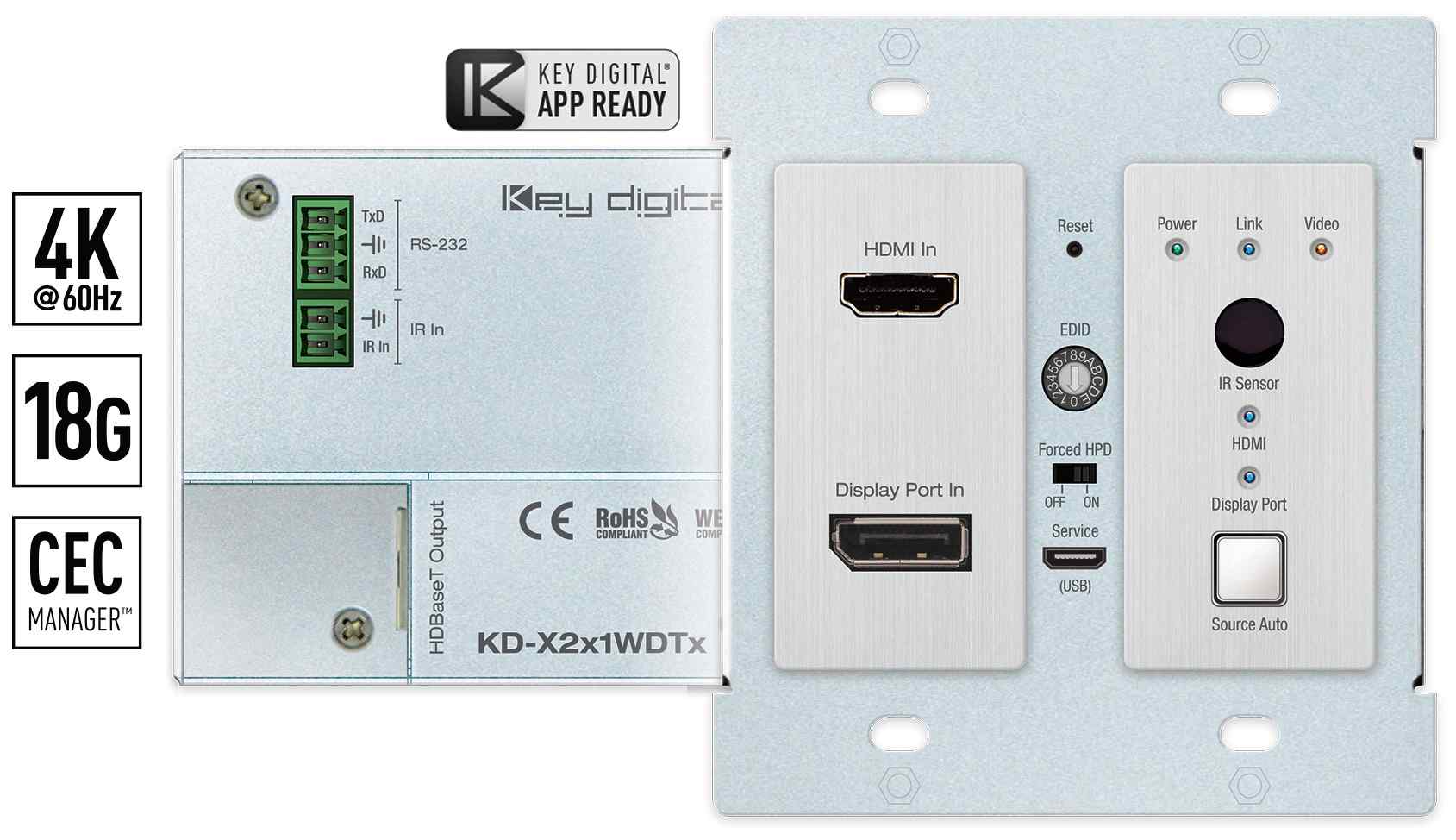

KD-X2x1WDTx
2x1 4K/18G 40m HDBT PoH Wall Plate Switcher with HDMI & DisplayPort, IR, RS-232 (Tx Only)
A powerful audio amplifier for superior sound quality and performance
KD-AMP220
2 Ch 20 WPC @ 8 Ohm, 40 WPC @ 4 Ohm, Compact Digital Amplifier
A reliable HDBaseT receiver designed for HDMI signals over long distances, ideal for Unified Communications and Collaboration (UCC) solutions."

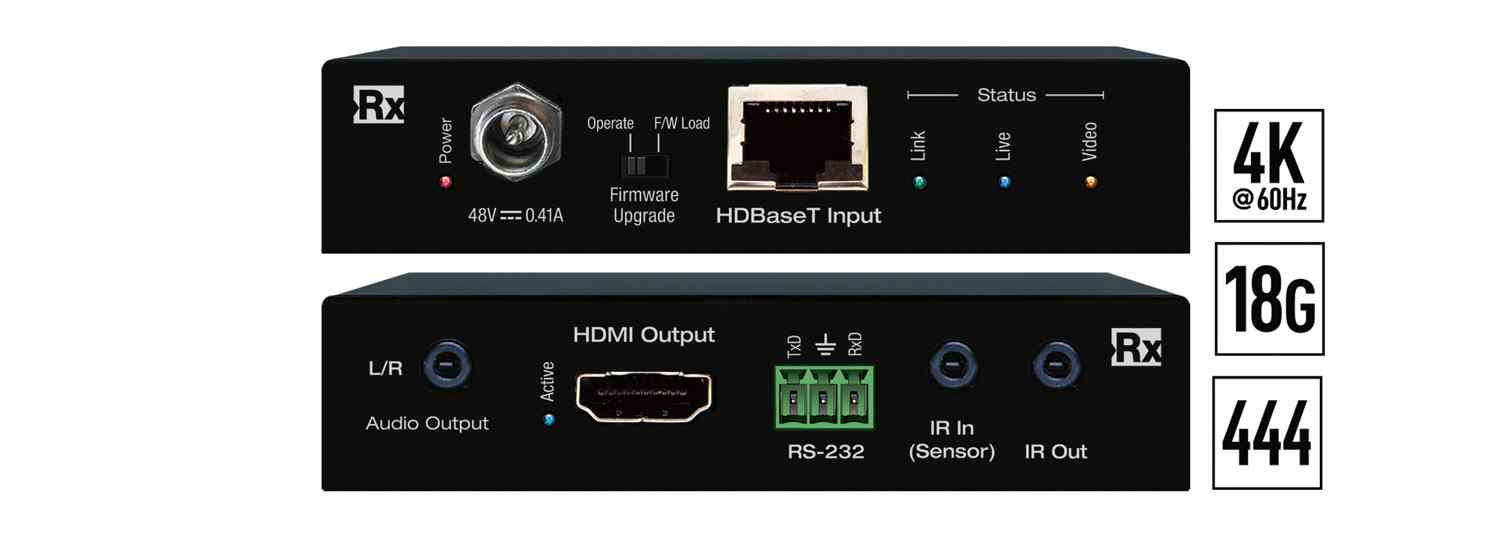

KD-X40MRx
4K/18G HDBT Rx (40m) with L/R Audio De-Embed, IR, RS-232 (Rx Only)
Key Digital Sales Team is Available to Answer Your Questions.
Get help with a system design or a project. Find a Key Digital distributor or a system integrator.

Contact  sales@keydigital.com  for more information.
