Video Walls Mosaic Video Walls
Mosaic video walls
mosaic design Use for digital ads, landscapes, and more
TECHORATE AND CAPTIVATE YOUR SPACE AS NEVER BEFORE. CREATE CUSTOMIZABLE MOSAIC VIDEO WALLS THAT CAN BE SCALED TO FIT ANY SIZE INSTALLATION OR PROJECT.
• Attention grabbing video wall creation
• Use for digital ads, landscapes, and more
• Cost-effective modular solution
• Scalable system fits your needs exactly
• Turn-Key system pre-configured by Key Digital Engineers
• Elegant iOS based control interface options

System:

  • 4K AV over IP backbone

  • Managed 1G network switch with PoE connectivity hub

  • Use KD-IP1022ENC encoder per source, KD-IP1022DEC decoder per display

  • Decoder processes and extracts the mapped image at each display

  • Easily add encoders or decoders, mosaic and standard video wall, or stand-alone displays

  • “Pinwheel”, “Bricks” and other templates are selectable during pre-configuration stages, or customer layouts may be created.

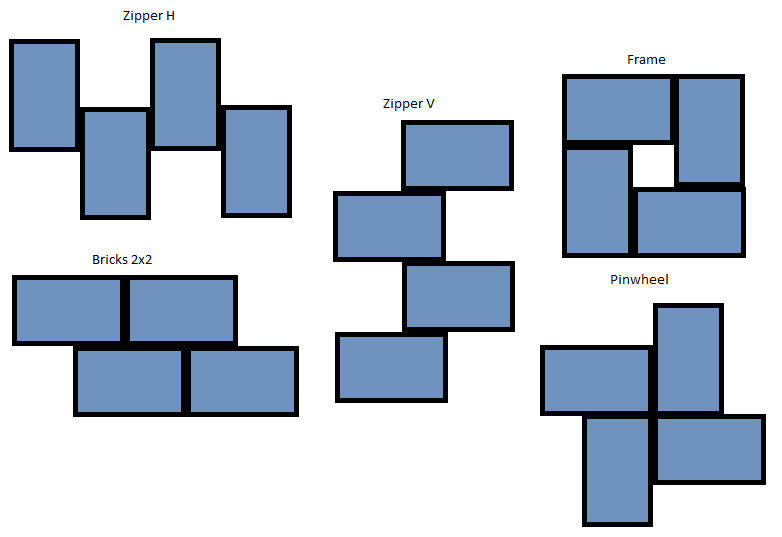

Mosaic Presets:

mosaic design Use KD-IP1022ENC encoder per source, KD-IP1022DEC decoder per display

Video:

  • Video or images displayed in full across entire monitor array

  • Content is dynamically scaled to fill the entire display area

  • Mount displays horizontally and/or vertically

  • Displays may be spaced with gaps between them

Operation:

  • Unique source selection for each mosaic video wall via FREE KD-App

  • Open API for integration with professional control systems

System Example

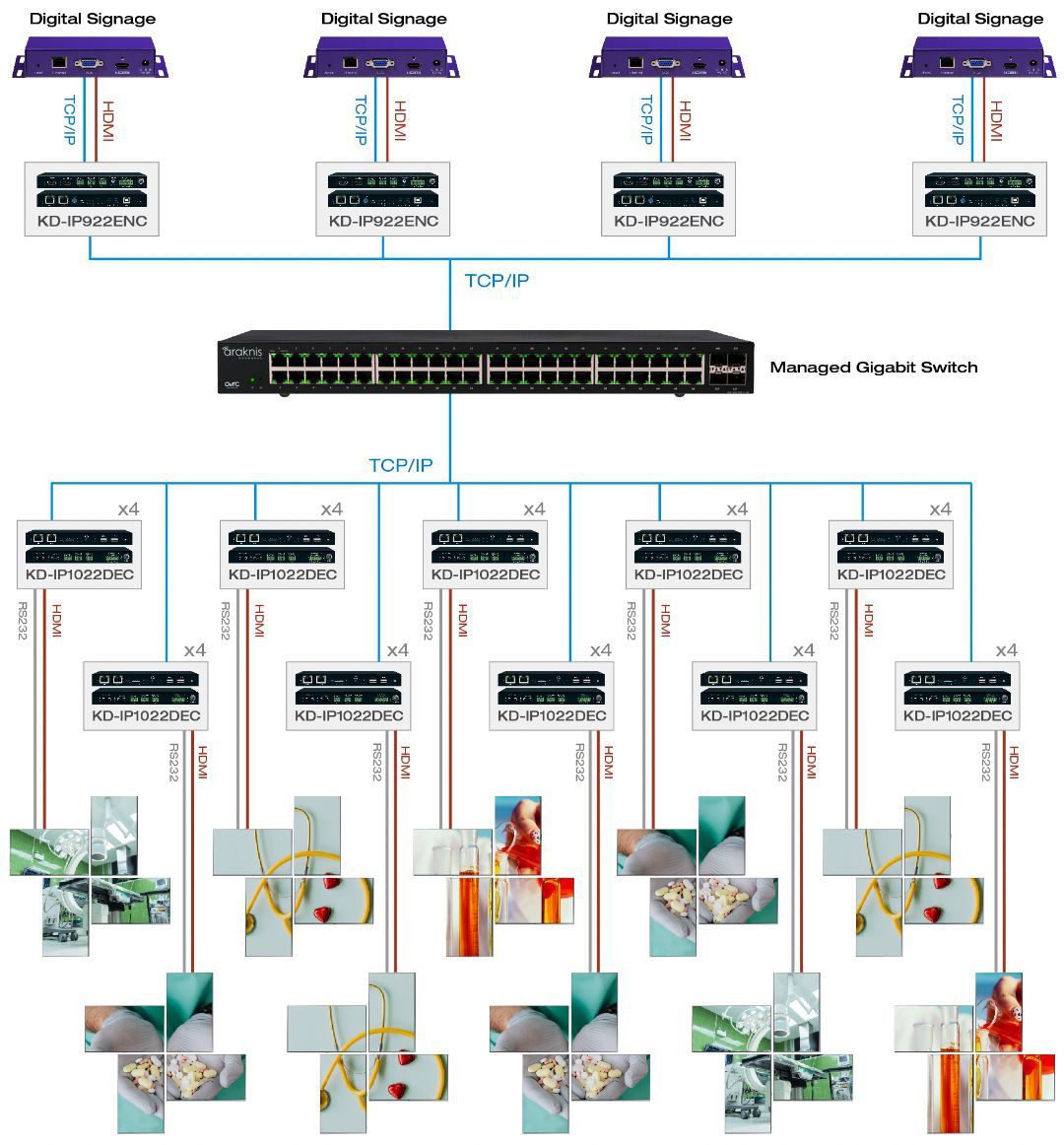

System Example - Digital Signage Application
Digital signage application with 4 unique contents displayed across 10 mosaic wall

Digital signage application with 4 unique contents displayed across 10 mosaic video walls. All video sources feed HDMI content to an encoder, and each encoder is connected into the network switch via CAT6 cabling. Each display receives the processed content via HDMI from a connected decoder which is also connected to the network switch via CAT6.

Mosaic Video Walls Examples

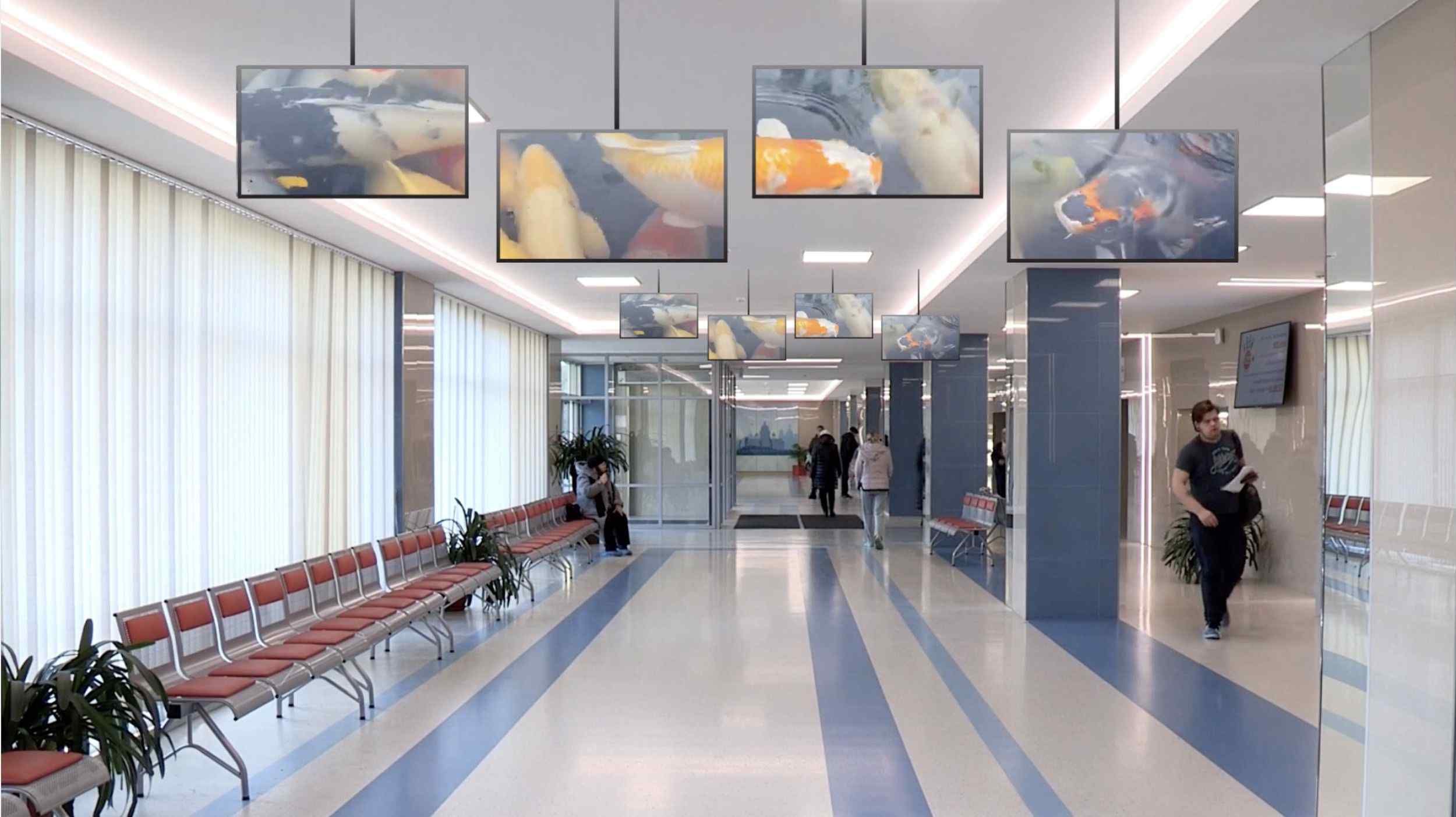

Mosaic design use for hospital that is Cost-effective modular solution

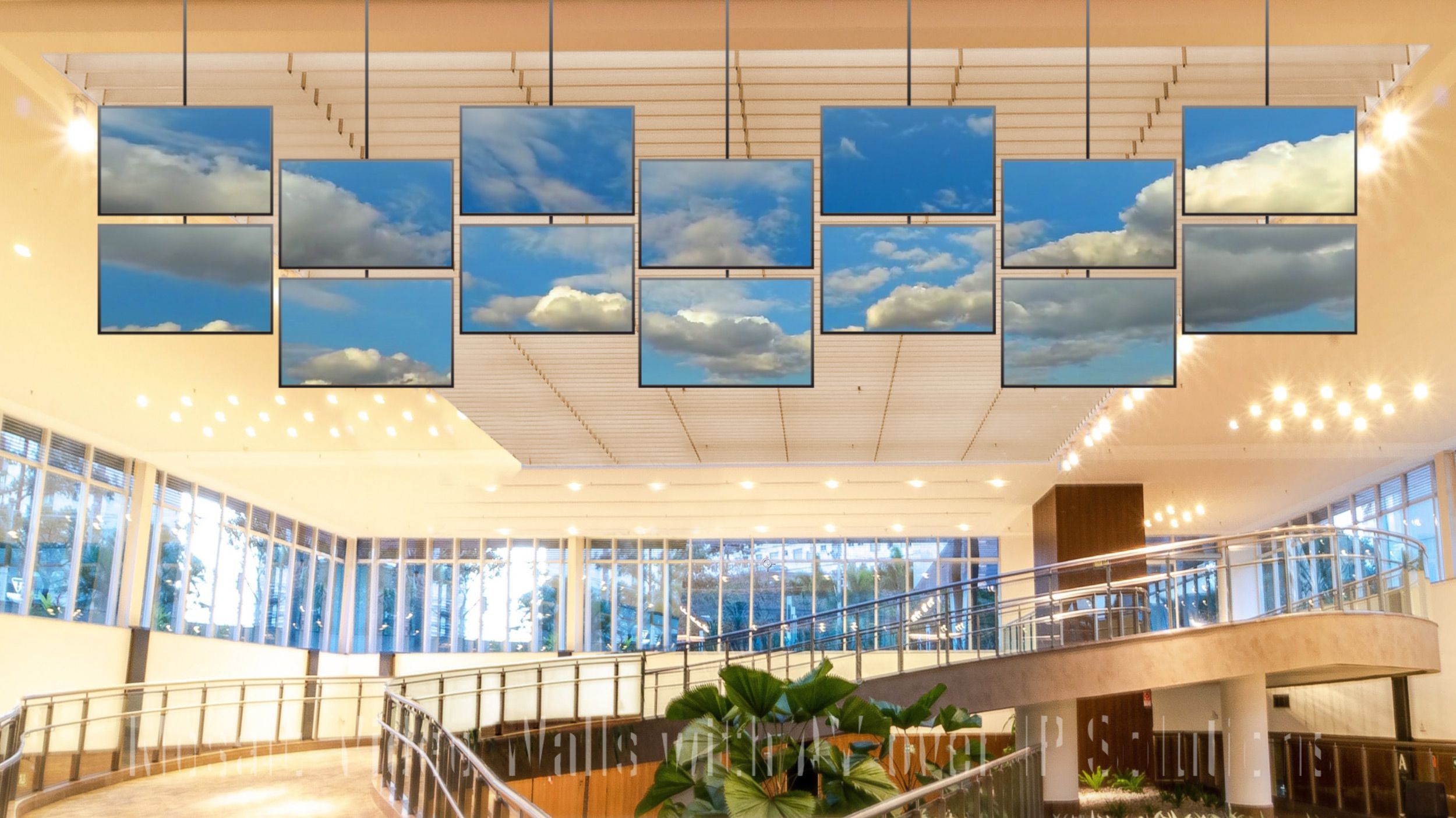

Mosaic design use for lobby Scalable system fits your needs exactly

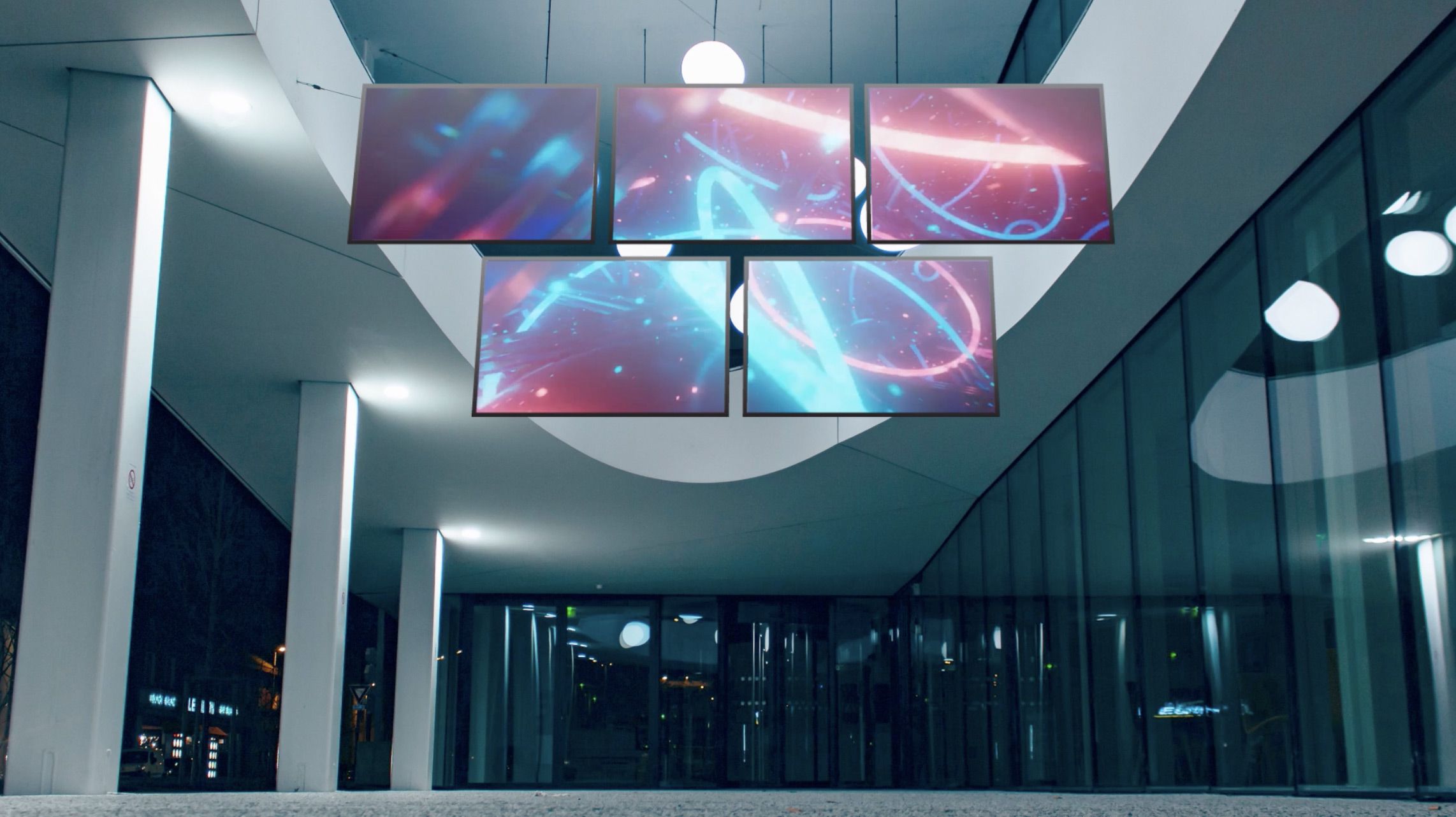

Mosaic design use for bussiness center Turn-Key system pre-configured by Key Digital Engineers

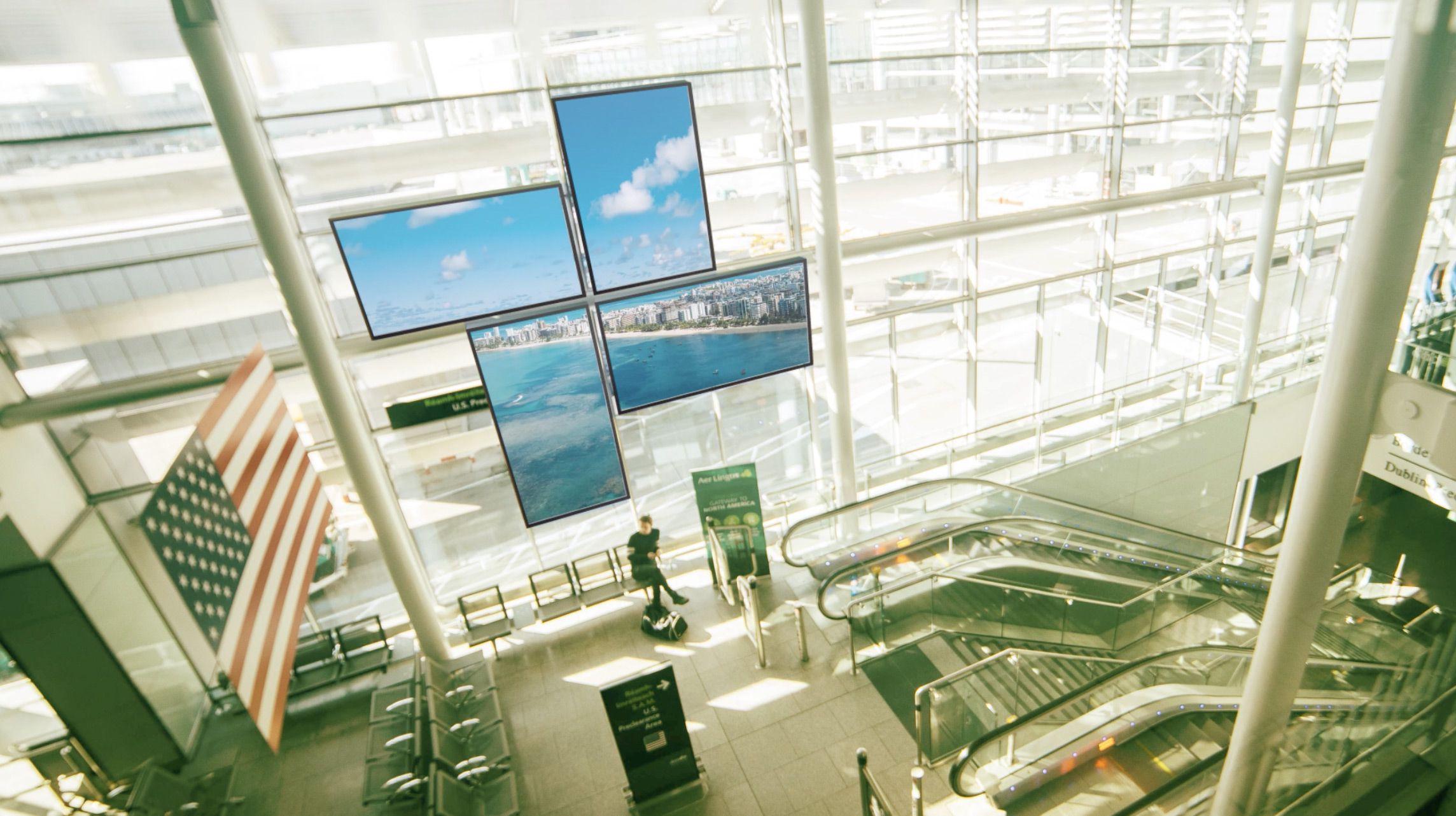

Mosaic wall use airport for Attention grabbing video wall creation

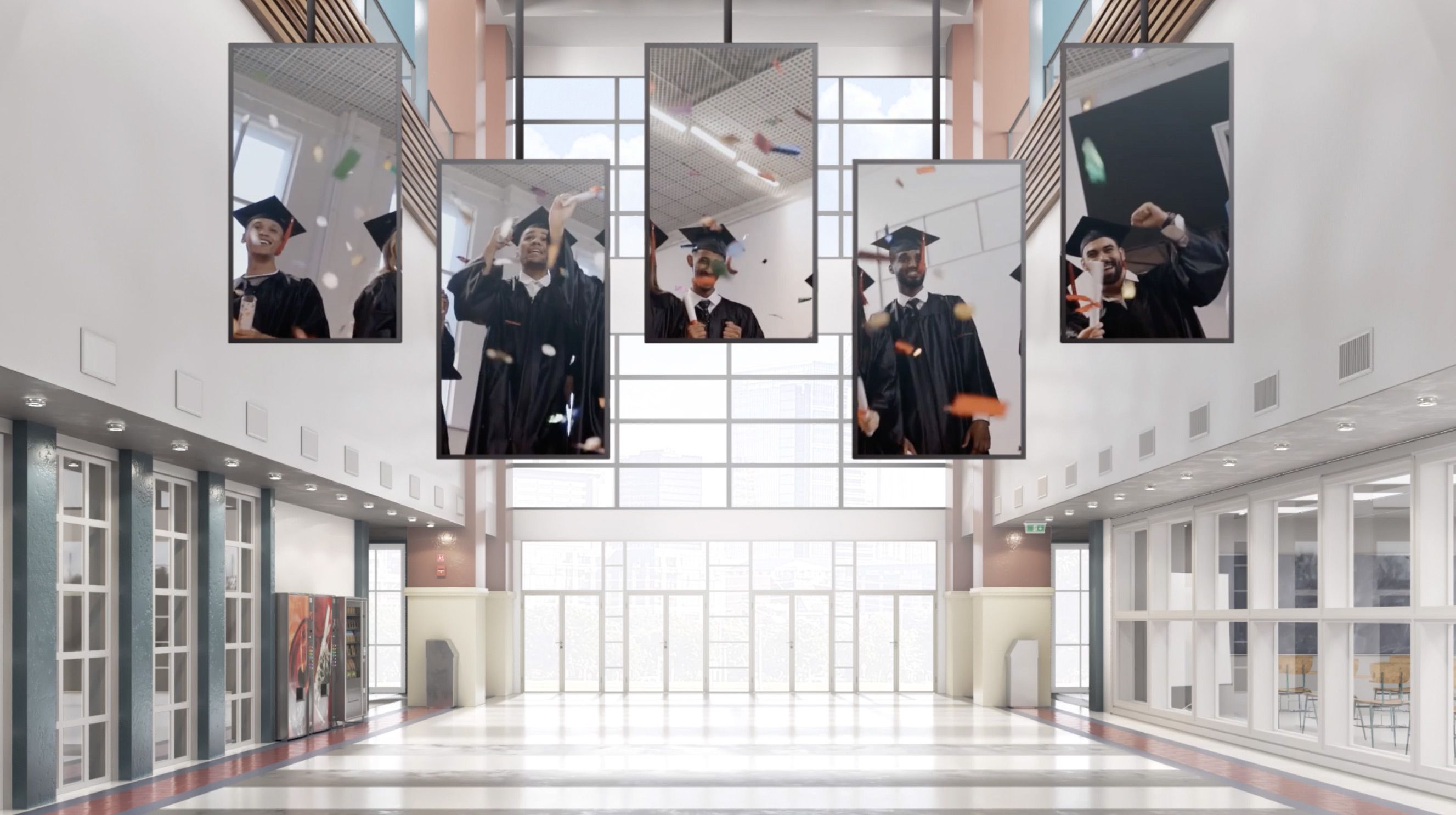

Mosaic wall use collage that is Digital signage application with 4 unique contents displayed

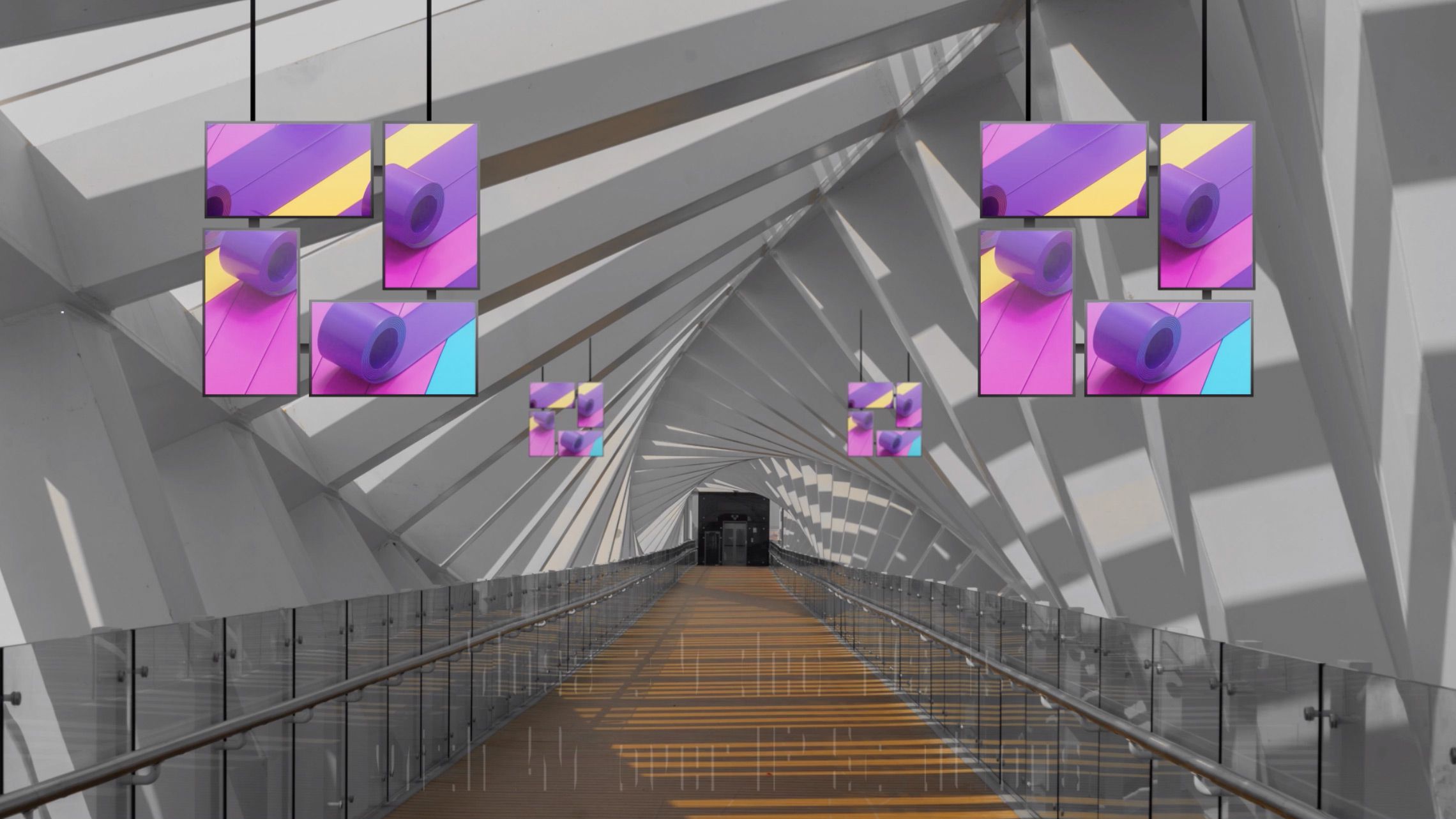

Mosaic wall walkway that is connected into the network switch via CAT6 cabling

featured products

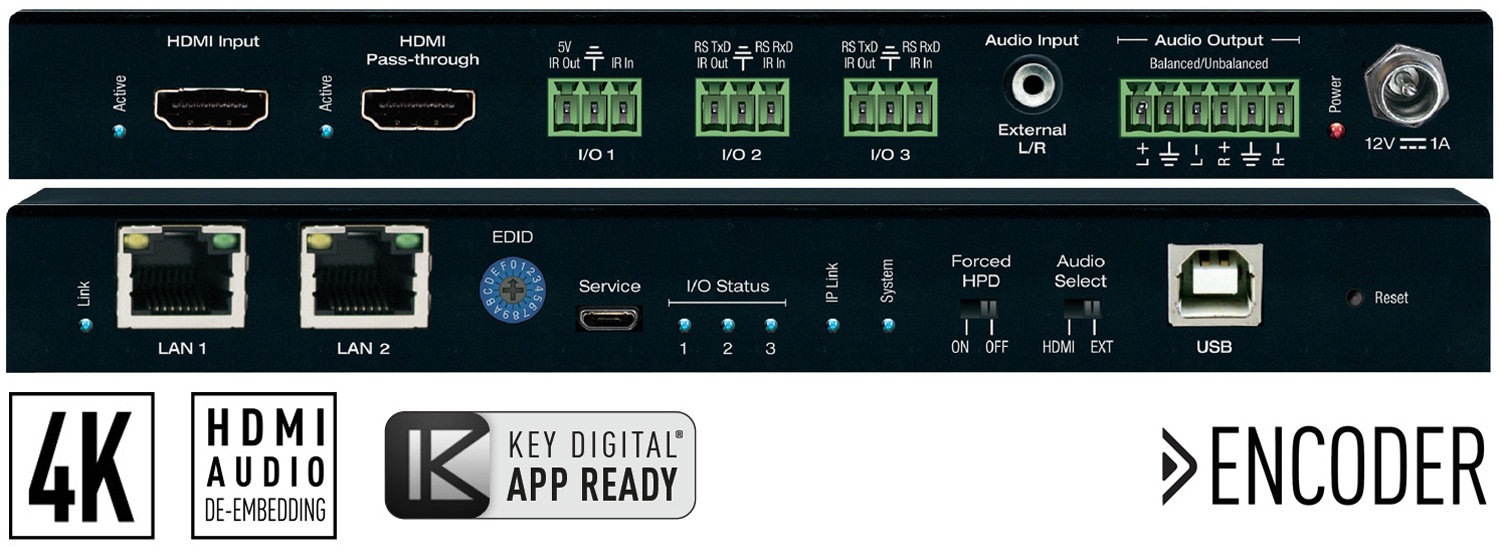

KD-IP1022ENC
4K UHD AV over IP Encoder with Independent Video, Audio, KVM/USB Routing. Audio De-Embed with Volume, Delay, and Bass/Mid/Treble Control, 2 port PoE LAN Switch, HDMI Pass-through, 3 port IR, RS-232, Trigger Master Controller / Control Gateway.
KD-IP1022DEC
4K UHD AV over IP Decoder with Independent Video, Audio, KVM/USB Routing, Video Wall and Mosaic Video Wall Processing. Audio De-Embed with Volume, Delay, and Bass/Mid/Treble Control, 2 port PoE LAN Switch, Local HDMI In, 3 port IR, RS-232, Trigger Master Controller / Control Gateway.

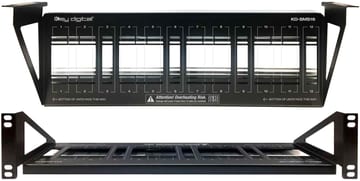

KD-SMS16
Rack Mount Shelf for Most Small Key Digital Products
KD-App
Access and Control Key Digital® App Ready products via TCP/IP directly with Key Digital® iOS App. FREE Download from the App Store.
Customer Case StudIES

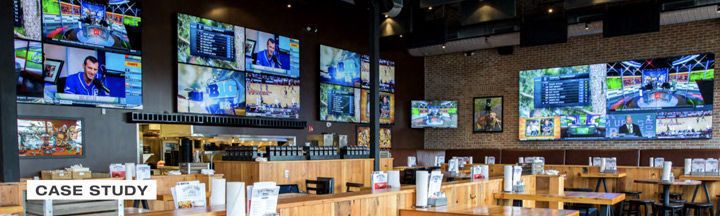

Mosaic design for double dog bar restaurant Digital signage application with 4 unique contents displayed across 10 mosaic video walls.



Nashville's Ultimate Sports Bar Experience Achieved via AV over IP Solutions from Key Digital

view case study

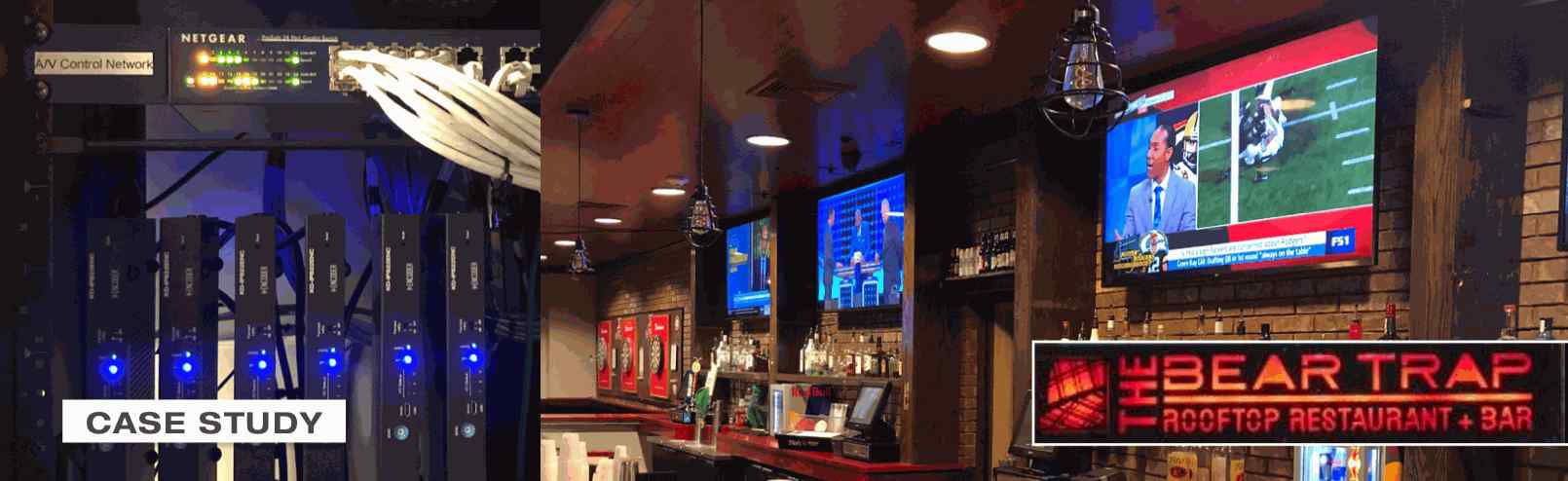

Mosaic design for bear trap restaurant where Video or images displayed in full across entire monitor array.



Key Digital AV over IP System Creates Winning Bar/Restaurant Atmosphere in Tuscaloosa

view case study

Key Digital Sales Team is Available to Answer Your Questions.
Get help with a system design or a project. Find a Key Digital distributor or a system integrator.

Contact  sales@keydigital.com  for more information.
