House of Worship

Sanctuary Systems

User-friendly tech that enhances and amplifies the church experience. Video and audio capture in one, 4K HDMI in and out, microphone input with phantom power, and low-latency USB 3.0 capture.

See what's inside
What's Inside

Built for streaming and worship

Setup and streaming made easy with less gear. Compatible with all streaming sites and recording software — no drivers needed.

System

  • HDMI switcher keeps you connected — no wasted time during setup
  • Capture USB video and audio with no driver installation
  • Power displays on/off with CEC control over HDMI
  • Connect microphone or external music source and set the mix level
  • Setup and control with KDCam on Windows or Mac

Video

  • 4K 60fps with HDR10 and Dolby Vision HDMI input and output
  • 1080p 60fps USB capture
  • 2 HDMI inputs, push-button source select or KDCam control
  • EDID handshake selection ensures perfect video and audio formats

Audio

  • Selectable microphone (XLR) or L/R (3.5mm) external audio inputs
  • 48V phantom power for professional condenser microphones
  • External audio output for feeding amplifiers and audio systems
  • HDMI audio output CEC volume for surround systems

Operation

  • iPad controls with Compass Control Pro app
  • Source, display, and view-mode controls from one or multiple iPads
  • Front-panel controls

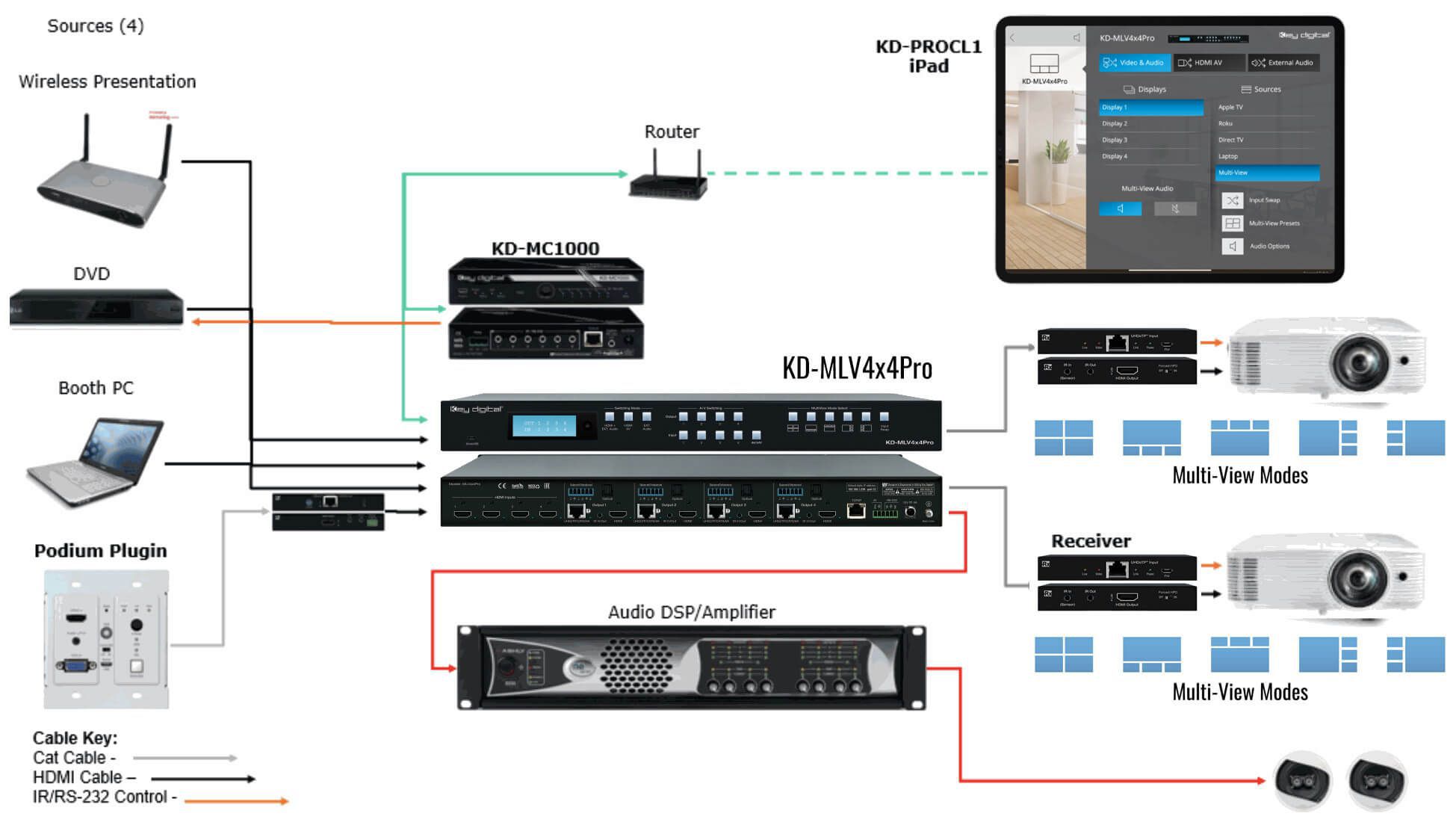

Dual Display Sanctuary System

Dual display sanctuary system example with podium plugin, booth PC, and wireless casting

A dual-projector system sends content from podium plugin, booth PC, wireless casting, and more. Display in full-screen, quad-screen, or custom layouts.

Featured Products

What's in the rack

KD-MLV4x4Pro multi-view tiling processor matrix
KD-MLV4x4Pro

Multi-View Processor Matrix

Multi-view tiling processor matrix with 4 HDMI inputs and 4 outputs — combine sources into full-screen, quad-screen, or custom layouts.

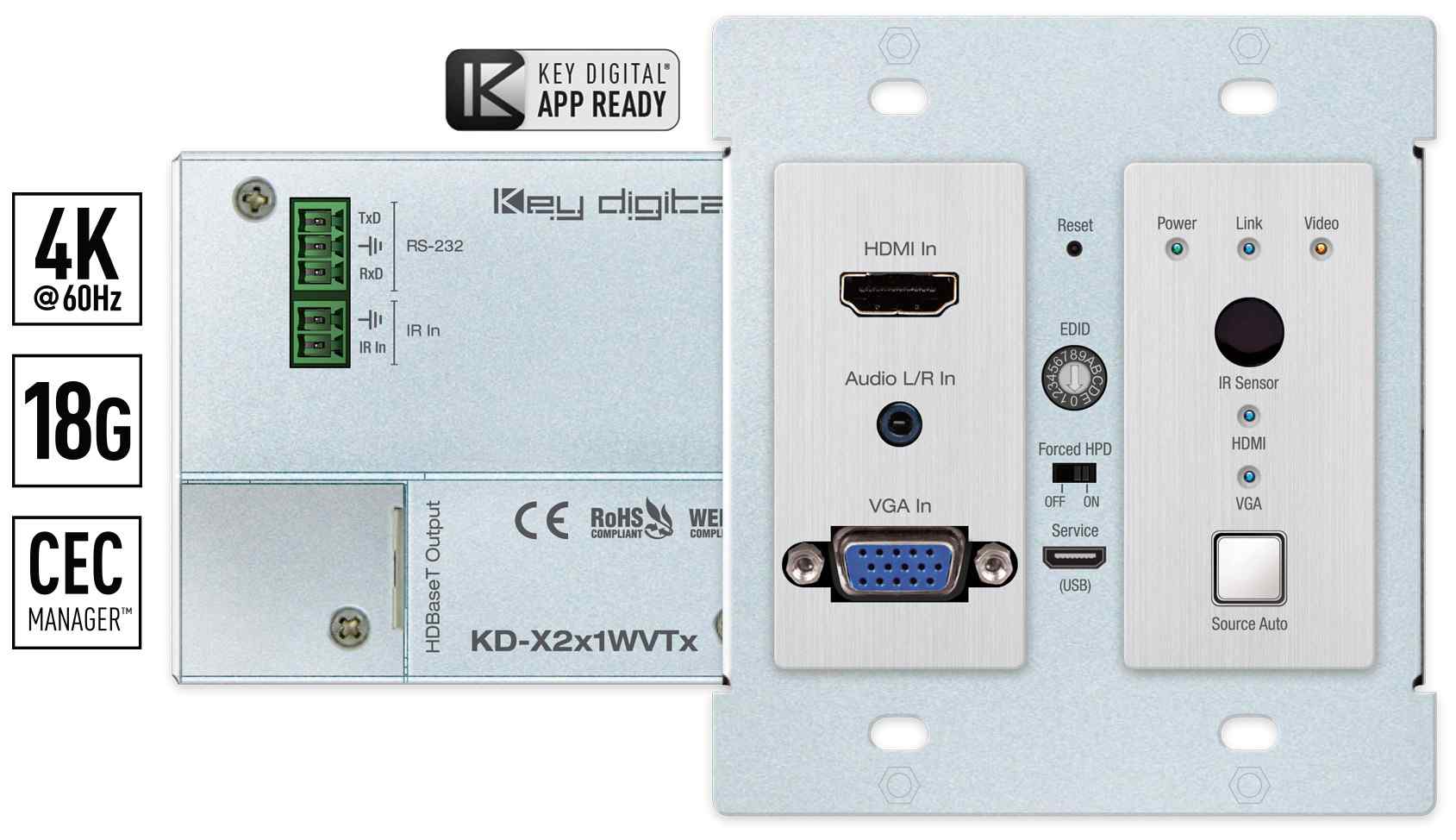

KD-X2x1WVTx HDBaseT wall plate transmitter
KD-X2x1WVTx

HDBT Wall Plate Switcher

2x1 4K/18G 40m HDBaseT PoH dual-gang wall plate switcher with HDMI and VGA inputs, IR, RS-232 (Tx only).

KD-X40MRx HDBaseT receiver
KD-X40MRx

HDBaseT Receiver

4K/18G HDBaseT receiver (40m) with L/R audio de-embed, IR, RS-232 (Rx only).

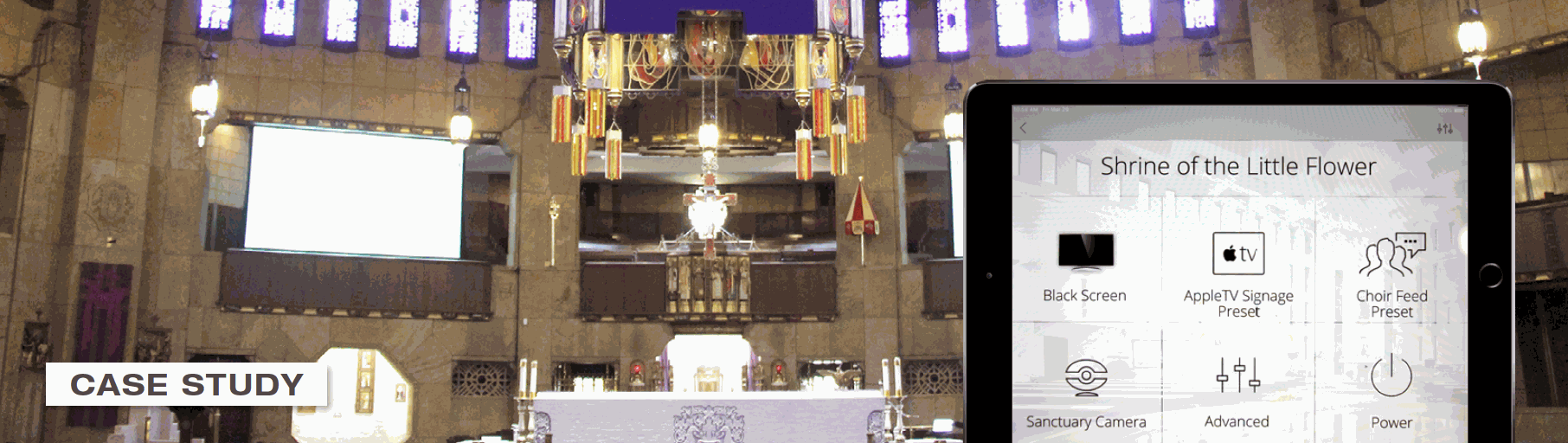

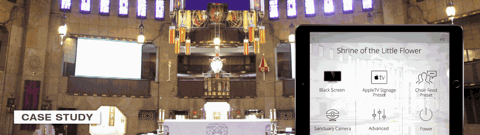

Shrine of the Little Flower - Key Digital case study
Case Study

National Shrine benefits enhanced with Key Digital's powerful AV over IP system and Compass Control Pro

The Shrine of the Little Flower deployed Key Digital AV over IP and Compass Control Pro to elevate the worship experience.

View the case study
Talk to Sales

Designing a sanctuary system?

The Key Digital sales team is available to help with system design, find a distributor, or connect you with a certified integrator.
