Government Solution

Courtroom Communications

An advanced courtroom solution — a hybrid conferencing system that integrates all participants. Add remote attendees via popular video conferencing software, with user-friendly management of public and private communications.

See what's inside
What's Inside

Built for hybrid hearings

A turn-key, pre-configured plug-and-play system requiring only three CAT6 cables per participant. Confidential, scalable, and easy to operate.

System

  • Key Digital AVoIP foundation
  • Three CAT6 wires to each participant
  • Turn-key, pre-configured, plug-and-play system
  • Minimal training required
  • Easily scaled for your needs

Video

  • Local system and video conference modes
  • 1080p PTZ camera at each station
  • PC content share
  • Full screen of participant or content

Audio

  • 2-way audio
  • Public and private communications
  • Voice via USB microphones
  • Display speakers for audio

Operation

  • Request button at each participant
  • Operator uses PC control software
  • Route AV of each participant to single or all participants
  • PTZ camera control
Watch It Work

Solution Video

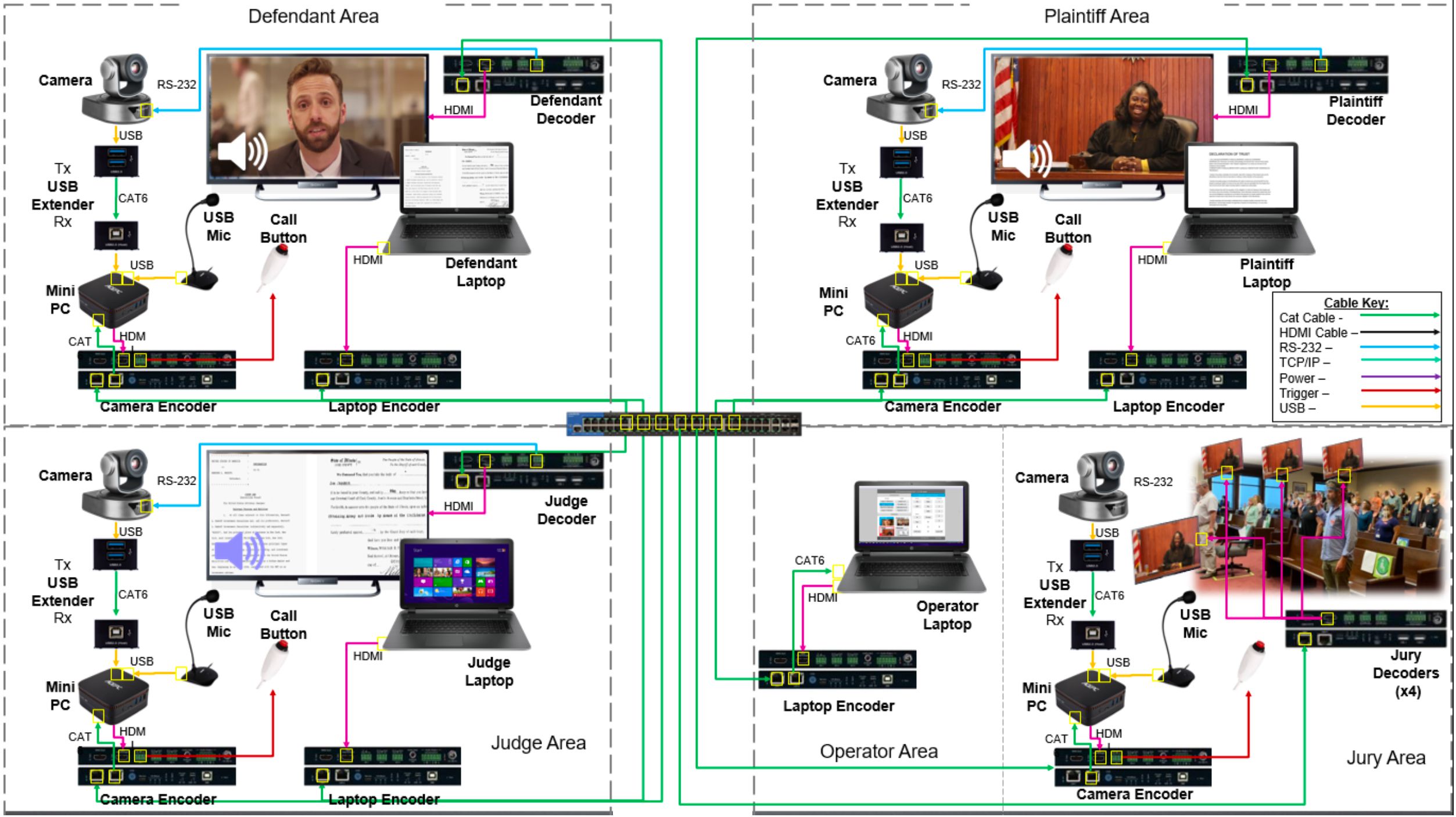

Integrated Courtroom with 4 Zones

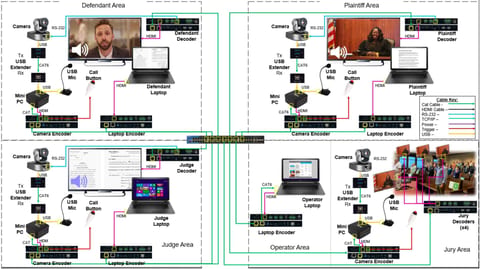

Government hybrid meeting system example - integrated courtroom with 4 zones

A scalable hybrid system designed for courtrooms with up to four participant zones. Pre-configured by Key Digital — operators control the entire system from a single PC.

Featured Products

What's in the rack

KD-IP1022ENC 4K UHD AV over IP encoder
KD-IP1022ENC

4K AV over IP Encoder

4K UHD AV over IP encoder with independent video, audio, KVM/USB routing. Audio de-embed with volume, delay, and bass/mid/treble control. PoE LAN switch, HDMI pass-through.

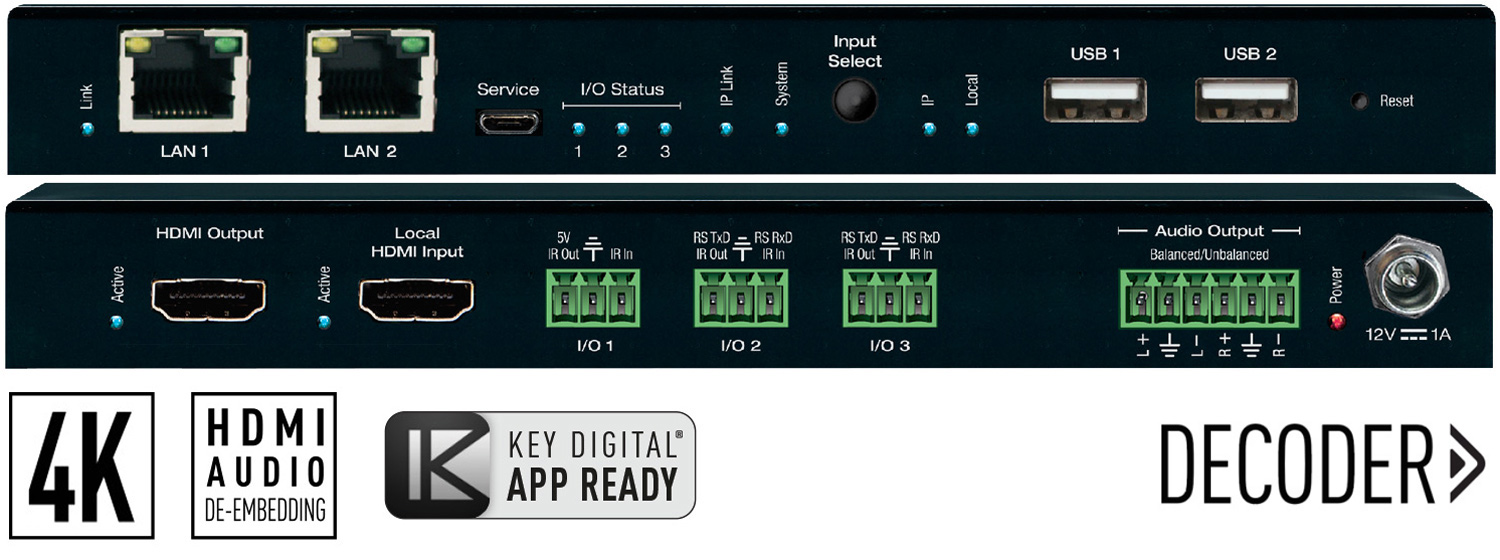

KD-IP1022DEC 4K UHD AV over IP decoder
KD-IP1022DEC

4K AV over IP Decoder

4K UHD AV over IP decoder with independent video, audio, KVM/USB routing and video wall processing. Audio de-embed, PoE LAN switch, local HDMI in.

KD-CAMUSB PTZ USB camera
KD-CAMUSB

PTZ USB Camera

PTZ USB camera with IR and RS-232 Visca control — used at each participant station.

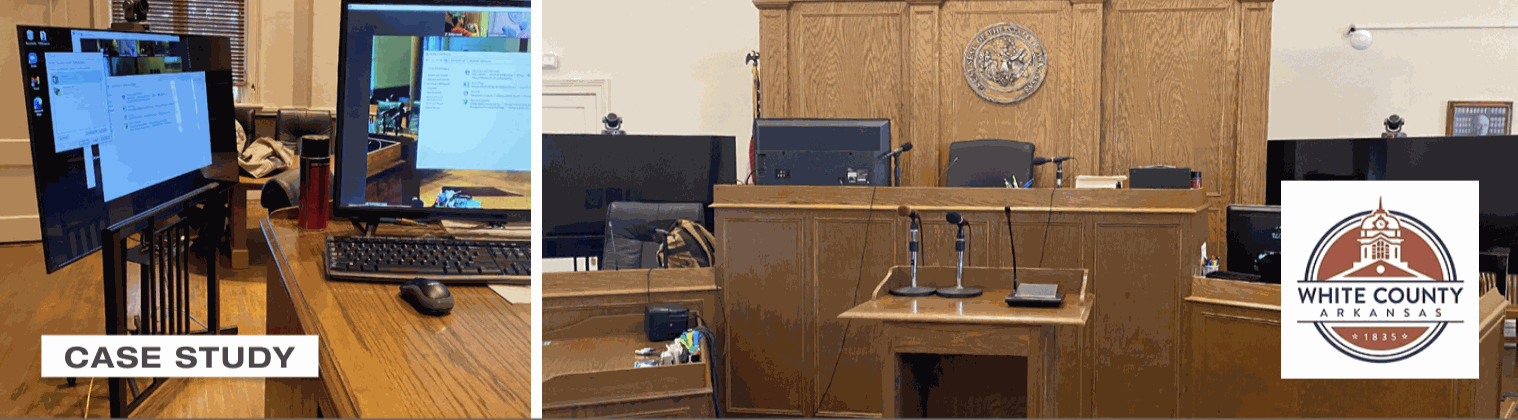

White County Courthouse - Key Digital case study
Case Study

Key Digital provides a smooth transition to virtual activities for an Arkansas Courthouse

The White County Courthouse in Arkansas deployed Key Digital AV over IP to bring hybrid court proceedings online.

View the case study
Talk to Sales

Planning a hybrid courtroom?

The Key Digital sales team is available to help with system design, find a distributor, or connect you with a certified integrator.

Email: sales@keydigital.com Phone: +1 (914) 667-9700 Opt 2
