AV over IP

Key Digital AV over IP Solutions

Key Digital’s AV over IP Solutions create expandable AV over IP systems that can be scaled to fit any commercial installation.

Browse AV over IP products
Product Line

4K AV over IP Encoders, Decoders, Transmitters & Receivers

Our systems can be utilized in large enterprise installations to mid-to-large-size residential projects. Key Digital’s AV over IP systems can distribute control signals in addition to video and audio to create fully integrated and controllable networked systems.

Key Digital AV over IP systems offer an unparalleled feature set enabling a variety of system applications: 4K encoders and decoders designed with video wall builder, KVM, and simple expansion method beyond 48 port network switches; support up to 10 vertical and 10 horizontal displays for an impressive maximum of a 100-panel video wall.

  • KD-IP922ENC-II — 4K AV over IP System Encoder with PoE, HDMI Pass-through, Open API Control Ports, Analog and Digital Audio De-Embedding, and Pre-Amp
  • KD-IP922DEC-II — 4K AV over IP System Decoder with PoE, Open API Control Ports, Analog Audio De-Embedding, and Pre-Amp

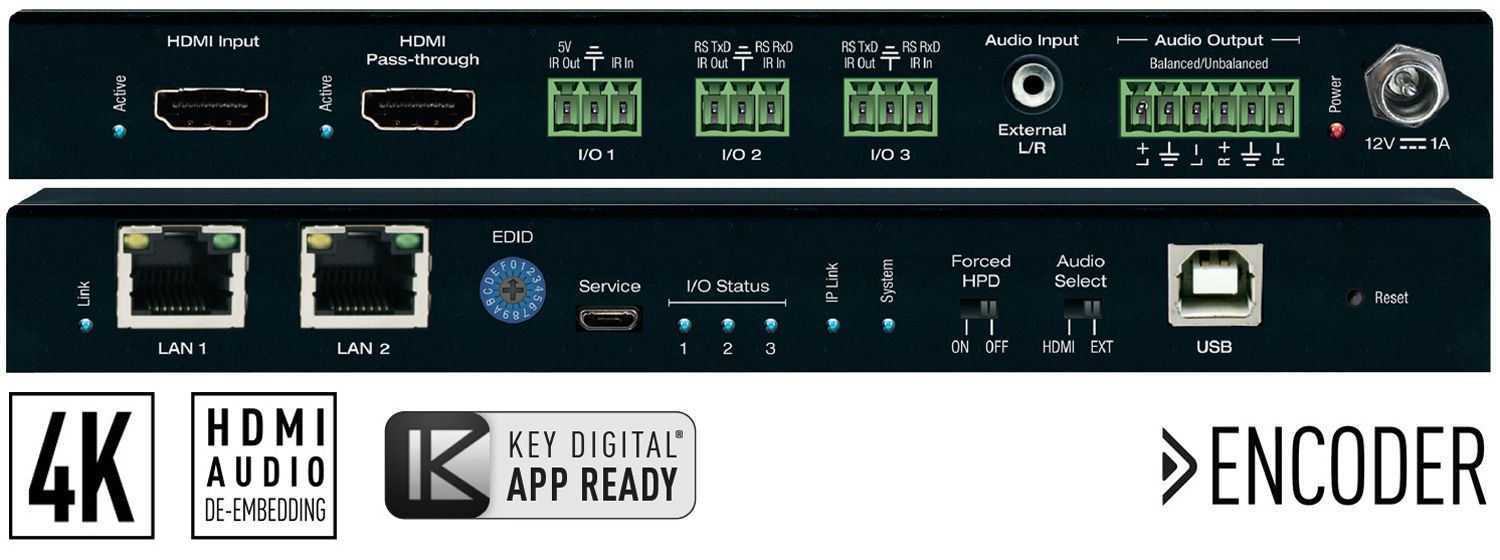

  • KD-IP1022ENC-II — 4K AV over IP System Encoder with PoE, HDMI Pass-through, Audio De-Embedding and Pre-Amp, Mosaic Video Walls - COMING SOON!
  • KD-IP1022DEC-II — 4K AV over IP System Encoder with PoE, Audio De-Embedding and Pre-Amp, Mosaic Video Walls - COMING SOON!
  • KD-IP1080Tx — HDMI over IP with POE (Tx) Transmitter with Redundant Power Connection, HDMI Pass-through
  • KD-IP1080Rx — HDMI over IP with POE (Rx) Receiver with Redundant Power Connection
Usage Modes

One platform, eight system applications

  • Matrix Switching with Audio
  • Video Matrixing
  • Video Distribution
  • Video Switching
  • Video Wall Controller
  • Digital Video Extention
  • KVM Matrixing
  • Master Controller
Pre-Configured Shipping

Five steps from BOM to delivery

Key Digital pre-configures, mounts, verifies, and ships complete AV over IP systems — including (optionally) the network switch — so the on-site team plugs in and goes live.

Step 1

System Design and BOM

Complete the System Design Questionnaire and receive your optional System Design diagram with a Key Digital Bill of Materials based on your customer’s system requirements.

Step 2

Pre-Configuration

Pre-configuration of all Encoders and Decoders according to your specifications. Complete our AVoIP Configuration Questionnaire and submit it with P.O. to the Key Digital Distributor/Sales Rep.

Step 3

Shelf Mounting

Mounting of desired units using locking washers on KD-SMS16 rack shelving system for a clean and installer-friendly experience.

Step 4

System Verification

In-depth system verification in Key Digital’s lab, including matrix switching, video wall functionality, and system control.

Step 5

Network Switch Configuration

Verify Your Network Switch Compatibility and (optional) ship your network switch for configuration to Key Digital HQ, Attn: AVoIP Network Switch for Configuration.

21x100 AV over IP system in a casino
Customer Install

21x100 AV over IP System for a large casino project

21x100 AV over IP System for a large casino project. Fully controllable via Compass Control® Pro & Key Digital KD-MC1000.

Integrator: Iconic Solutions GroupTony Wichterman.

14x56 AV over IP system in a restaurant
Customer Install

14x56 AV over IP System for a large restaurant

14x56 AV over IP System for a large restaurant. Fully integrated iOS-based control system. Integrated and controlled with Key Digital App - KD-App. Already a second install for this restaurant group!

Named contact: Donnie McVicker.

Airport digital signage AV over IP system
Customer Install

30x18 AV over IP System for a Large Digital Signage Airport Offices

30x18 AV over IP System for a Large Digital Signage Airport Offices. Fully controllable via Compass Control® Pro. Multi-Room Applications with Video Walls.

Control & Management

AV over IP System Configuration, Control & Management

Key Digital AV over IP systems can be configured in several ways, offering integrators flexibility in how the system is built and managed, and how the end-user interacts with it.

KDMS Pro Windows software
KDMS™ Pro

Key Digital® Management Software Pro

Tailored for Professional A/V Integrators. Build virtual matrix systems, configure and manage video walls, manage video and audio routing, and control networked Key Digital devices and displays. Platform: PC.

Learn More
KD-App on iPad
KD-App

Key Digital® App for iOS

Access & Control Enterprise AV™ over IP systems directly with the App with full switching capabilities. Allows integrators and end-users to assign sources/displays. iOS App with Demo Mode: demo system can be used as a customer demo and sales tool. Platform: iOS.

Learn More
Compass Control Pro workspace
Compass Control® Pro

Compass Control® Pro + Compass Navigator™

Fully integrated iOS-based control system with customized iOS touch screen interface. Create and build custom systems with Compass Navigator® PC software, allowing for remote system upgrades & troubleshooting. Instantly integrate third party components from Compass Alliance™ Partners to create an entire plug and play system with rich-user feedback. Platform: Controllers - iOS; Compass Navigator™ - PC.

Learn More
AV over IP Technology Partners

Verified network switch partners

Key Digital AV over IP systems work with a wide variety of multicast / IGMP-capable managed network switches from leading partner brands. Configuration guides for each are included in our Verified Network Switches setup document.

See the List of Verified/Supported Network Switches & Setup Instructions (PDF) for the up-to-date list and step-by-step configuration.

  • Araknis
  • Cisco
  • D-Link
  • EnGenius
  • Linksys
  • Luxul
  • Netgear
  • Niveo
  • Pakedge
  • Signamax
  • TitanNetworx
