AV Distribution
AV Distribution System
Use friendly commercial av systems that fits in bar & restaurant perfectly.
USER-FRIENDLY AV SYSTEM THAT FITS YOUR BAR & RESTAURANT PERFECTLY
• Single button press perfectly orchestrates your entire system
• AV over IP system pre-configured by Key Digital®
• Route any video source to any display, any audio source to any audio zone
• Video Walls controlled with a drag of a finger
• Free iOS app for service staff
• Integrates with lighting control, security/surveillance systems, and more
• Only a single CAT 6 to each video source & display

System:

  • Fits your system needs perfectly

  • Customizable Compass Control GUI

  • Integrates audio, video, lighting, security, HVAC, more

  • Network switch backbone with a single CAT6 to each display

  • Mix & match compatible KD AV over IP products for optimal features & price-points

Video:

  • Route source to any display

  • One encoder per source

  • One decoder per display

  • Integrate Digital Signage players to generate ad revenue

  • Add video wall for wow factor

Audio:

  • Audio from any video source, music sources, more

  • Integrates with leading audio system manufacturers

  • Route audio sources, control volume for zones

Operation:

  • Compass Control® Pro control system integrates Key Digital products plus Compass Alliance™ partner systems

  • FREE KD-App controls video routing and display power

  • FREE KD Management System PC control software available

System Example

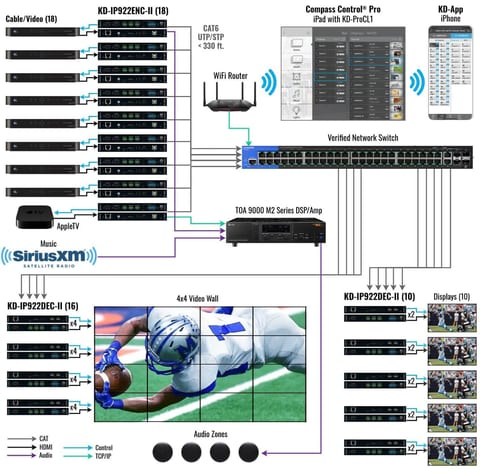

System Example - Integrated Bar/Restaurant System using AV over IP Solutions
Integrated Bar & Restaurant using av Systems Example over ip solution

10 standalone displays and one 4x4 video wall (16 panels) can view any satellite/cable box, apple TV, or any other HDMI sources in any combination at any time. The video wall is easily configured with a single button press to be divided into 1 large image, 4 2x2 images, or 1 3x3 image with 7 standalone images. The entire system, including the audio router / DSP is controlled through Compass Control Pro iPad app.

featured products
Key Digital av over ip encoder front and rear view
KD-IP922ENC-II
4K AV over IP System Encoder with PoE, HDMI Pass-through, Open API Control Ports, Analog and Digital Audio De-Embedding and Pre-Amp
KD-IP922DEC-II
4K AV over IP System Decoder with PoE, Open API Control Ports, Analog Audio De-Embedding and Pre-Amp
Key digital rack shelf Front and Aerial View
KD-SMS16
Rack Mount Shelf for Most Small Key Digital Products
Key Digital App main image
KD-App
Access and Control Key Digital® App Ready products via TCP/IP directly with Key Digital® iOS App. FREE Download from the App Store.
Key Digital Enterprise Software License for Compass Control Pro
KD-PROCL1
Compass Control® Pro - Enterprise Software License, 1 Unit
Customer Case StudIES

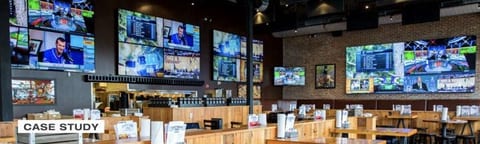

Key Digital av over ip systems that's now the driving force behind Nashville's ultimate sports bar sensarion



Nashville's Ultimate Sports Bar Experience Achieved via AV over IP Solutions from Key Digital

view case study

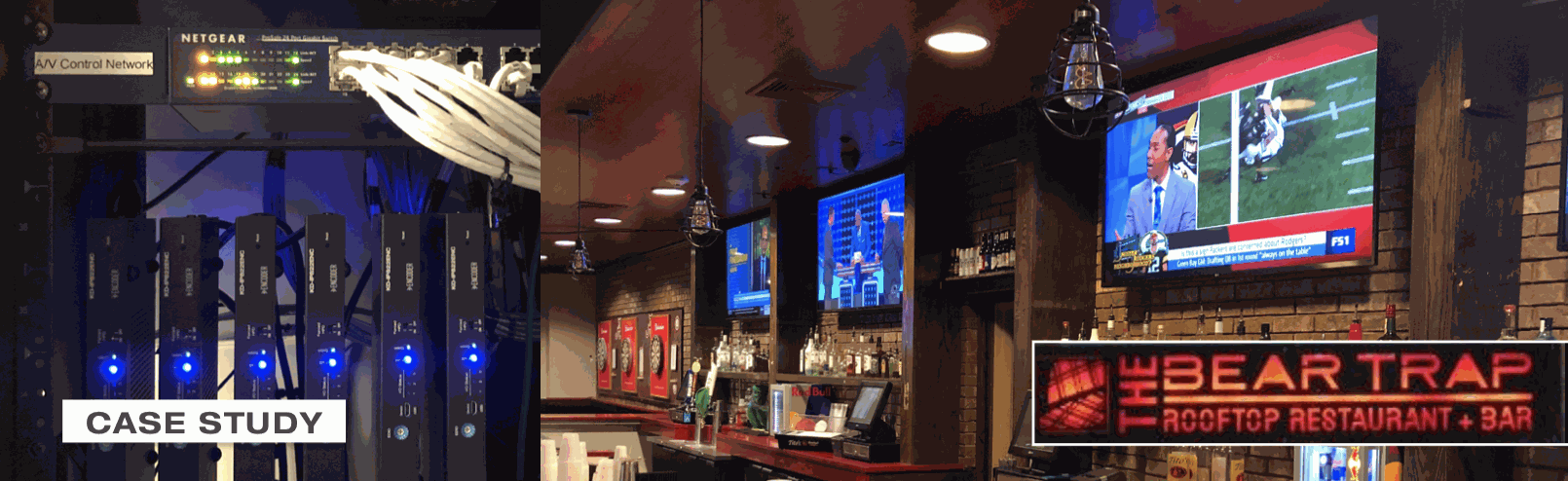

The transformation of a Bar&Restaurant atmosphere through the implementation of a Key Digital AV over IP system in Tuscaloosa Customer Case Study.



Key Digital AV over IP System Creates Winning Bar/Restaurant Atmosphere in Tuscaloosa

view case study

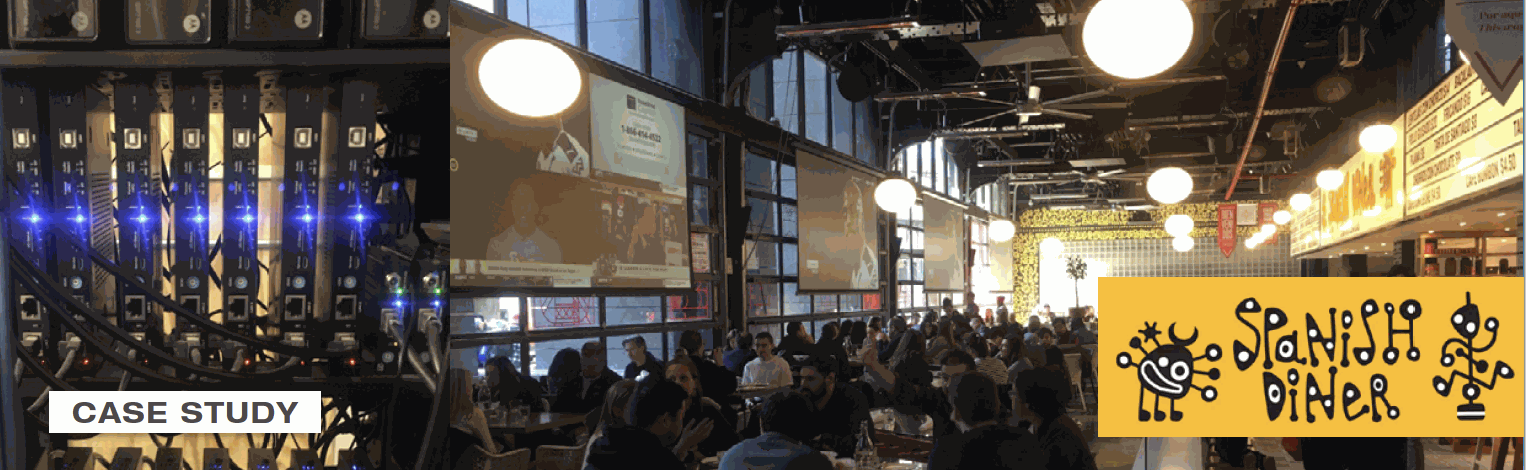

Elevated dining and entertainment at upscale NYC restaurant achieved through Key Digital AV over IP and Compass Control® Pro integration



High-End NYC Restaurant Chooses Key Digital AV over IP and Compass Control® Pro to Create the Perfect Dining & Entertainment Atmosphere

view case study
