KDM Monitoring System™ Hospital Signage
hospital signage Systems
ADVANCED PATIENT CARE SOLUTION - Video & 2-Way Audio Patient Monitoring & Communication • Monitor Multiple Patients from Central Location • Reduce Harmful Staff Exposure • Stay Connected with 2-Way Patient Communication • Localized & Simple Turn-Key Solution • Requires Minimal Staff Training

System:

  • Localized system, no internet required

  • One CAT6 wire from to each patient, <100m from network switch

  • AES secure encryption

  • Turn-key, pre-configured, plug-n-play system, minimal training required

Video:

  • 1080p PTZ Camera at each Patient bed

  • Dual monitor system

  • 4 or 16 Patient view

  • Full screen of Patient video feed with two-way communication link

Audio:

  • Professional USB speaker + mic combo

  • Comm link initiated by Patient via emergency button

  • Full 2-Way link initiated by Nurse using Key Digital® Management Software™

Monitoring:

  • Pre-programmed PC Software User Interface

  • Any PC at Nurse’s Viewing Station can control video, camera, audio, voice

  • Emergency button at each patient to notify Nurse Viewing Station

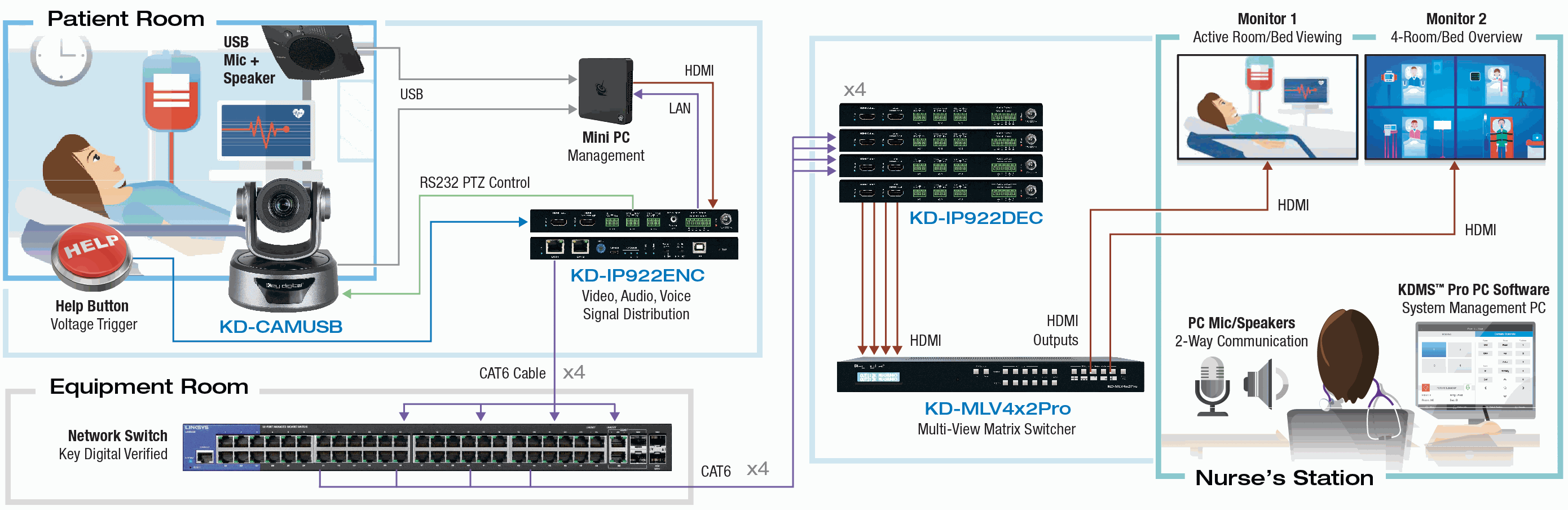

System Examples
System Example - Up to 4 patients
System Example - Up to 16 patients
featured products
KD-IP922ENC-II
4K AV over IP System Encoder with PoE, HDMI Pass-through, Open API Control Ports, Analog and Digital Audio De-Embedding and Pre-Amp
KD-IP922DEC-II
4K AV over IP System Decoder with PoE, Open API Control Ports, Analog Audio De-Embedding and Pre-Amp
KD-MLV4x4Pro
4K Multi-View Tiling Processor Matrix with 4 HDMI Inputs and 4 Outputs
KD-CAMUSB
PTZ USB Camera IR RS-232 Visca Controllable

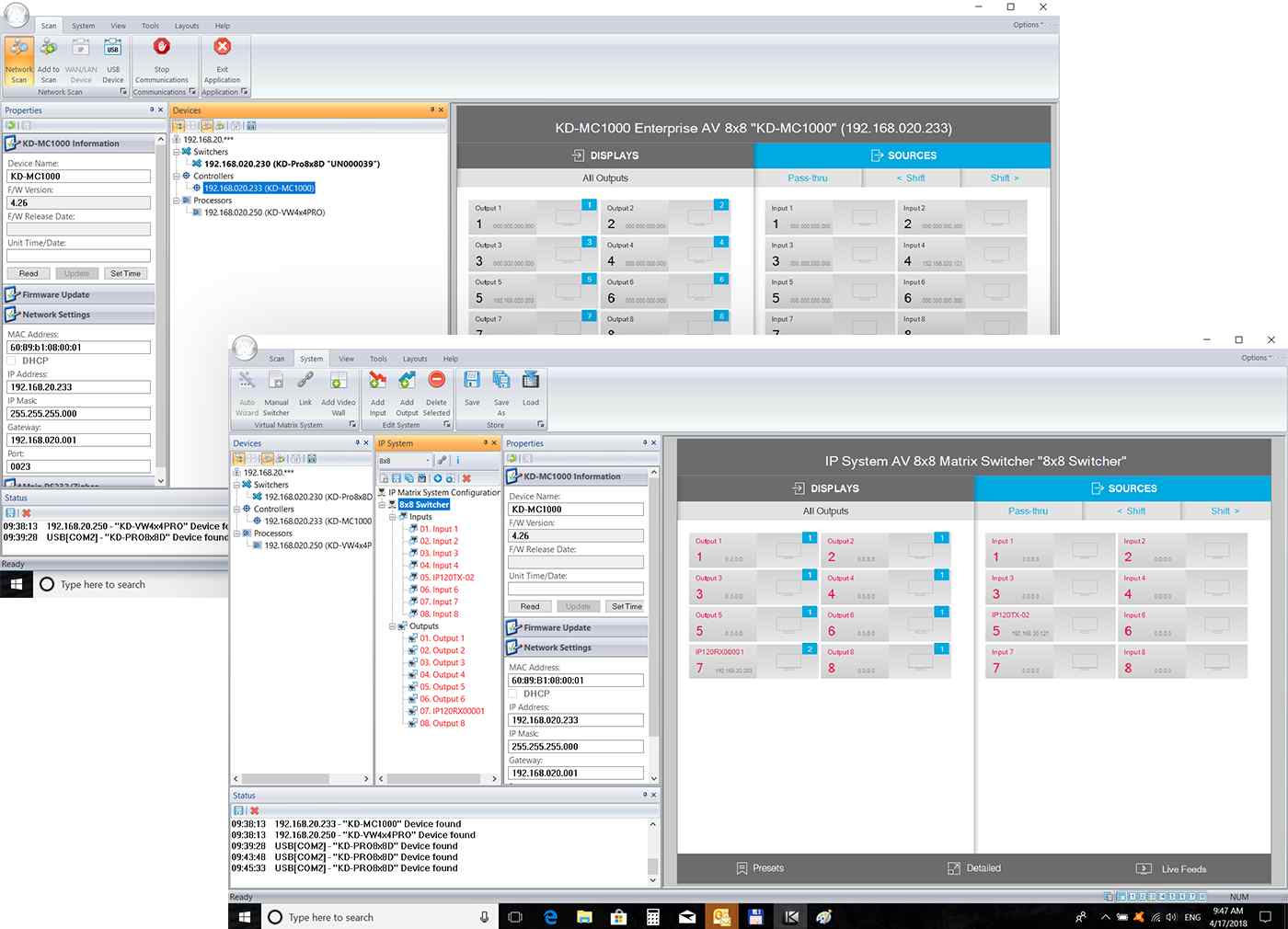

KDMS™ Pro
Windows PC software for setup and control of Key Digital products and systems
Key Digital Sales Team is Available to Answer Your Questions.
Get help with a system design or a project. Find a Key Digital distributor or a system integrator.

Contact  sales@keydigital.com  for more information.
