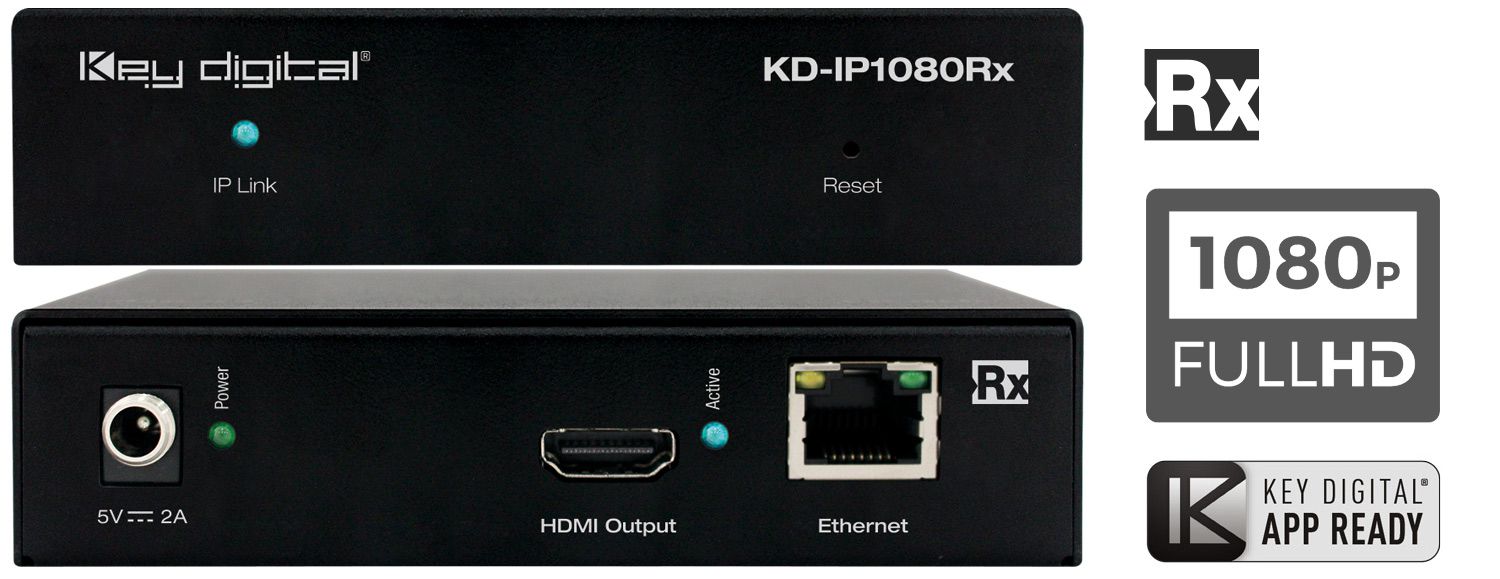

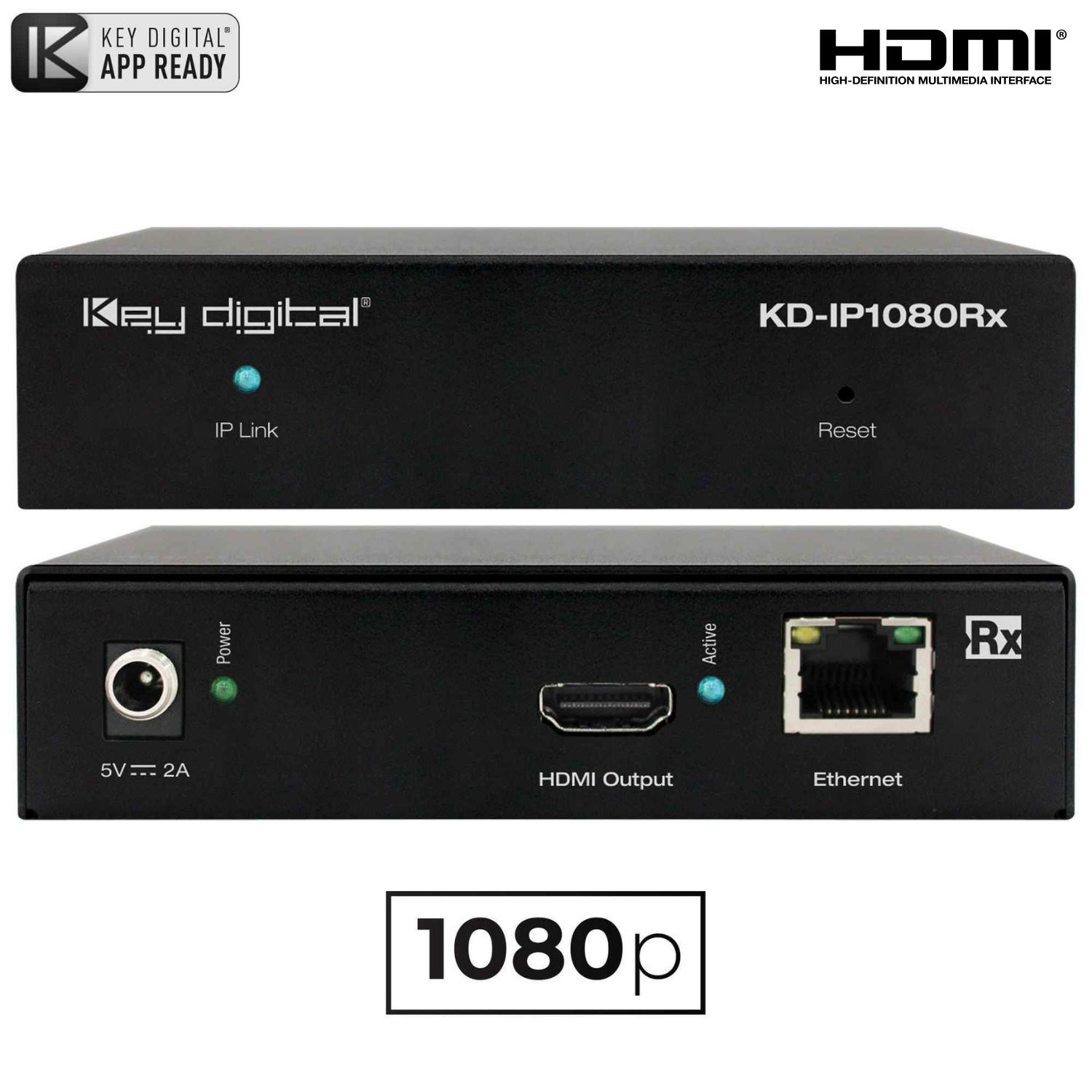

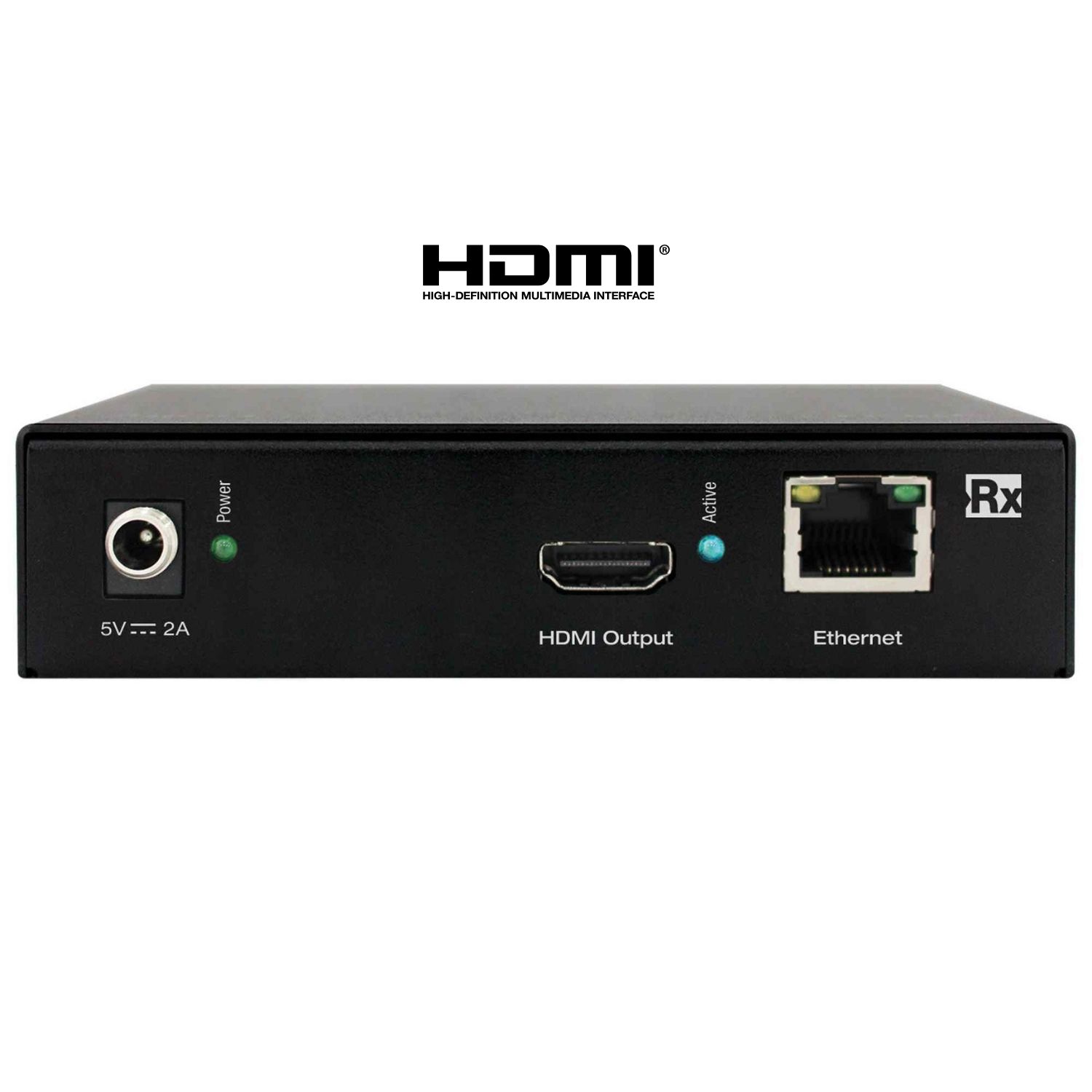

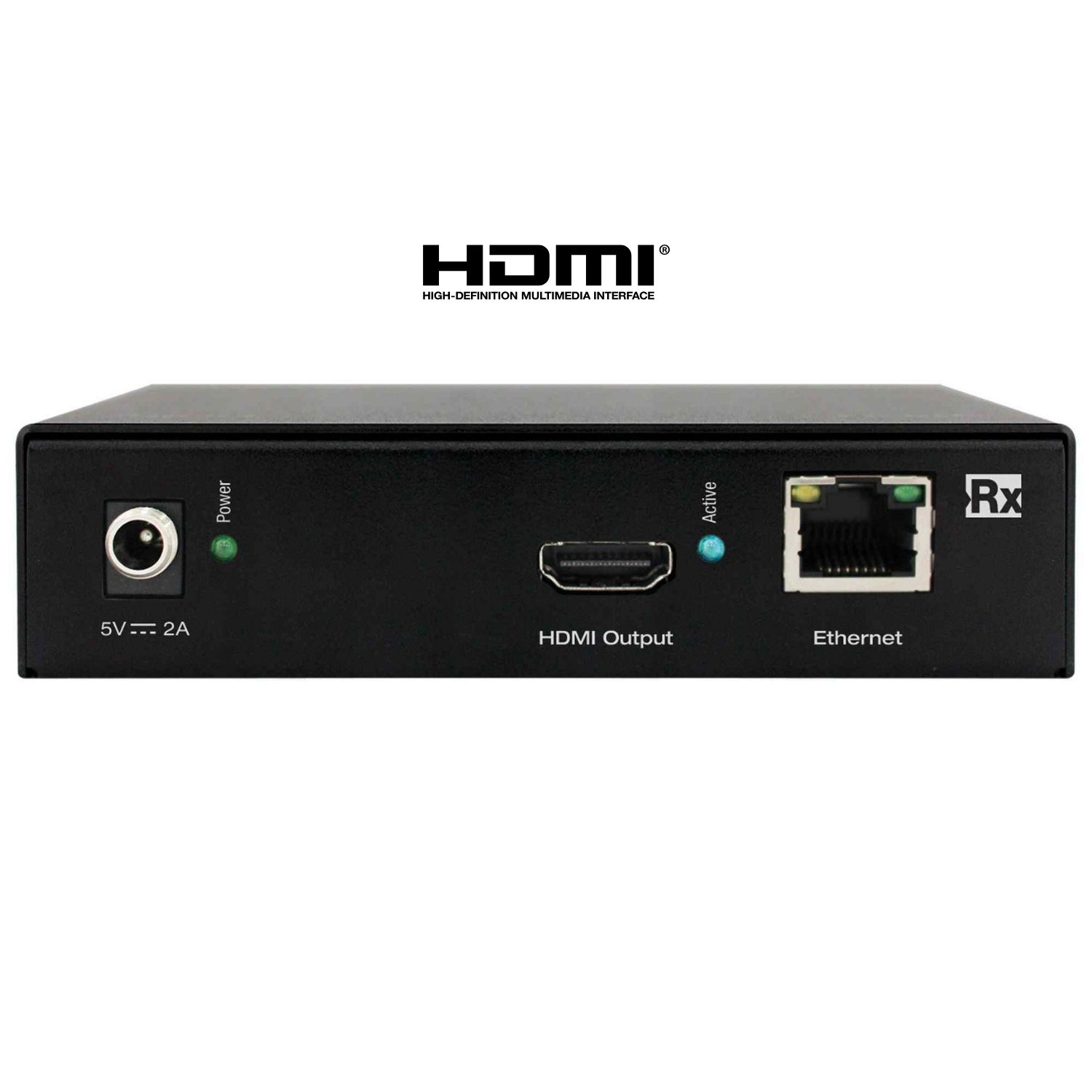

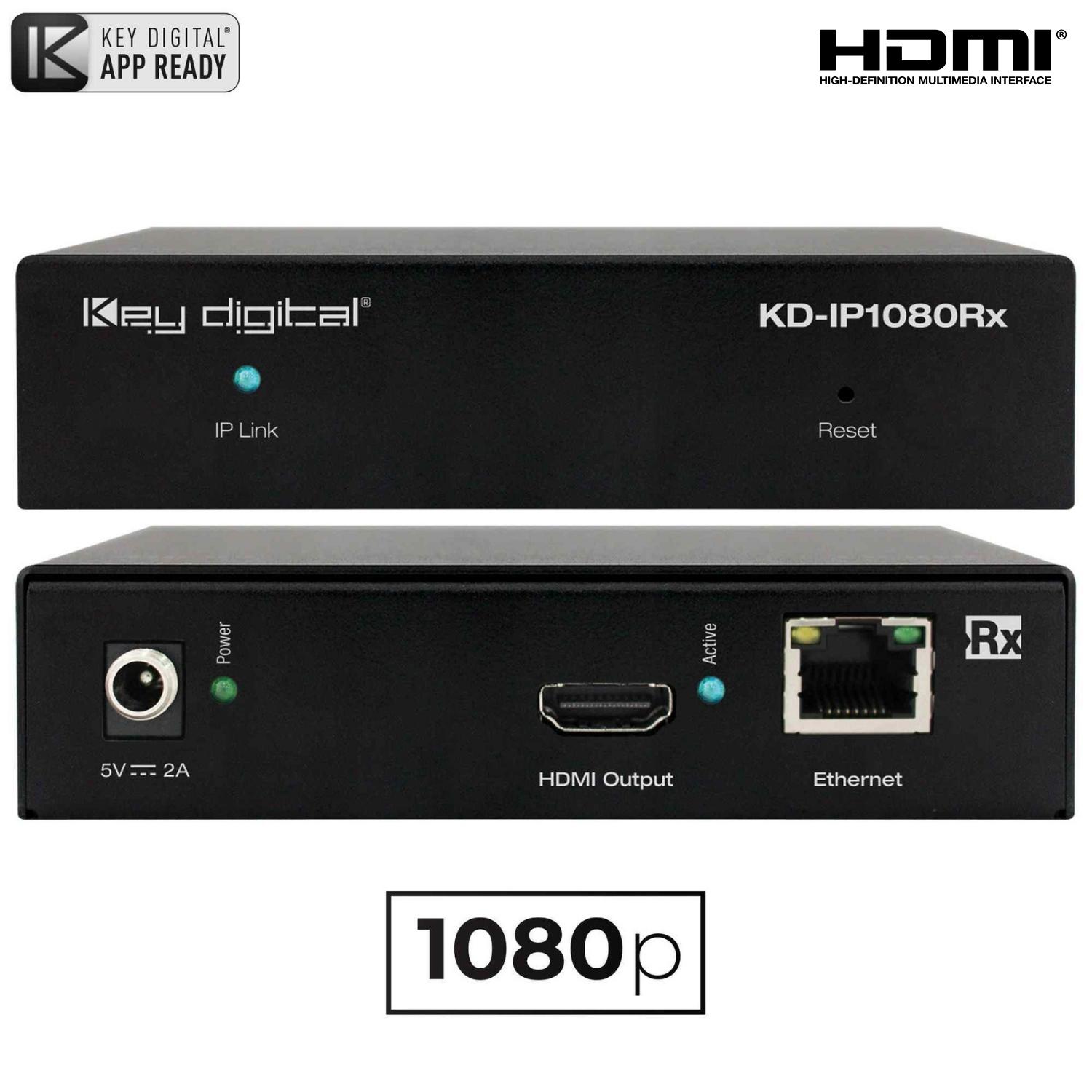

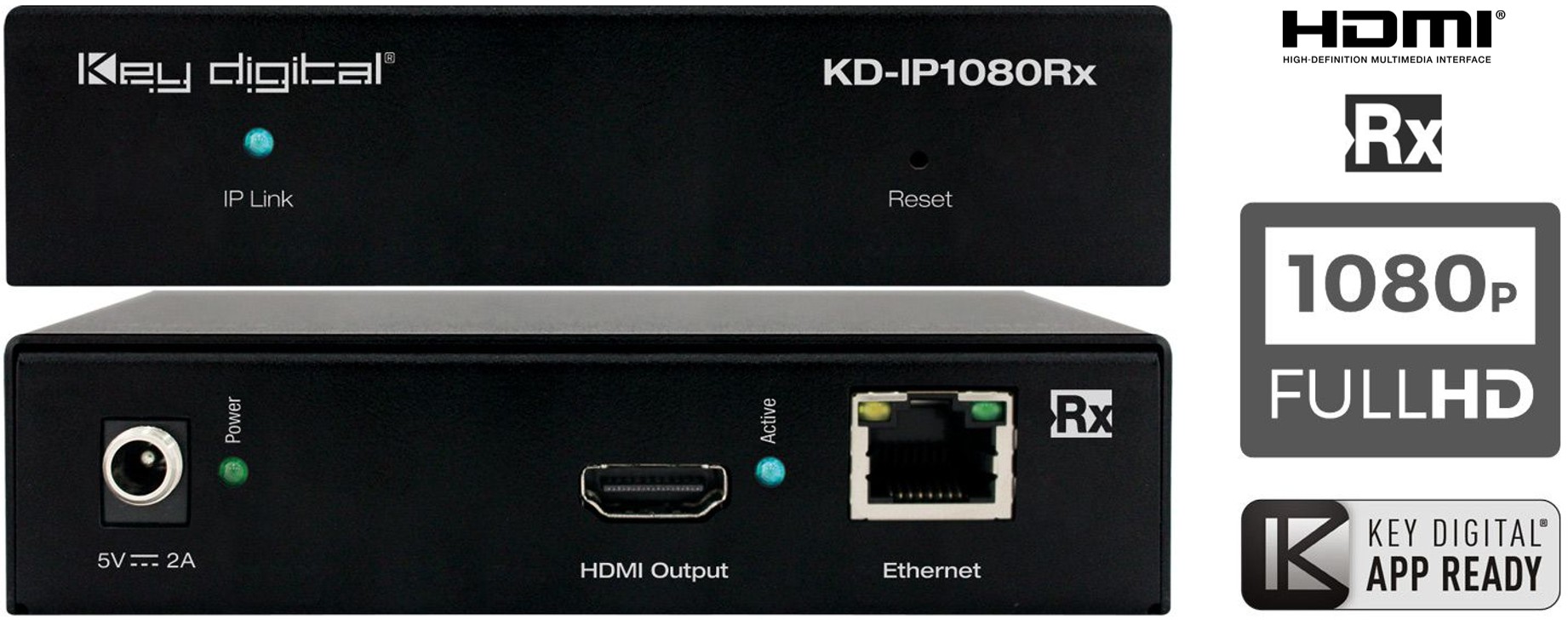

KD-IP1080Rx

H.264 Compression: Ideal standard for large video distribution applications

Data Stream Bandwidth: < 15Mbps

Low-bandwidth System: Supports managed 100BaseT or Gigabit network switches

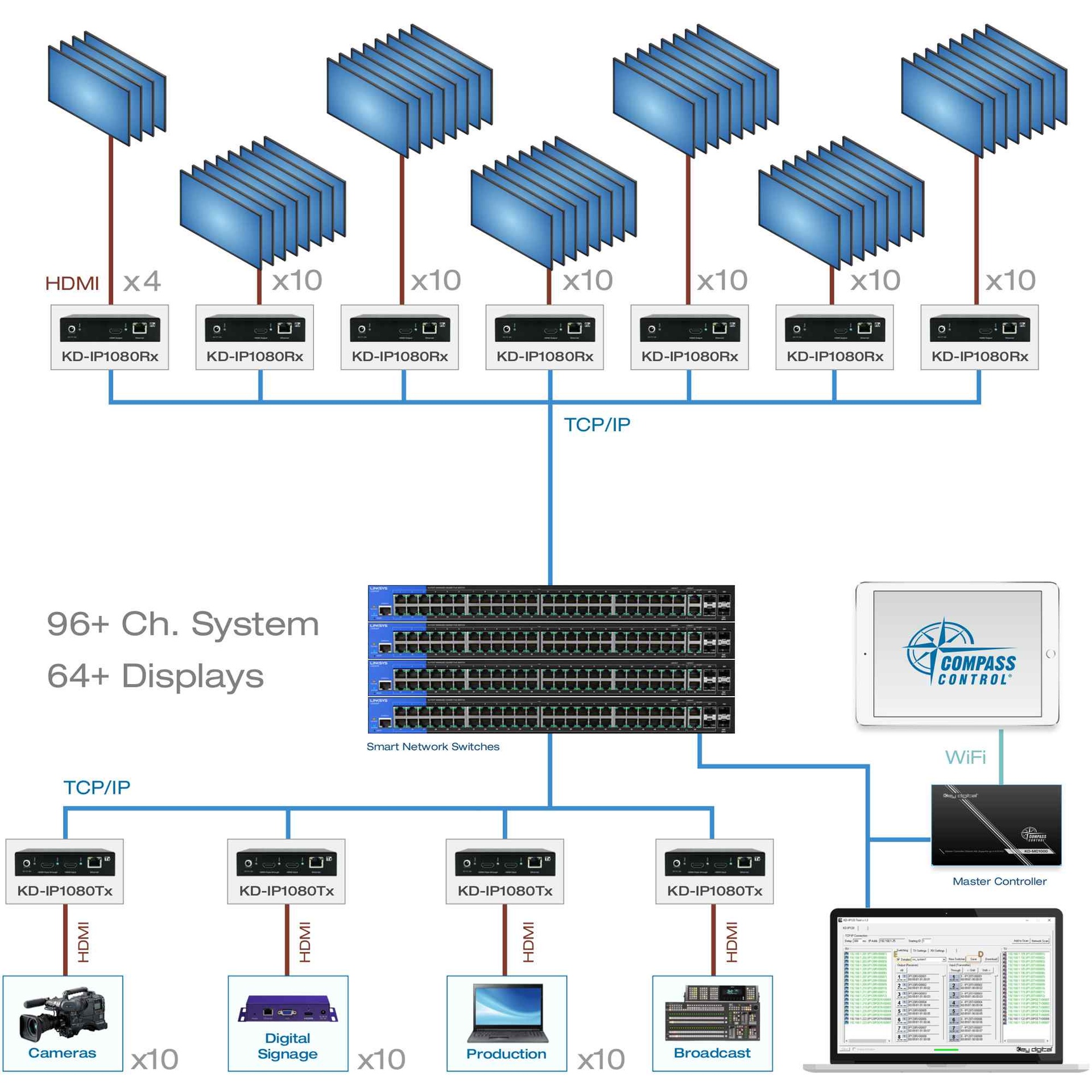

Custom System: Add Tx and Rx extenders to an existing system to expand HDMI over IP up to 1024 Tx units and unlimited amount of Rx units

Power Over Ethernet: Carry power to Tx and Rx units with a Power Over Ethernet enabled Smart Managed Switch

Signal Extension: Up to 400 ft. @ 1080p@60 (2.25Gbps) using CAT5e/6 UTP/ STP cable

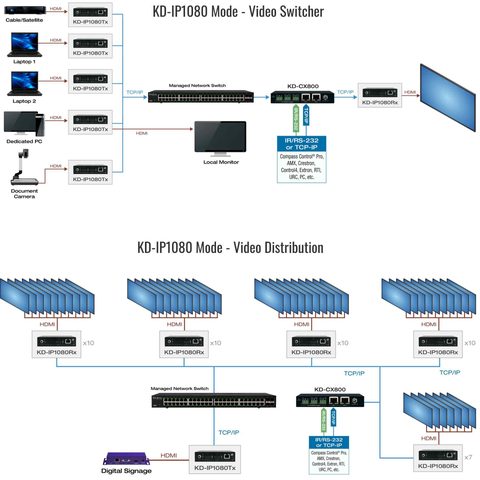

Connectivity: Can be connected through a network IP switch or point-to-point

Alternative Extension Methods: Enabled by low-bandwidth data streaming technology. Wifi Extender up to 100 ft, IP over Coaxial: Up to 1000 ft

Resolution Support: Supports up to 1080p@60 (2.25Gbps) and compatible with DVI1.0/HDMI/HDCP1.x

Audio Format: Supports 2ch PCM at 44.1/48kHz

Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

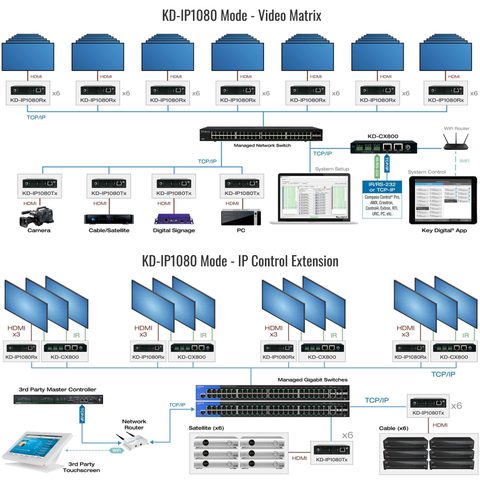

Source/Display Control: Integrate with KD-CX800 to add 3 IR, RS-232 or Trigger ports

Key Digital App Ready: Can be controlled over TCP/IP via Key Digital® App

Control App Stabilization: One KD-CX800 or KD-MC1000 control gateway required for control by professional control system.

Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

EDID: EDID libraries readily available to provide the best setup per source

Deep Color Support: Up to 12 bits/color

TMDS re-clocking: Support for long HDMI runs using Key Digital® HDMI cables

Licensing: Fully licensed and compatible with all HDMI and HDCP technologies up to HDMI 1.4 and HDCP 1.4
