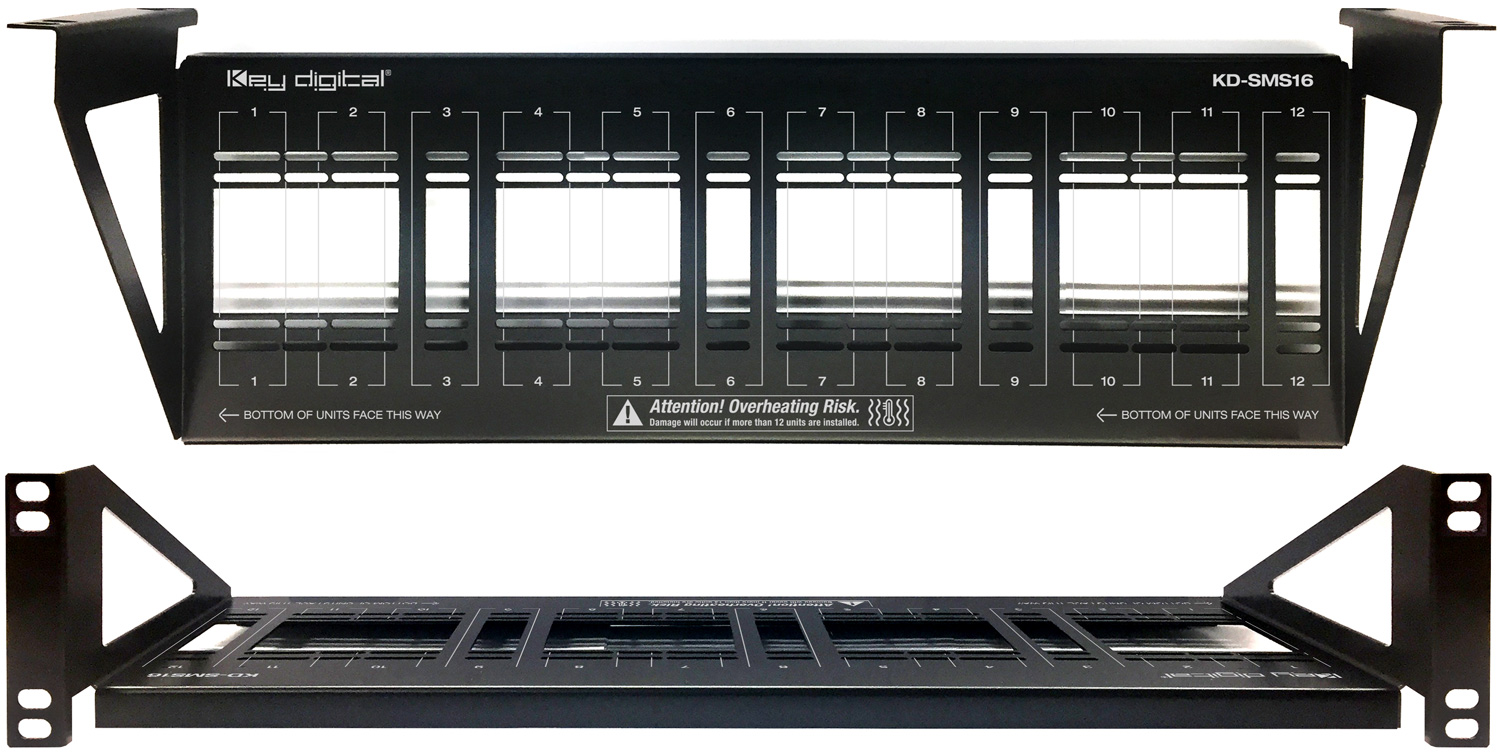

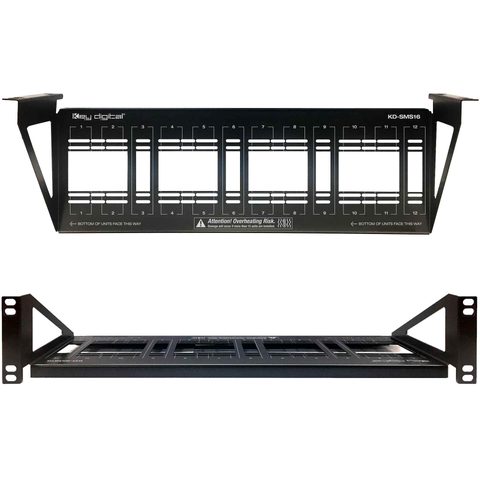

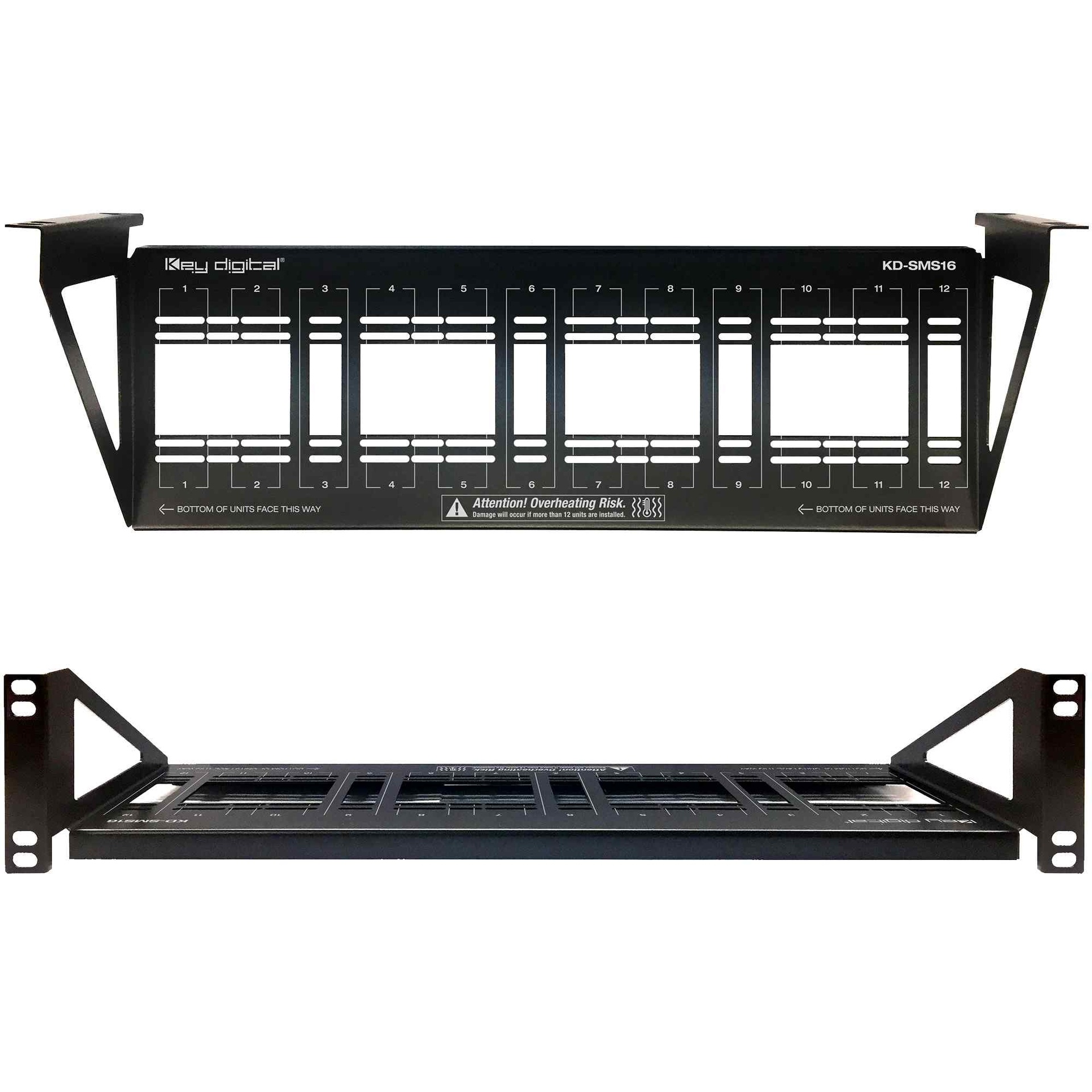

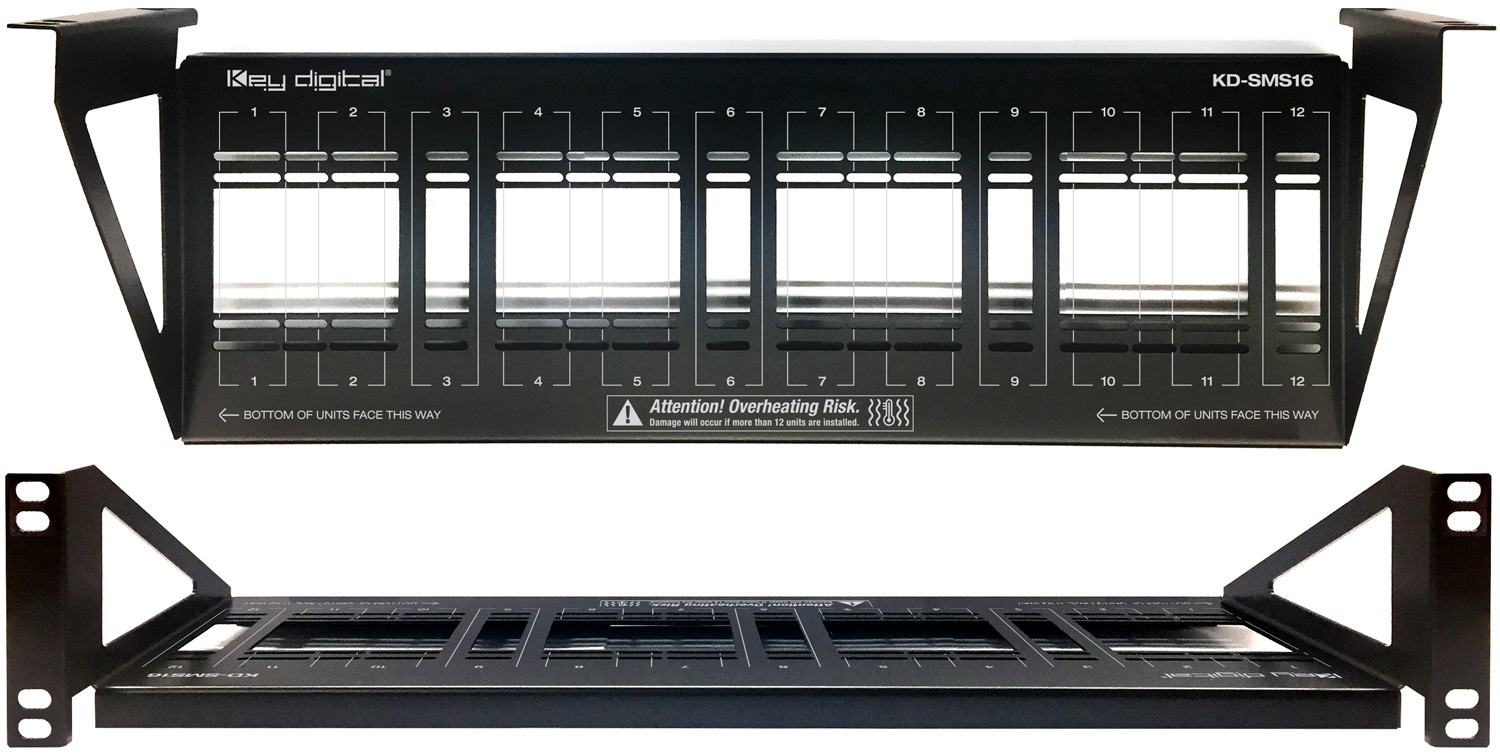

Key digital rack shelf Front and Aerial View

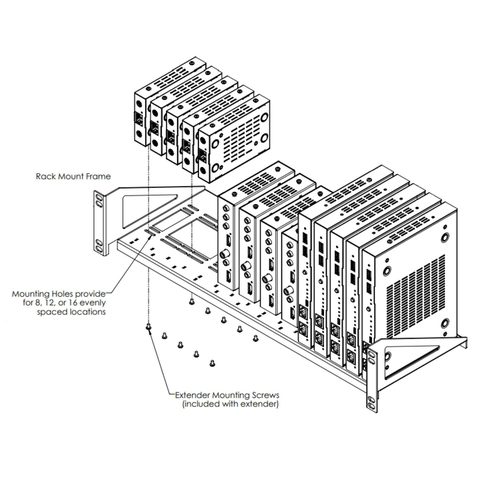

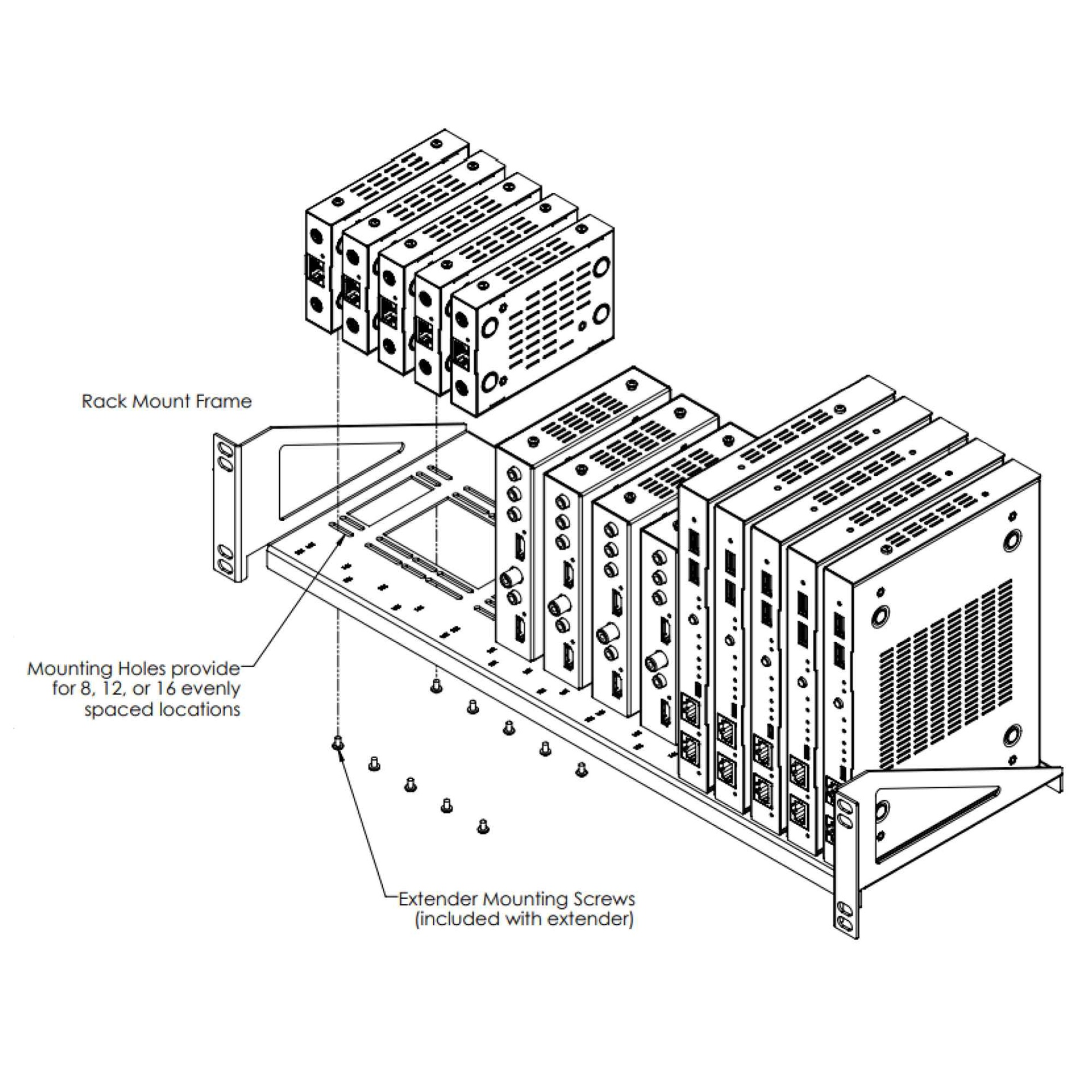

Key digital rack shelf Screw Setup
Key Digital rack mount shelf Setup

KD-SMS16

Shelf mount solution for most Key Digital products

  • Shelf mount provides a clean appearance for use with non-rack mountable Key Digital products

  • Fits a variety of Key Digital products, including AV over IP Encoders and Decoders, HDMI Extenders, Slim Series HDMI Switchers, Distribution Amplifiers, and Master Controllers

  • Holds up to 12 units to prevent overheating

  • If ordered with KD AV over IP systems, Key Digital can pre-mount units upon request

Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Find a Distributor

Free, no-commitment pricing — typical reply within one business day.

Get a Quote

KD-SMS16

Tell us a couple of details and we’ll come back with pricing within one business day. No phone calls until you say so.

By submitting, you agree to be contacted by Key Digital about this request.

introduction

KD-SMS16 is a simple rack shelf with slot spacing that accommodates the screw holes of most Key Digital products that are non-rack-width or half rack-width. KD-SMS16 supports mounting of up to 12 units across for a clean appearance while maintaining sufficient ventilation to prolong unit lifespan and avoid overheating.


Features

    Allows mounting of multiple units on one shelf

    Do not exceed 12 units mounted per KD-SMS16

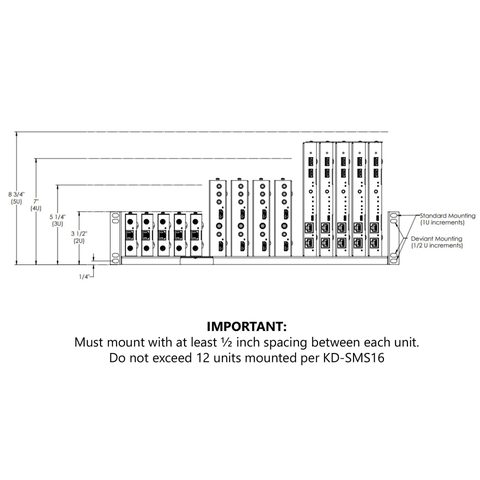

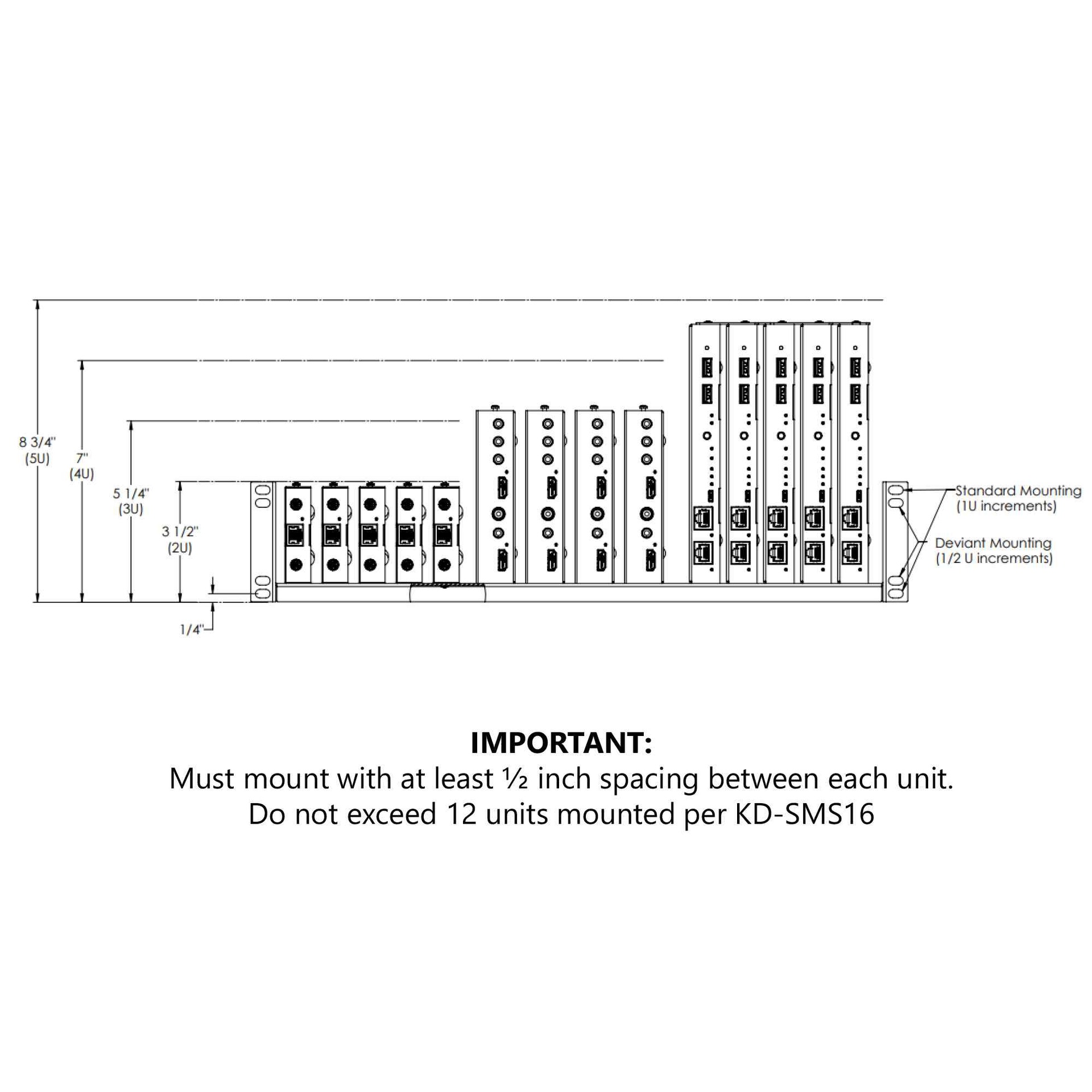

    Must mount with at least 1/2 inch spacing between each unit.




    Compatible Models:

    HDBaseT/HDMI Extenders:

    • KD-X222PO
    • KD-X444S / KD-X444L
    • KD-X444SP / KD-X444LP
    • KD-EX18G
    • KD-X40MRx
    • KD-X100MRx
    • KD-FIX22
    • KD-FIX418A

    Control Solutions:

    • KD-CX800
    • KD-MC1000

    AV over IP Systems:

    • KD-IP922ENC / KD-IP922 DEC
    • KD-IP822ENC / KD-IP822DEC
    • KD-IP1022ENC / KD-IP1022DEC
    • KD-IP1080Tx / KD-IP1080Rx

    HDMI Switchers:

    • KD-S2x1X-2 / KD-S4x1X-2
    • KD-S2x1 / KD-S2x1X
    • KD-S4x1 / KD-S4x1X

    HDMI Distribution Amplifiers:

    • KD-DA1x2DC
    • KD-DA1x2X / KD-DA1x4X

    Audio Amplifiers:

    • KD-AMP220

    Additional Features


    downloads

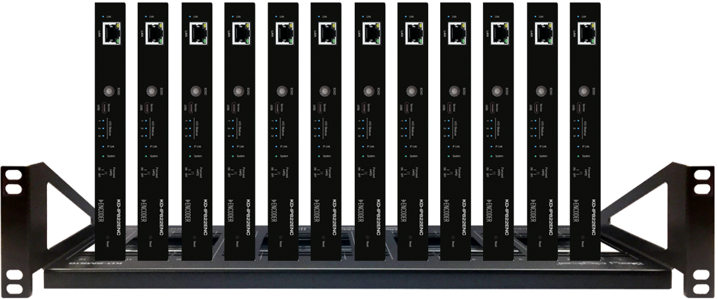

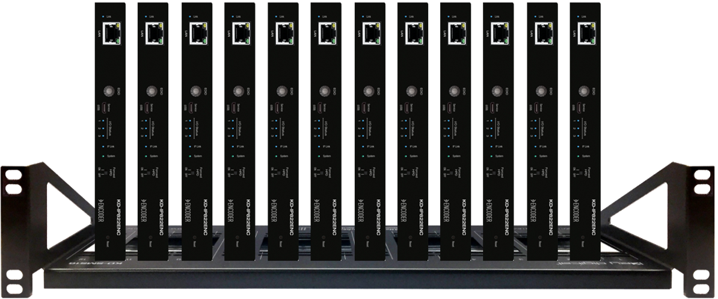

    KD-SMS16 with KD-IPENC
    KD-SMS16 Mounting Instructions
    Hires Image

    specifications

    Dimensions: W: 19", H: 3.5", D: 6.75'


    accessories


    technical documents

    KD-SMS16 with KD-IPENC
    KD-SMS16 Mounting Instructions
    Hires Image

    specifications

    Dimensions: W: 19", H: 3.5", D: 6.75'


    accessories


    purchased together

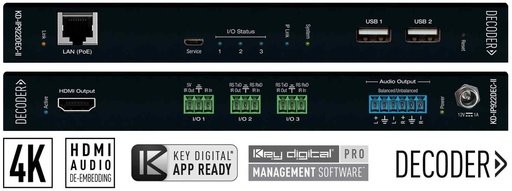

    KD-IP922DEC-II
