KD-AOCH230
KD-AOCH230

KD-AOCH230

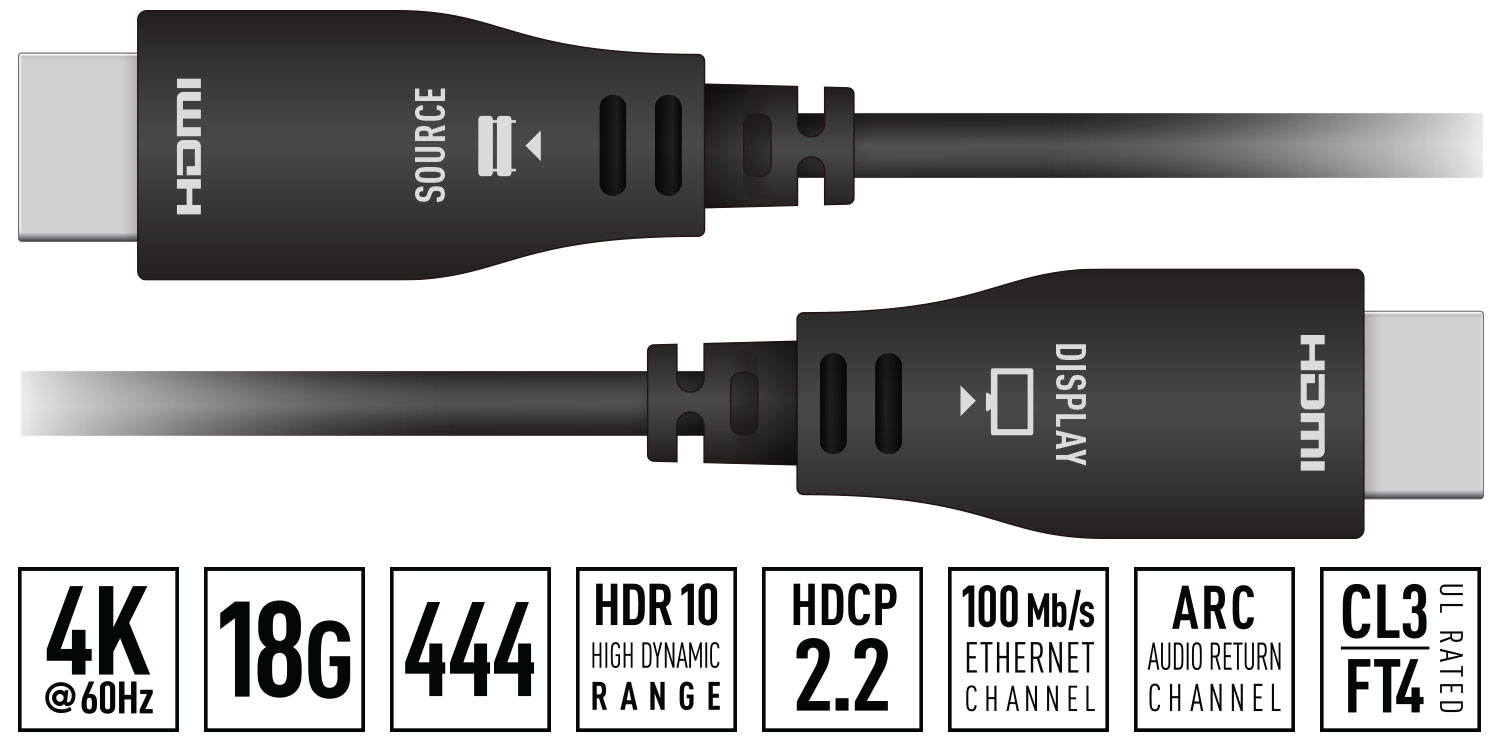

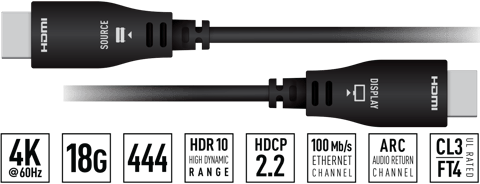

230FT (70M) Active Optical HDMI Fiber Cable (4K@60Hz 8G 444 CL3 FT4)


Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
overview
resources
specS & accessories

introduction


Features

  • 4K/UHD Support: 4096x2160 or 3840x2160 50/60Hz at 4:4:4
  • 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
  • High Dynamic Range (HDR) Format: HDR10 and Dolby® Vision support
  • HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
  • Ethernet Channel: 100 Mb/s Ethernet between two HDMI connecting devices
  • Audio Return Channel: Audio can be returned from display back to HDMI source for amplification and display
  • Active Optical Cable (AOC): Technology carries heavy TMDS HDMI channel over fiber
  • Deep Color Support: Up to 4K 24/25/30Hz 4:4:4/12 bits or 50/60Hz 4:2:0/12 bit
  • Directional Cable: Each head contains specific handling for optimal performance
  • OPEN EYE™ Technology: Certified & tested for 0% loss and noise-free performance
  • Support All Digital Audio Formats: Dolby® TrueHD, Dolby® Digital Plus, Dolby® Atmos and DTS-HD Master Audio™
  • Thin & Flexible: Wiring supports tighter bend radius than traditional HDMI
  • CL3/FT4 UL Rating: Approved for in-wall installations
  • Powered by HDMI: No external powering
  • Pull strength:  Fiber Optic Cable = 33lb / 15kg.  Connector = 53lb / 24kg
  • Cable Gage:  28 AWG
   Key Digital Product Return Policy

Additional Features


downloads

Head Dimensions
Hires Image
Catalog Page

specifications

  • Certifications: CE, RoHS, WEE, EAC
  • Pull strength:  Fiber Optic Cable = 33lb / 15kg.  Connector = 53lb / 24kg
  • Cable Gage:  28 AWG
  • Shipping Weight: 5.75 lb (2.61kg)
  • Packaging Dimensions: 13.25 x 13 x 3 in (330 x 336 x 76mm)

accessories


technical documents

Head Dimensions
Hires Image
Catalog Page

specifications

  • Certifications: CE, RoHS, WEE, EAC
  • Pull strength:  Fiber Optic Cable = 33lb / 15kg.  Connector = 53lb / 24kg
  • Cable Gage:  28 AWG
  • Shipping Weight: 5.75 lb (2.61kg)
  • Packaging Dimensions: 13.25 x 13 x 3 in (330 x 336 x 76mm)
