KD-AOCH49P 49ft (15m) 8K 48Gbps Plenum Optical HDMI Cable

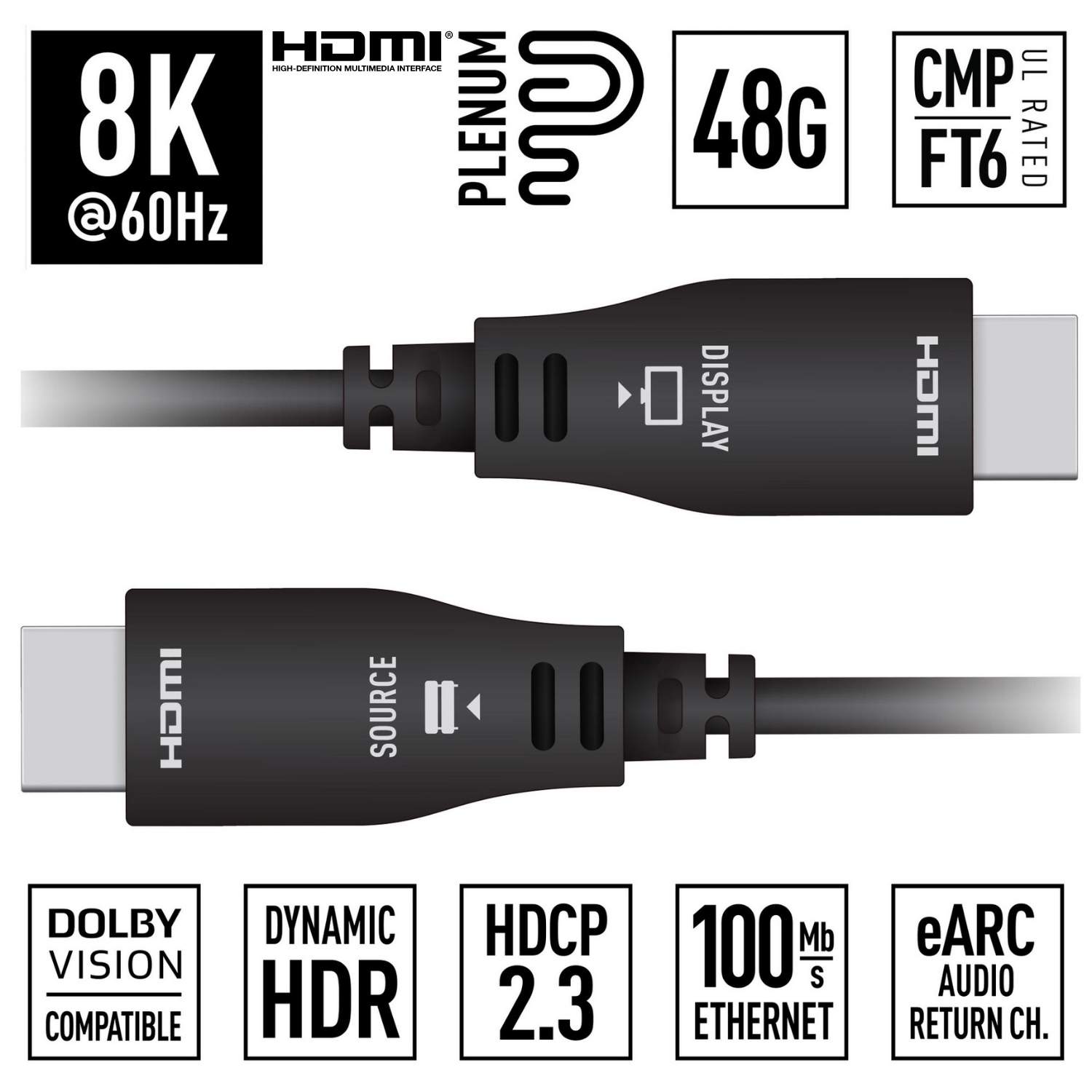

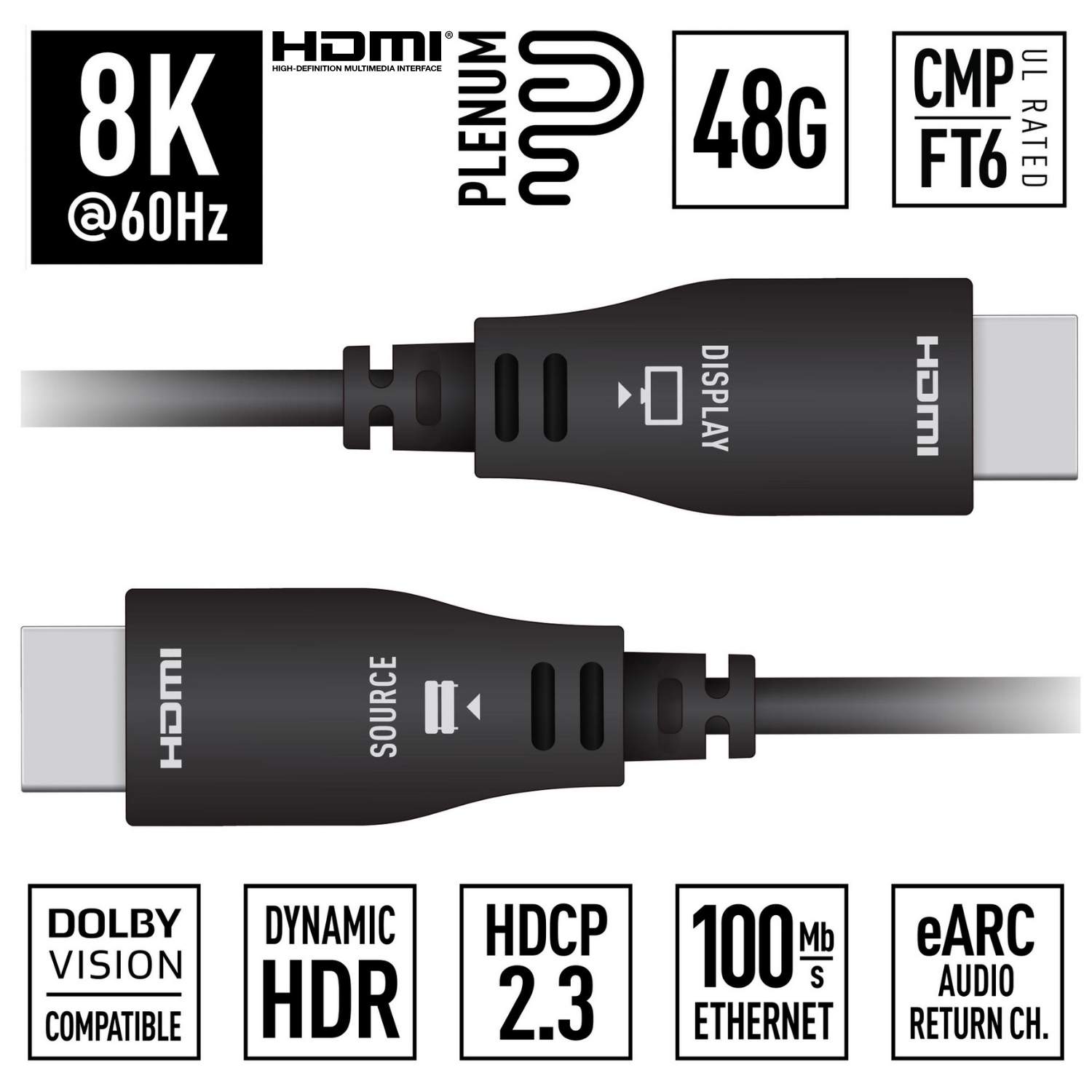

KD-AOCH49P 8K Plenum Active Optical Cable

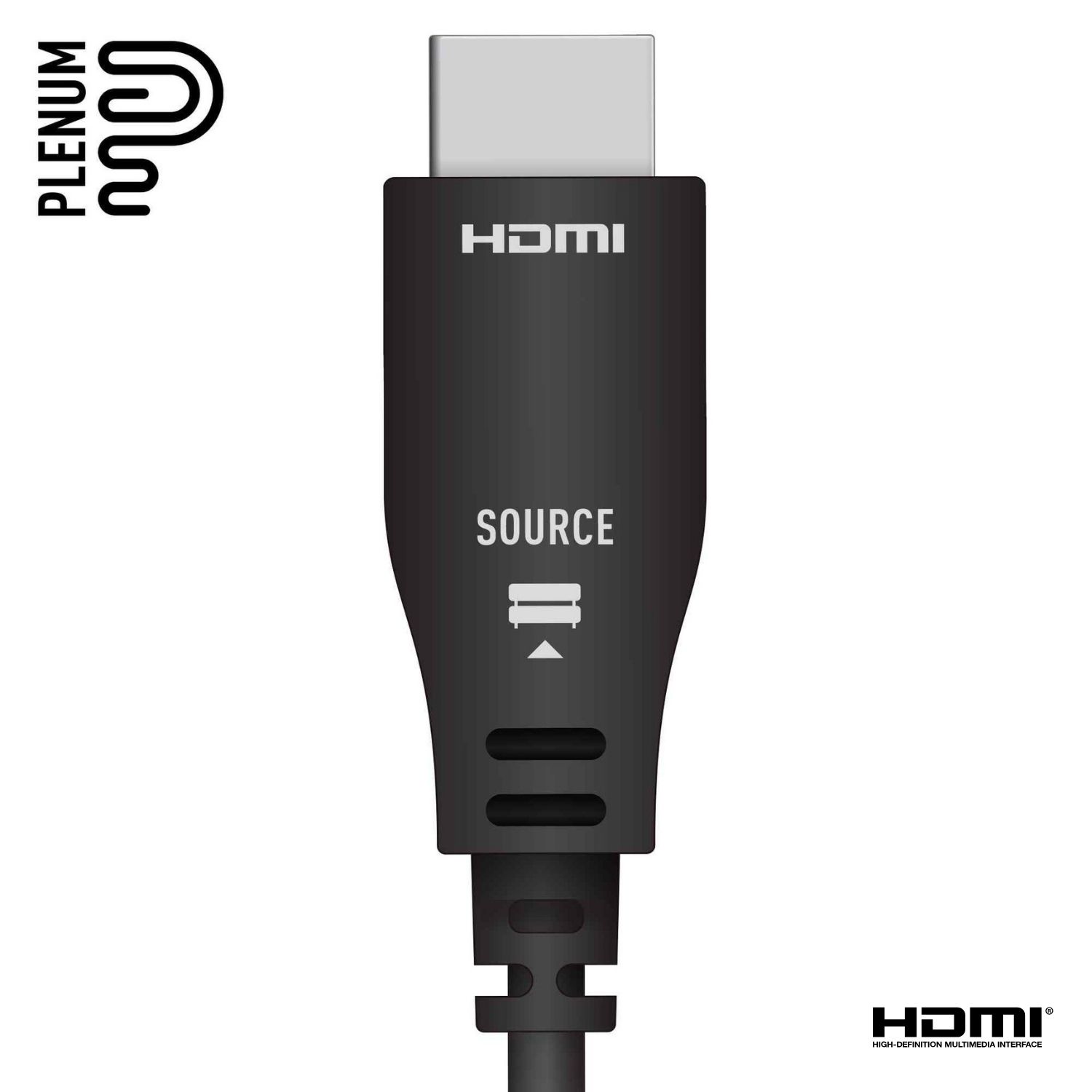

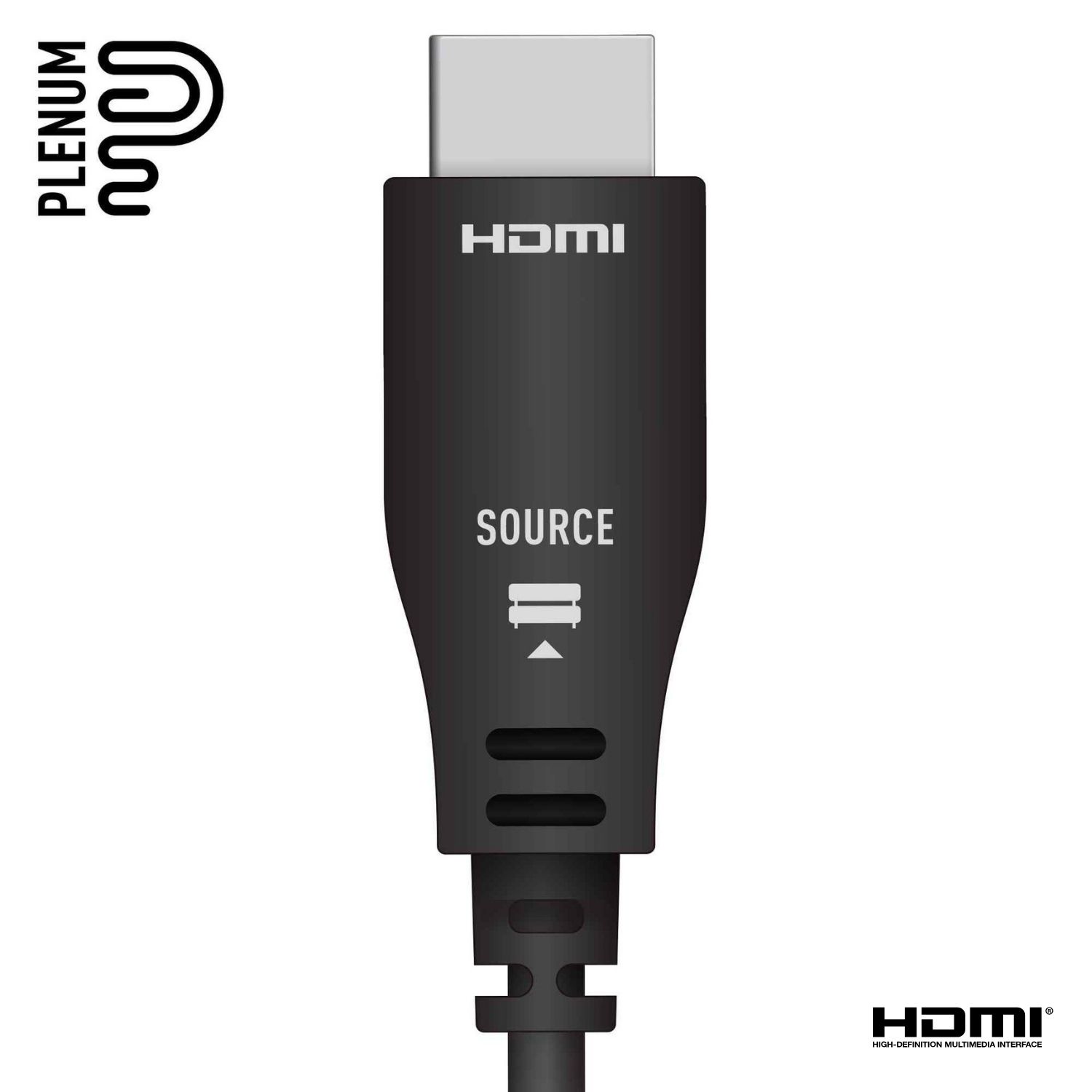

KD-AOCH49P Source End

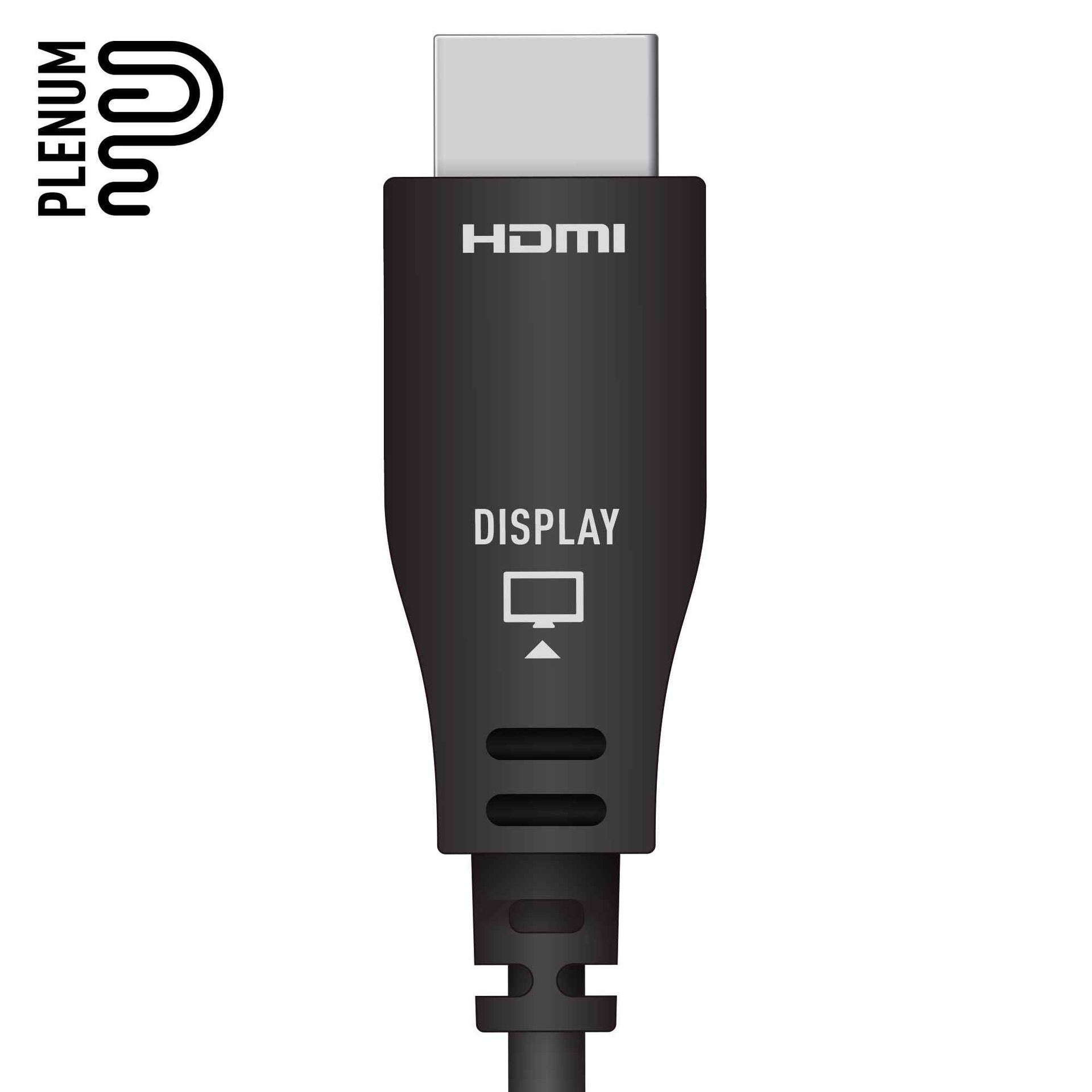

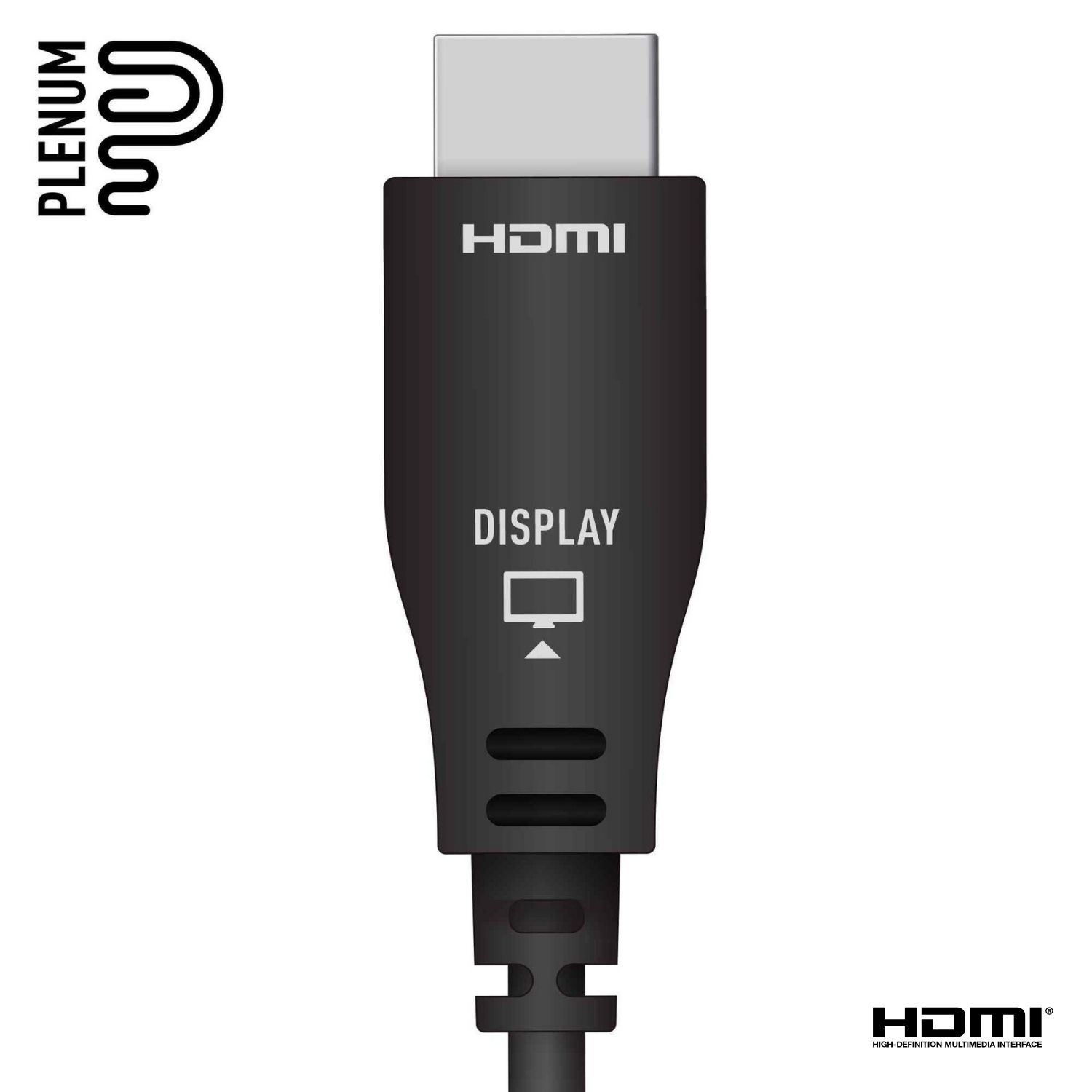

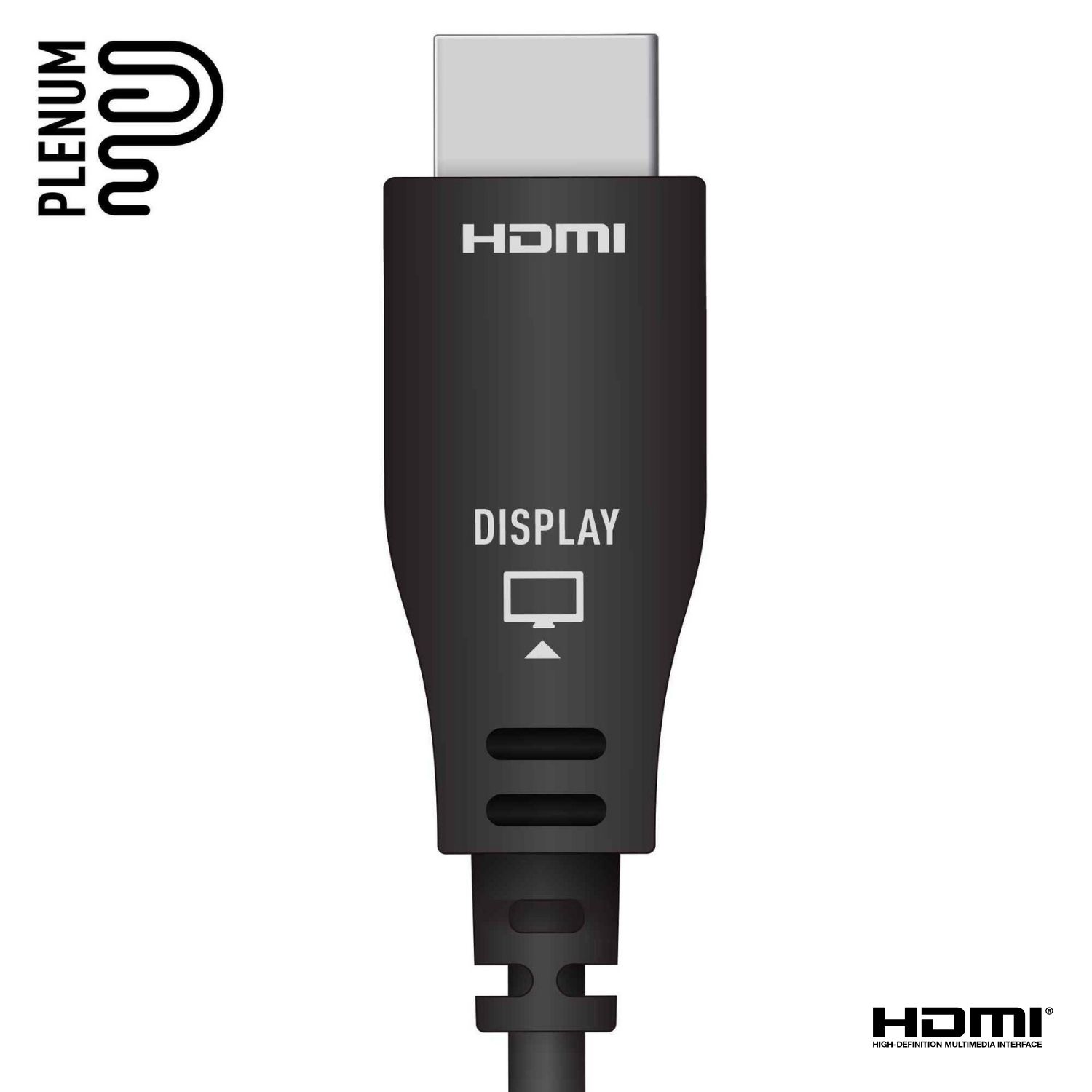

KD-AOCH49P Display End
"Key Digital did an amazing job. We literally just had how many TVs and sources. We numbered them one to 23 throughout the bar, and they came pre-loaded and ready to go."
John Peterson · Innovative Sales Solutions | Lakewood Tavern

49ft (15m) 8K 48Gbps Plenum Optical HDMI Cable

Find a Distributor

Free, no-commitment pricing. Typical reply within one business day.

KD-AOCH49P
  • 8K Ultra High Speed Certified: 7680x4320 resolution 60Hz at 4:4:4 and 10K resolution 4:2:2 24/30Hz
  • 48Gbps bandwidth
  • HDR high dynamic range and Dolby Vision
  • Surround audio up to Dolby® 7.1, Atmos / DTS-HD
Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Get a Quote

KD-AOCH49P

Tell us a couple of details and we’ll come back with pricing within one business day. No phone calls until you say so.

By submitting, you agree to be contacted by Key Digital about this request.

Urgent? Call +1 914-667-9700, M–F 9–5 ET.

introduction

49ft / 15m 8K/48G Ultra High Speed Active Optical HDMI® Cable with Dynamic HDR, Dolby® Vision, HDCP2.3, and Enhanced Gaming Features. Optimized for PS5 and XBox Series X. CMP/FT6 rated fire retardant jacket is approved for installation in Plenum spaces.

Features

  • Ultra High Speed Cable: Certified by HDMI Forum Authorized Testing Center
  • 8K Ultra High Speed Certified: 7680x4320 resolution 60Hz at 4:4:4
  • 48 Gbps Bandwidth: For 8K 7680x4320 resolution 60Hz at 4:4:4 and 10K resolution 4:2:2 24/30Hz support
  • CMP/FT6 UL Rating: Fire retardant jacket is approved for installation in Plenum spaces
  • High Dynamic Range (HDR) Format Support: HDR10 and Dolby® Vision
  • HDCP 2.3: Compliancy up to HDCP 2.3 and backward compliant
  • Optimized for Gaming: Optimized for PS5 and Xbox Series X
  • Active Optical Cable (AOC): Technology carries heavy TMDS HDMI channel over fiber
  • Ethernet Channel: 100 Mb/s Ethernet between two HDMI connecting devices
  • eARC / ARC Audio Return Channel: Audio can be returned from display back to HDMI source for amplification and display
  • Deep Color Support: 8K 4:4:4 16bit 60Hz, 4:2:0 16bit 120Hz; 4K 4:4:4 16bit 60/120Hz
  • Directional Cable: Each head contains specific handling for optimal performance
  • Surround Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®, and more
  • Thin & Flexible: Wiring supports tighter bend radius than traditional HDMI
  • Powered by HDMI: No external powering

Additional Features

  • Pull Strength: Fiber Optic Cable = 33lb / 15kg. Connector = 53lb / 24kg

  • Cable Gage: 28 AWG

downloads

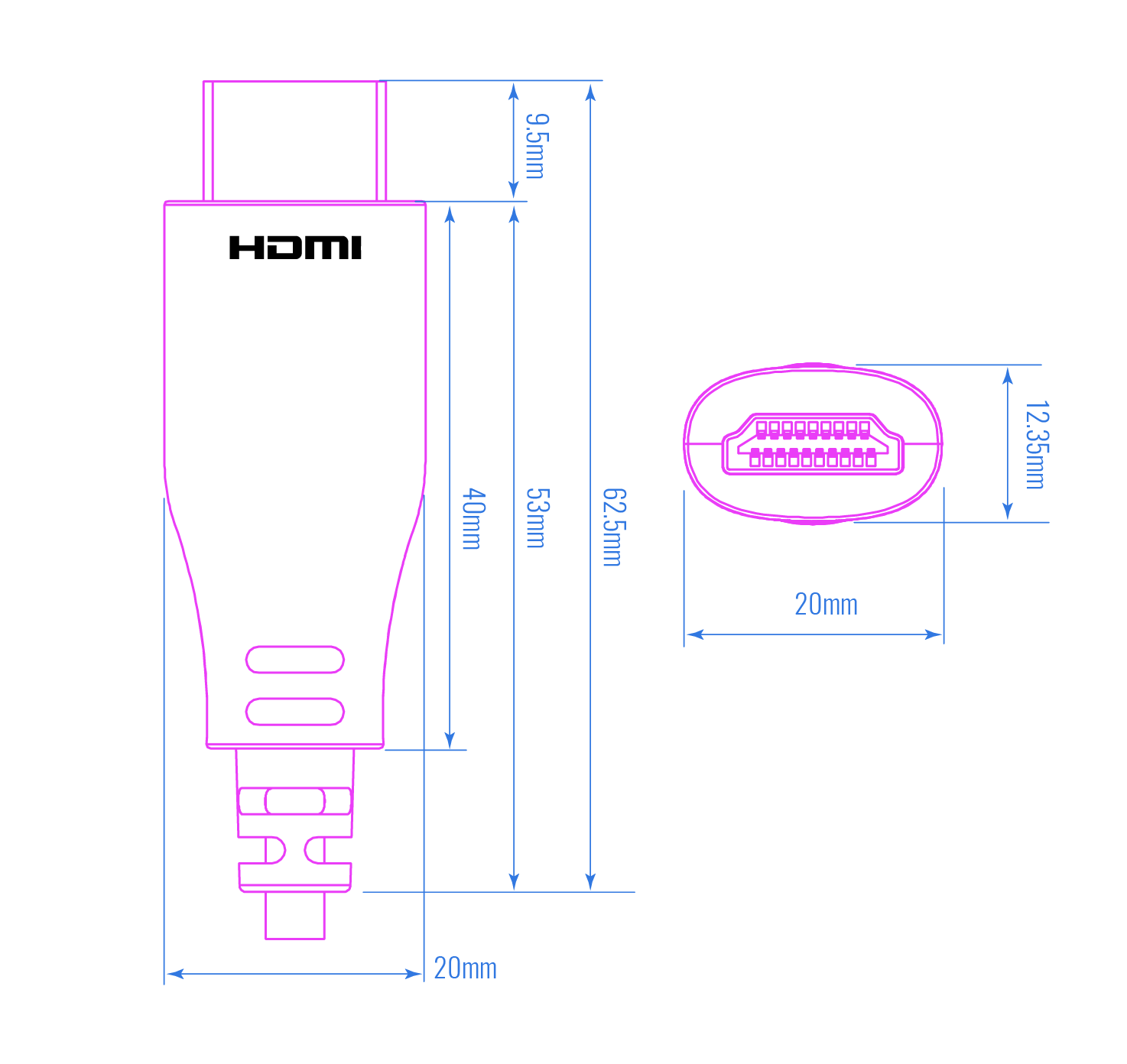

Head Dimensions
Hires Photo

specifications

  • Pull Strength: Fiber Optic Cable = 33lb / 15kg. Connector = 53lb / 24kg
  • UL Rating: CMP/FT6
  • Cable Gage: 28 AWG

accessories


technical documents

Head Dimensions
Hires Photo

specifications

  • Pull Strength: Fiber Optic Cable = 33lb / 15kg. Connector = 53lb / 24kg
  • UL Rating: CMP/FT6
  • Cable Gage: 28 AWG
