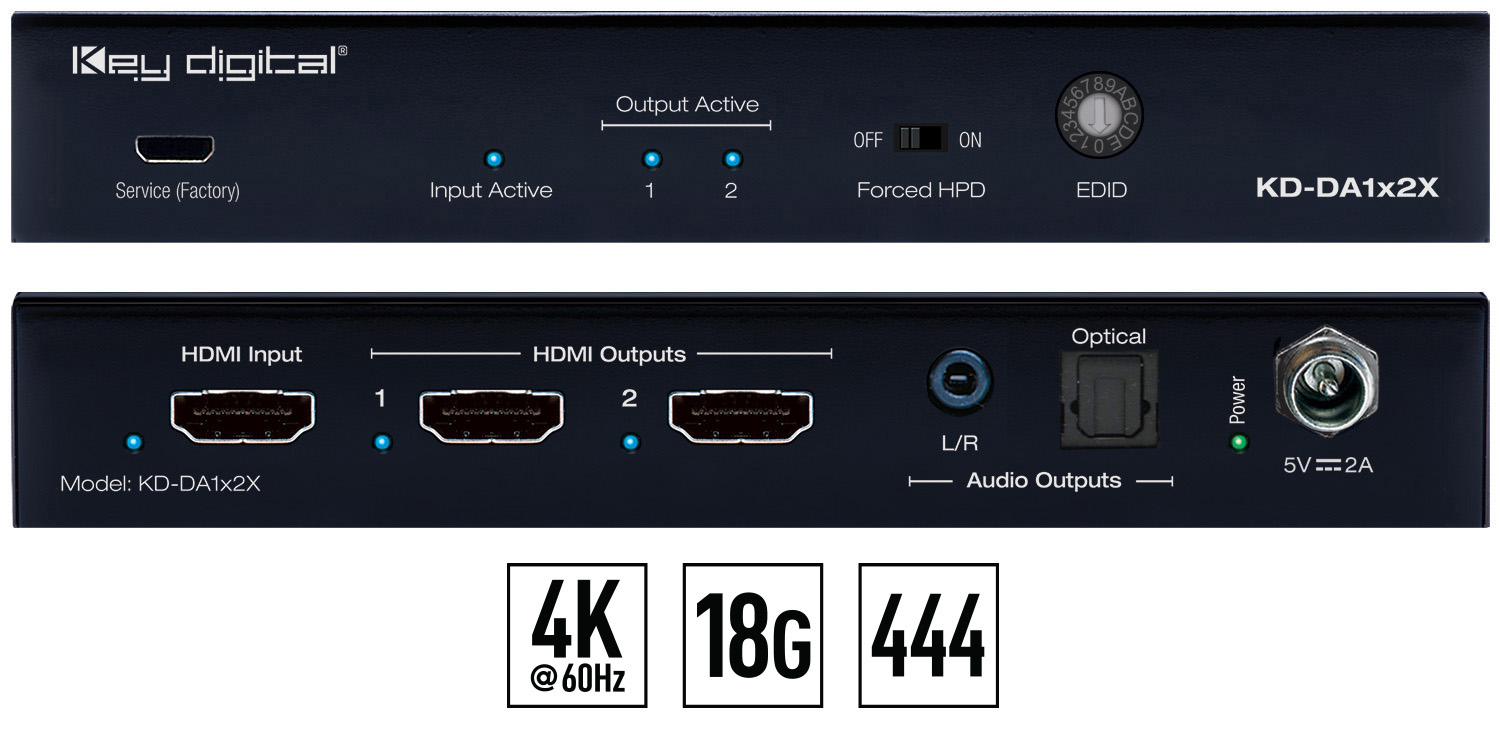

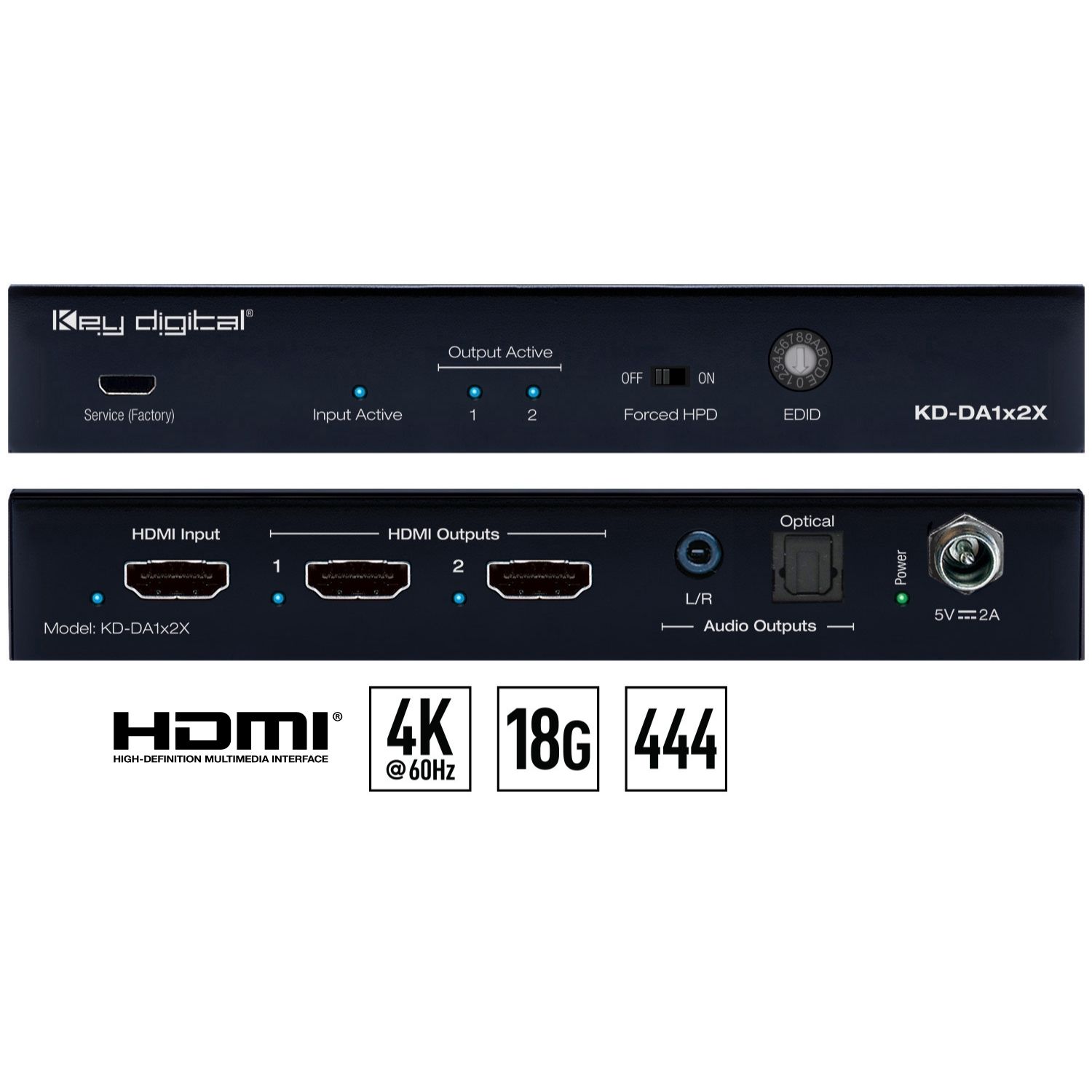

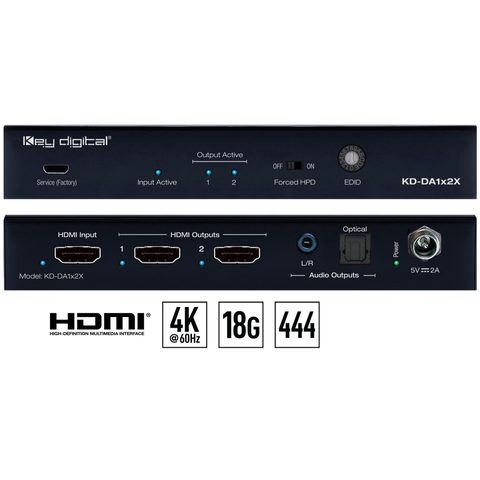

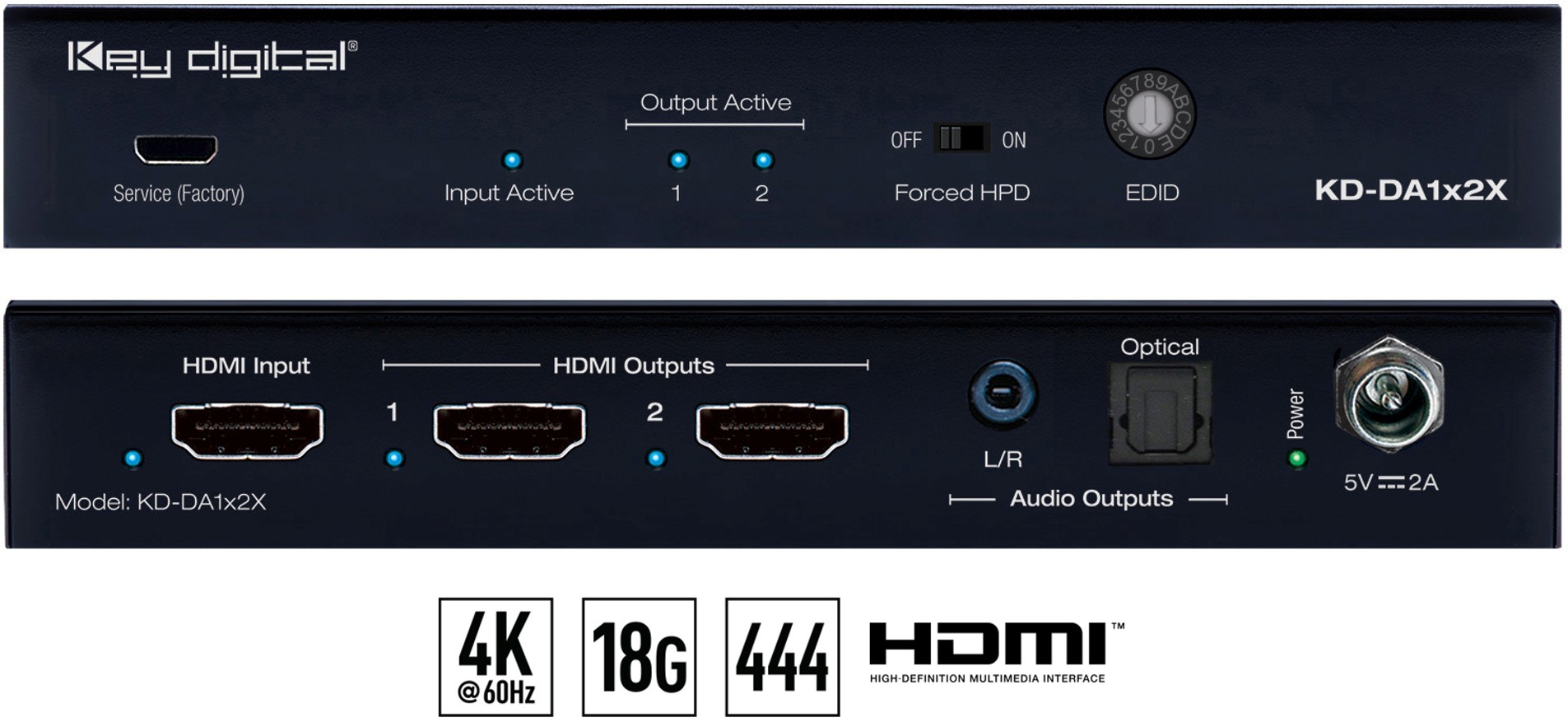

KD-DA1X2X
KD-DA1X2X

KD-DA1x2X

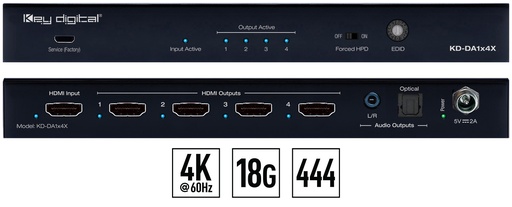

1x2 4K/18G HDMI Distribution Amplifier with L/R/Optical Audio & De-Embedded Audio Output


Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
overview
resources
specS & accessories

introduction


Features

  • HDMI Signal Distribution: 1 HDMI source to 2/4 HDMI outputs/displays
  • Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
  • Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Audio De-embedding: Audio of the selected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1
  • Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos
  • CEC Disconnect: Prevents unwanted control of source

    Additional Features


    downloads

    KD-DA1x2X_CatalogPage.pdf
    KD-DA1x2_DA1x4X Manual.pdf

    Diagrams

    KD-DA1x2X_AppExample.pdf

    specifications

    Technical:
    • Input (Each): HDMI Connector, Type A, 19 Pin Female
    • Output: HDMI Connector, Type A, 19 Pin Female
    • Bandwidth: TMDS bandwidth 18 Gbps
    • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
    • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
    • Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
    General:
    • Regulation: CE, RoHS, WEEE
    • Enclosure: Black Metal
    • Product Dimensions: KD-S2x1X - 4.3” x 1.1” x 2.8”; KD-S4x1X - 6.25” x 1.1” x 3.1”
    • Packaging Dimensions: KD-S2x1X - 6.3” x 4.2” x 3.7”; KD-S4x1X - 9.8” x 4.5” x 3.35”
    • Product Weight: KD-S2x1X - 0.5 lb; KD-S4x1X - 0.9 lb
    • Shipping Weight: KD-S2x1X - 0.7 lb; KD-S4x1X - 1.5 lb

    accessories

    • Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V2ASC
    • Mounting Brackets: 2 L-shaped

    technical documents

    KD-DA1x2X_CatalogPage.pdf
    KD-DA1x2_DA1x4X Manual.pdf

    Images and Diagrams

    KD-DA1x2X_AppExample.pdf

    specifications

    Technical:
    • Input (Each): HDMI Connector, Type A, 19 Pin Female
    • Output: HDMI Connector, Type A, 19 Pin Female
    • Bandwidth: TMDS bandwidth 18 Gbps
    • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
    • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
    • Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
    General:
    • Regulation: CE, RoHS, WEEE
    • Enclosure: Black Metal
    • Product Dimensions: KD-S2x1X - 4.3” x 1.1” x 2.8”; KD-S4x1X - 6.25” x 1.1” x 3.1”
    • Packaging Dimensions: KD-S2x1X - 6.3” x 4.2” x 3.7”; KD-S4x1X - 9.8” x 4.5” x 3.35”
    • Product Weight: KD-S2x1X - 0.5 lb; KD-S4x1X - 0.9 lb
    • Shipping Weight: KD-S2x1X - 0.7 lb; KD-S4x1X - 1.5 lb

    accessories

    • Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V2ASC
    • Mounting Brackets: 2 L-shaped
