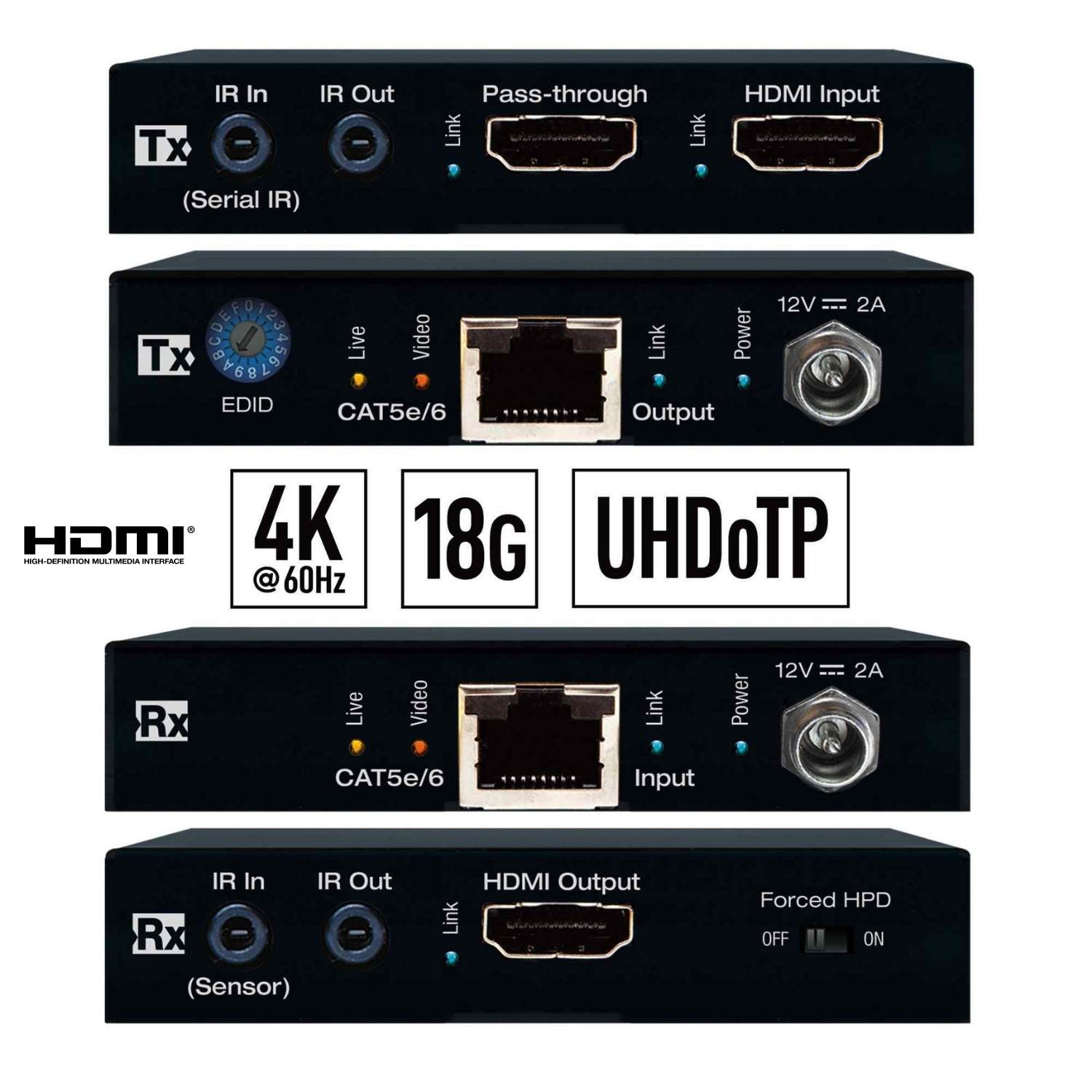

4K HDMI extender Tx + Rx set front and rear

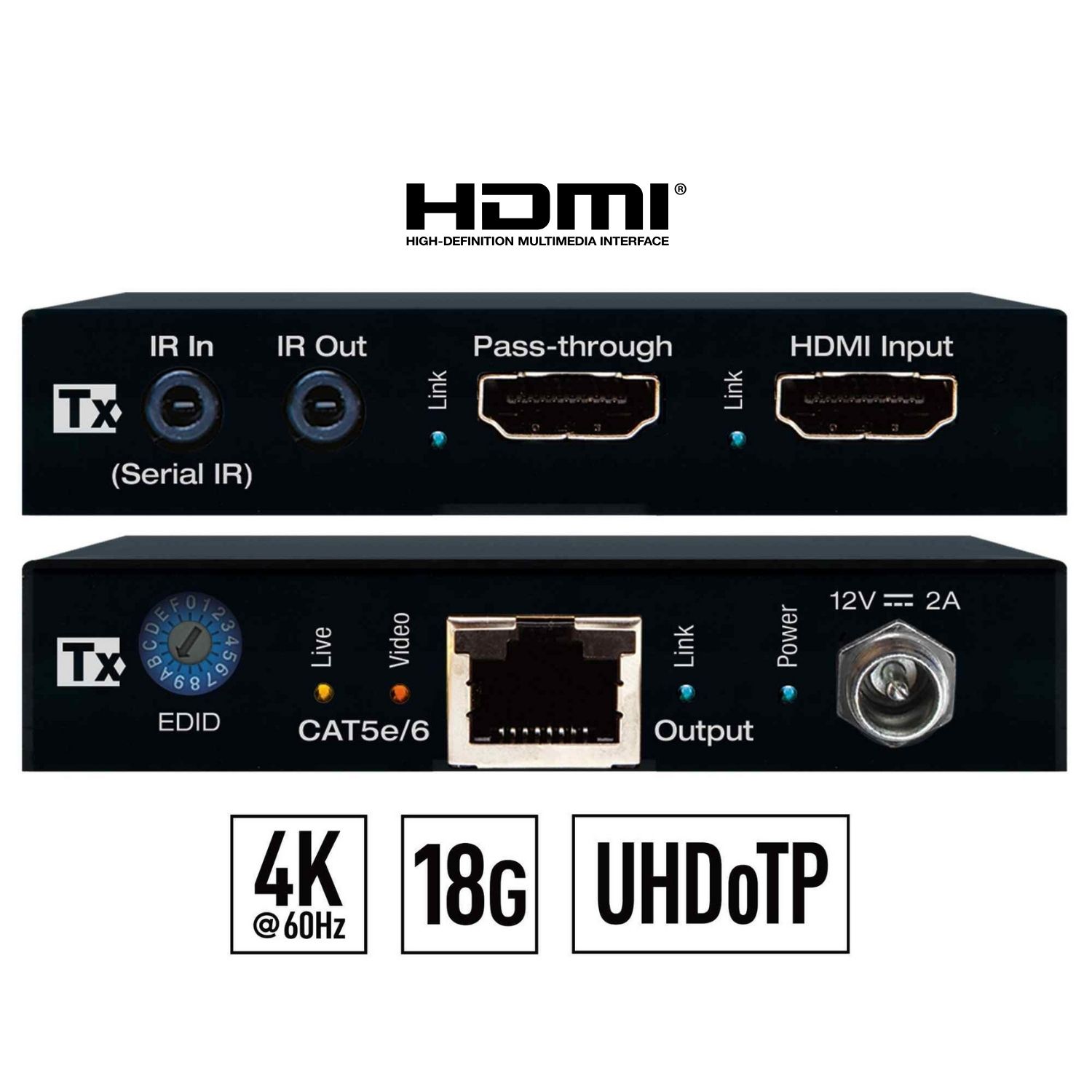

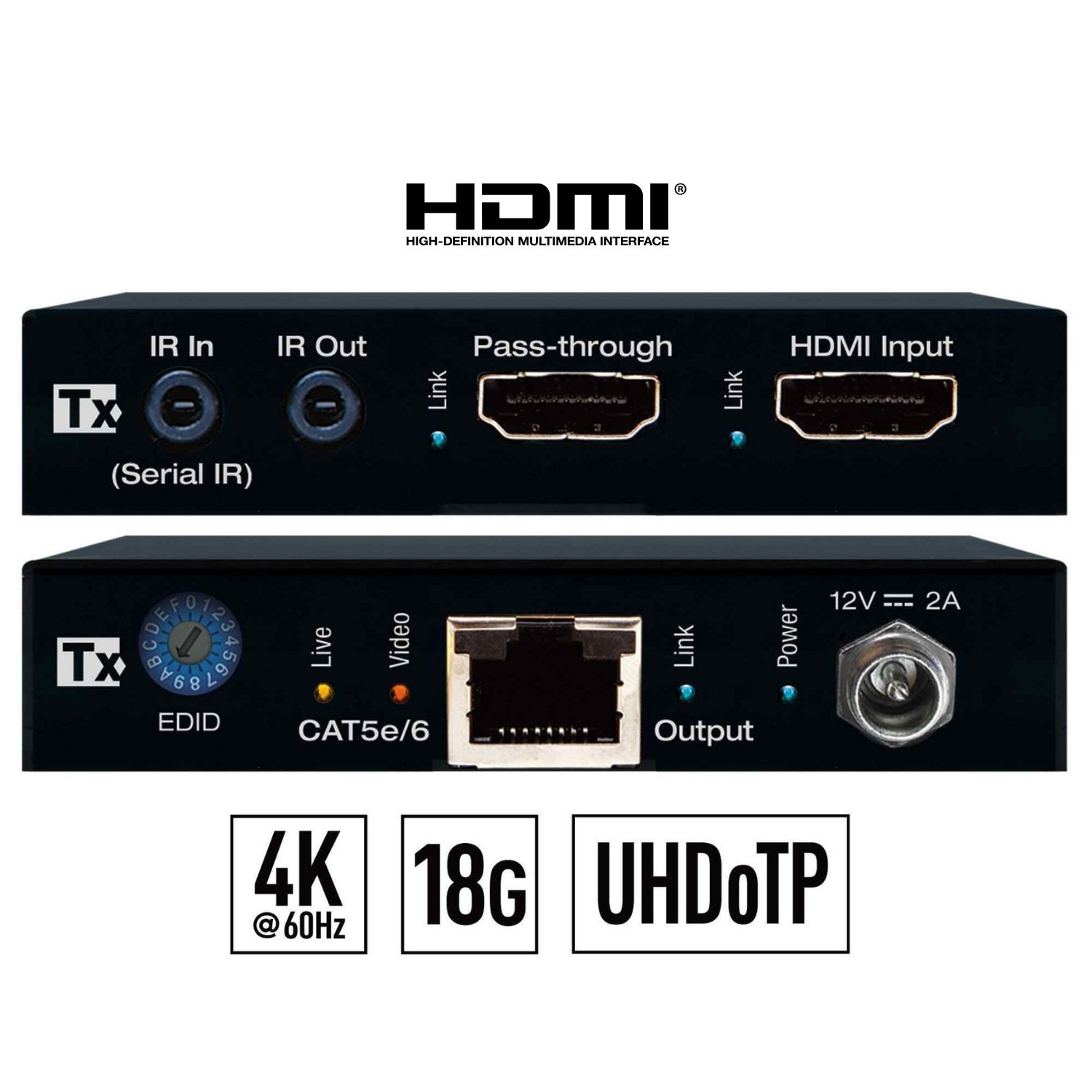

4K HDMI extender Tx front and rear

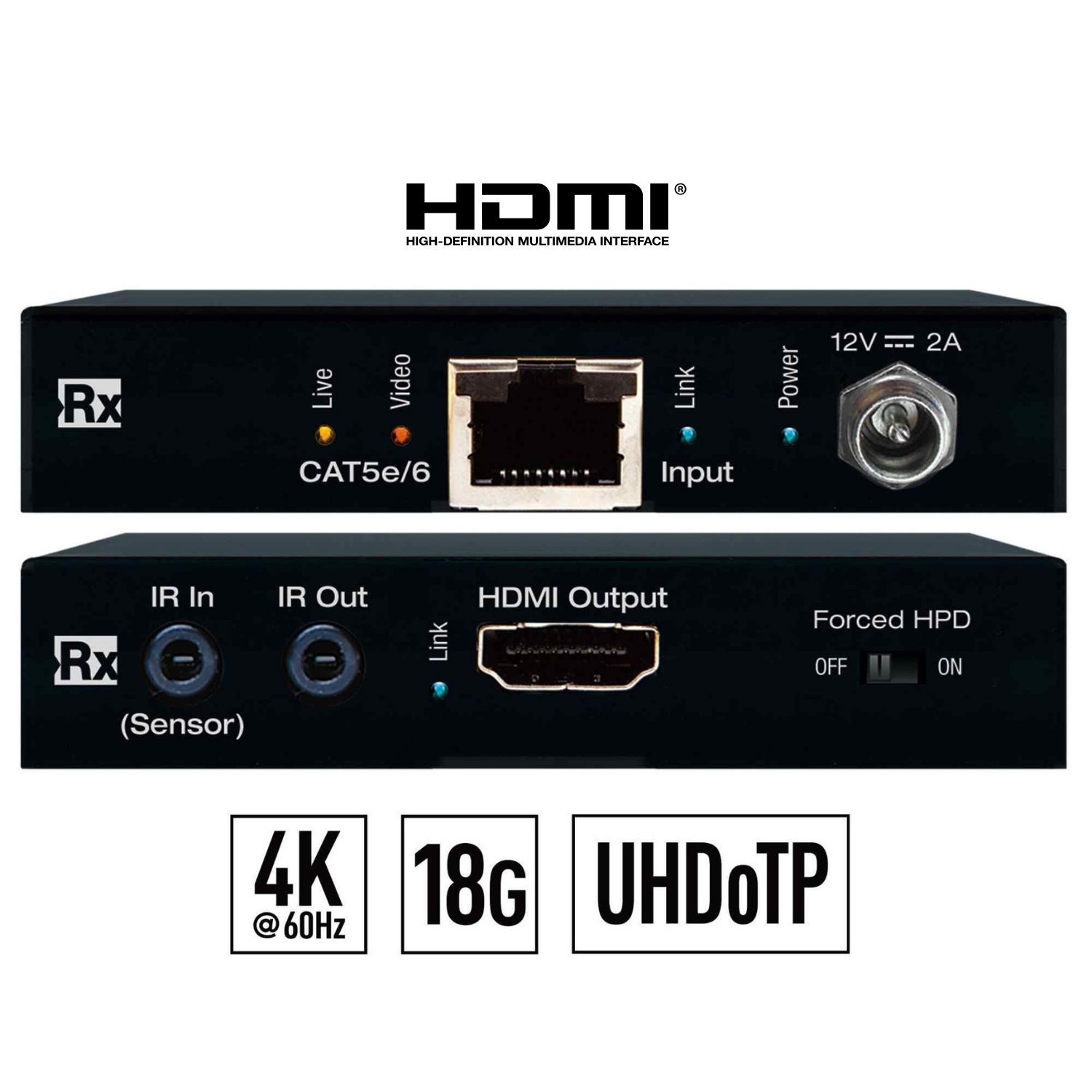

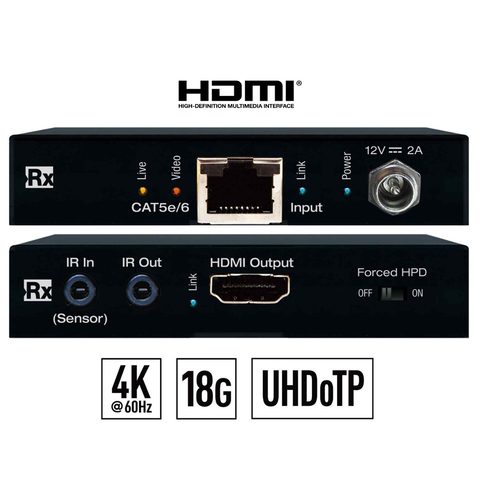

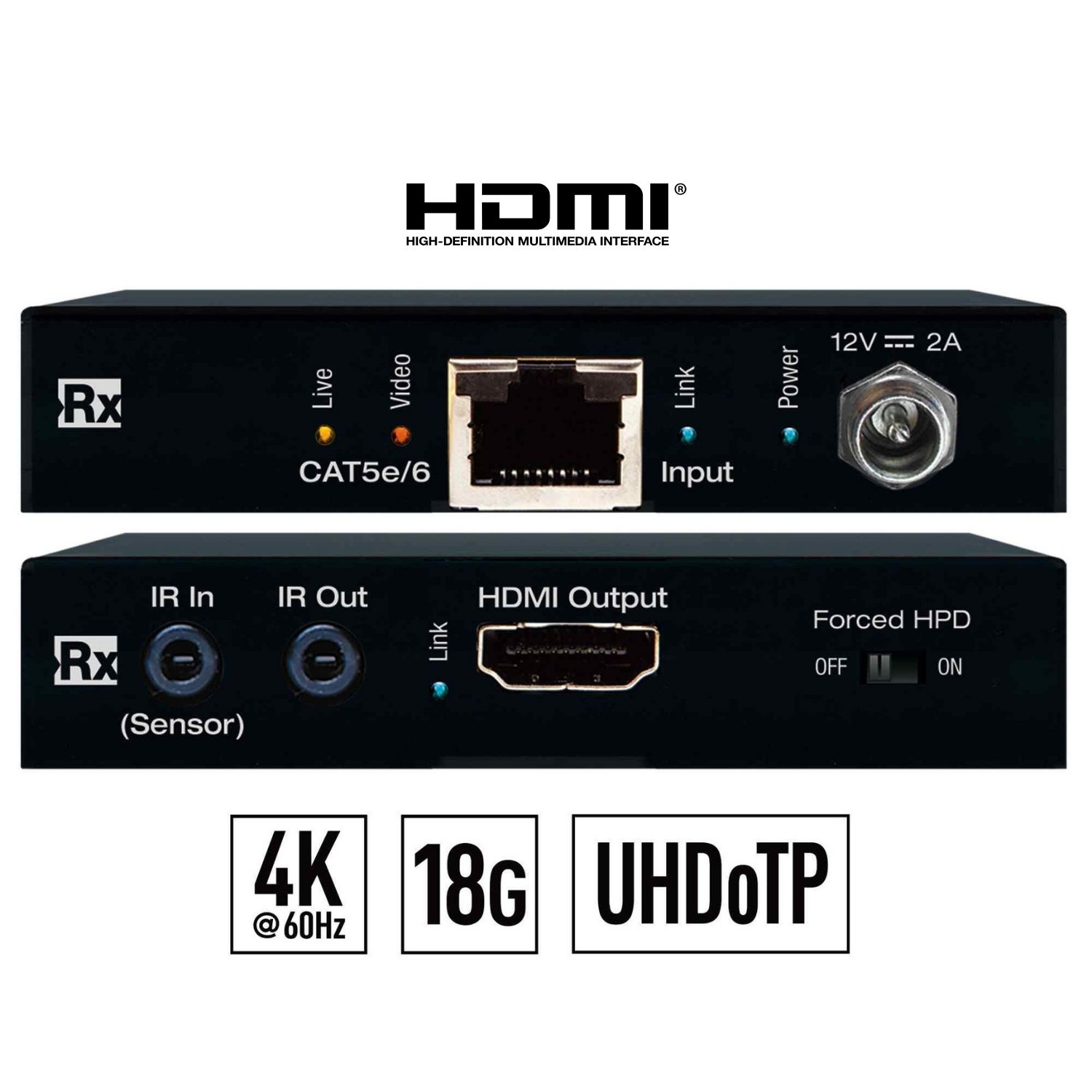

4K HDMI extender Rx fron and rear
Video extender example diagram

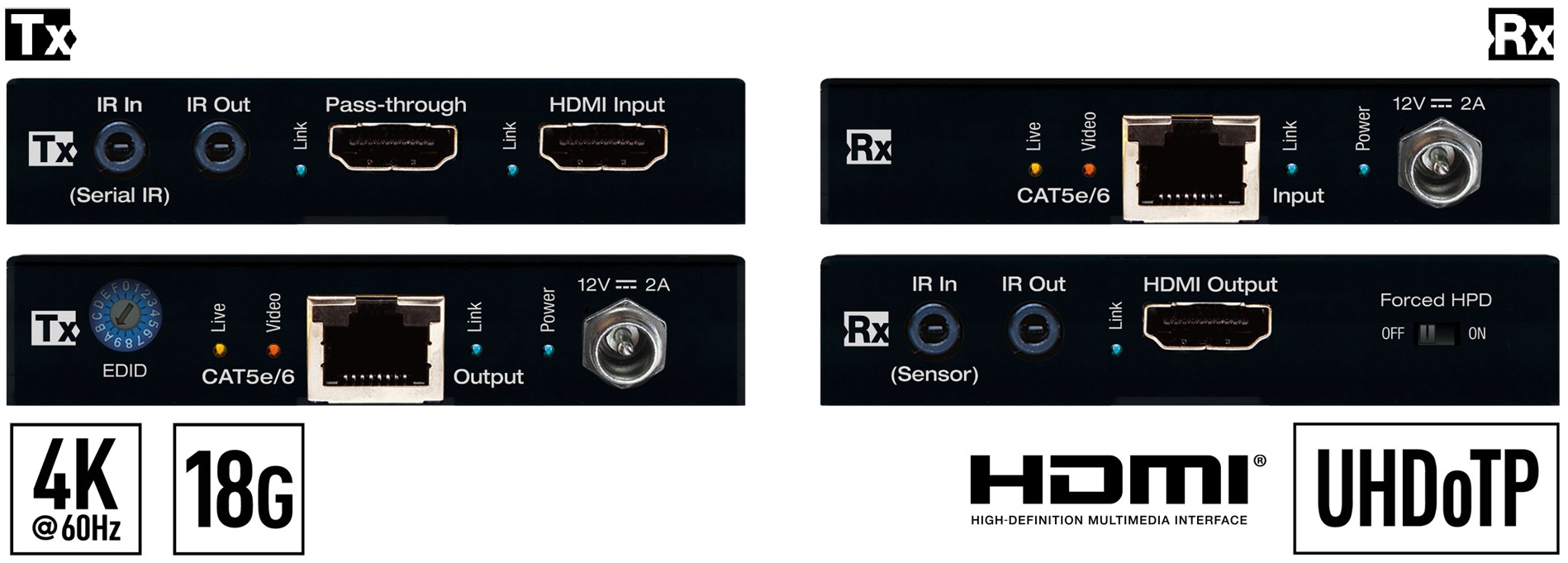

4K HDMI extender Tx + Rx set front and rear
4K HDMI extender Tx front and rear
4K HDMI extender Rx fron and rear

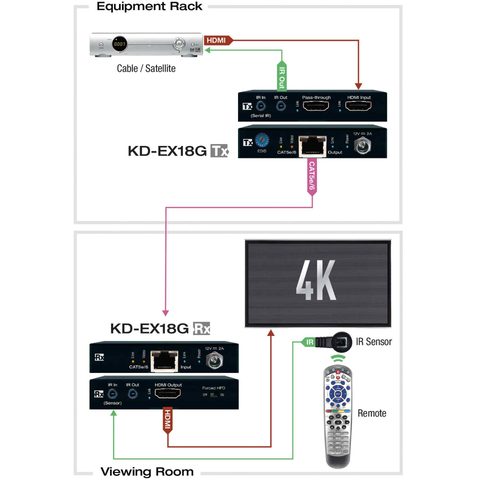

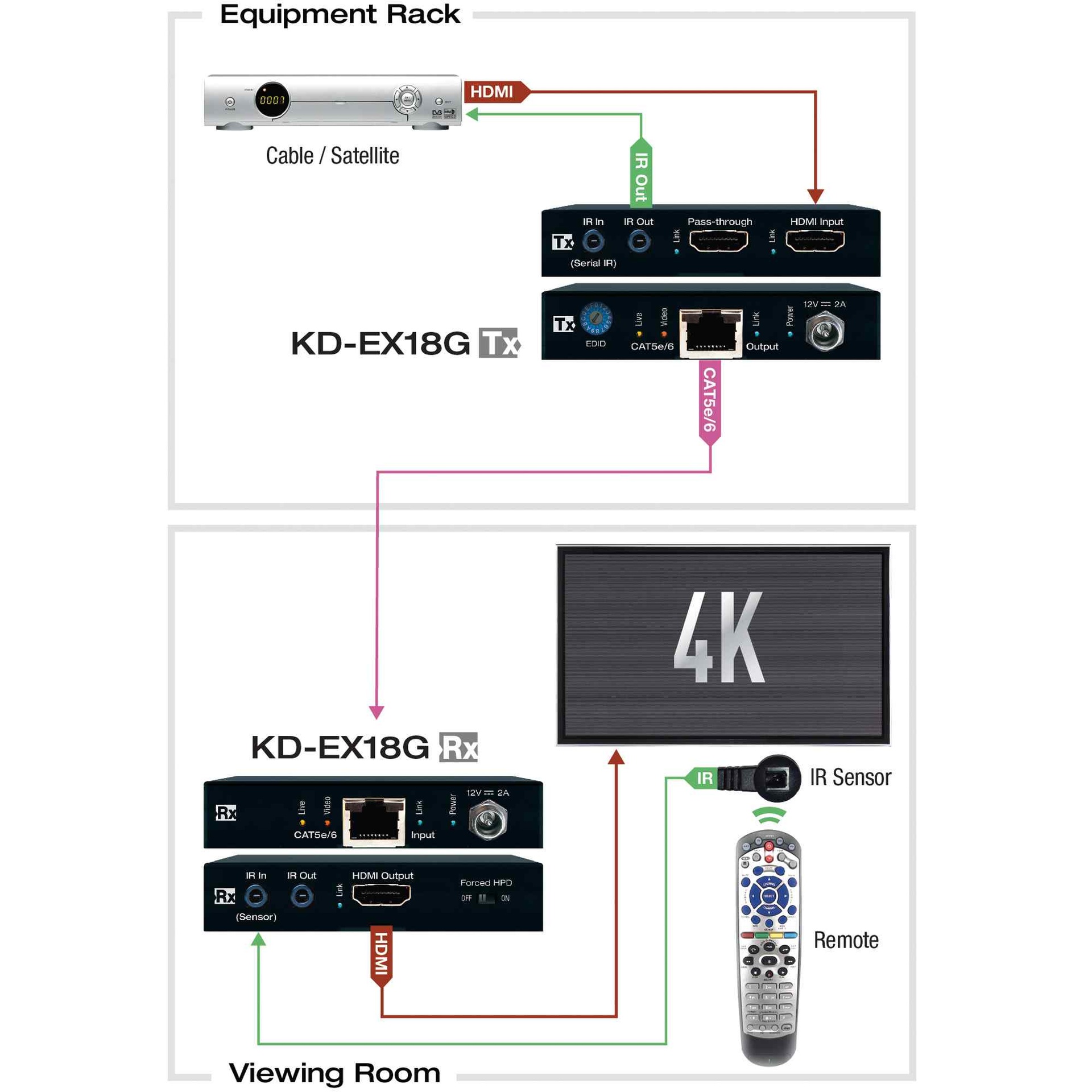

Video extender example diagram

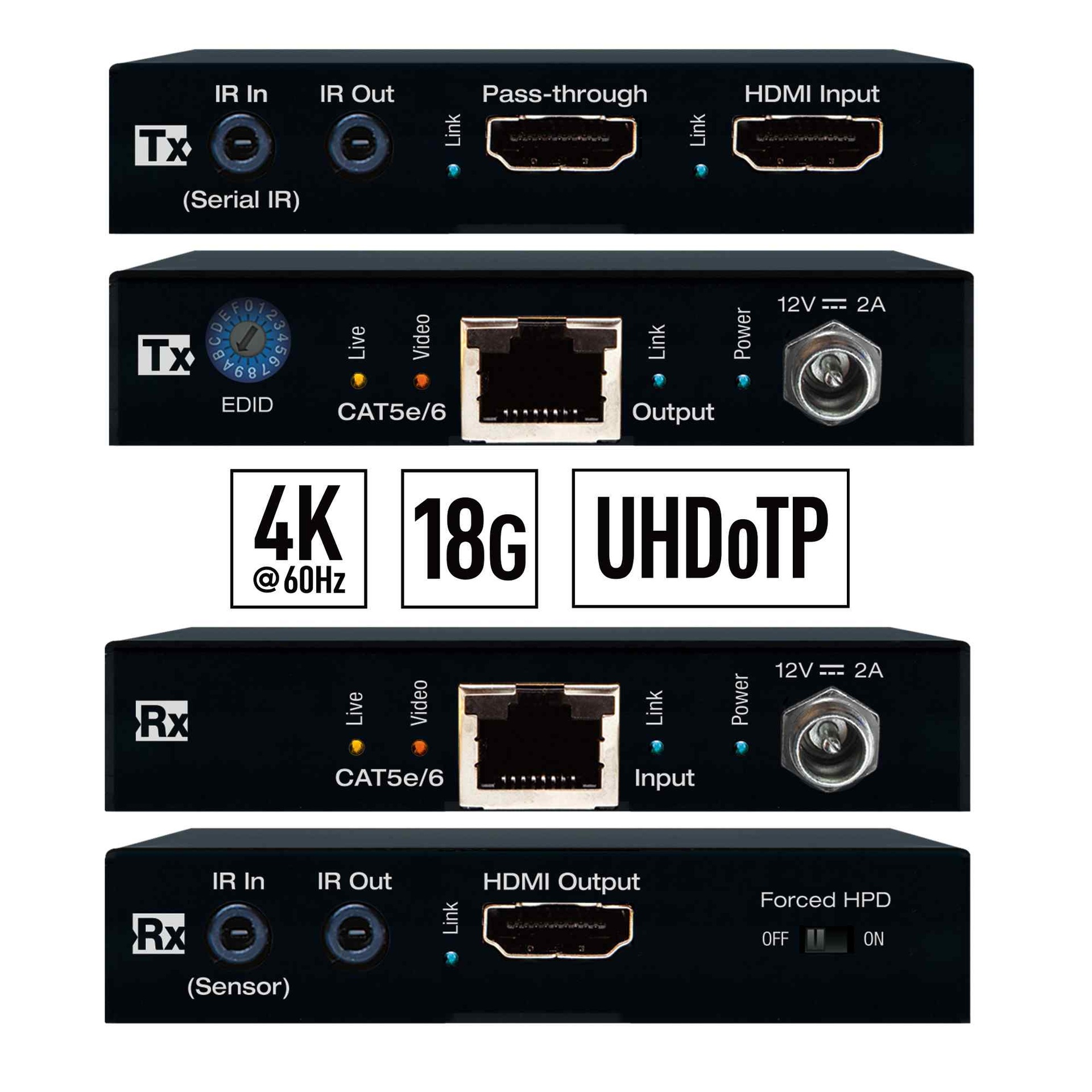

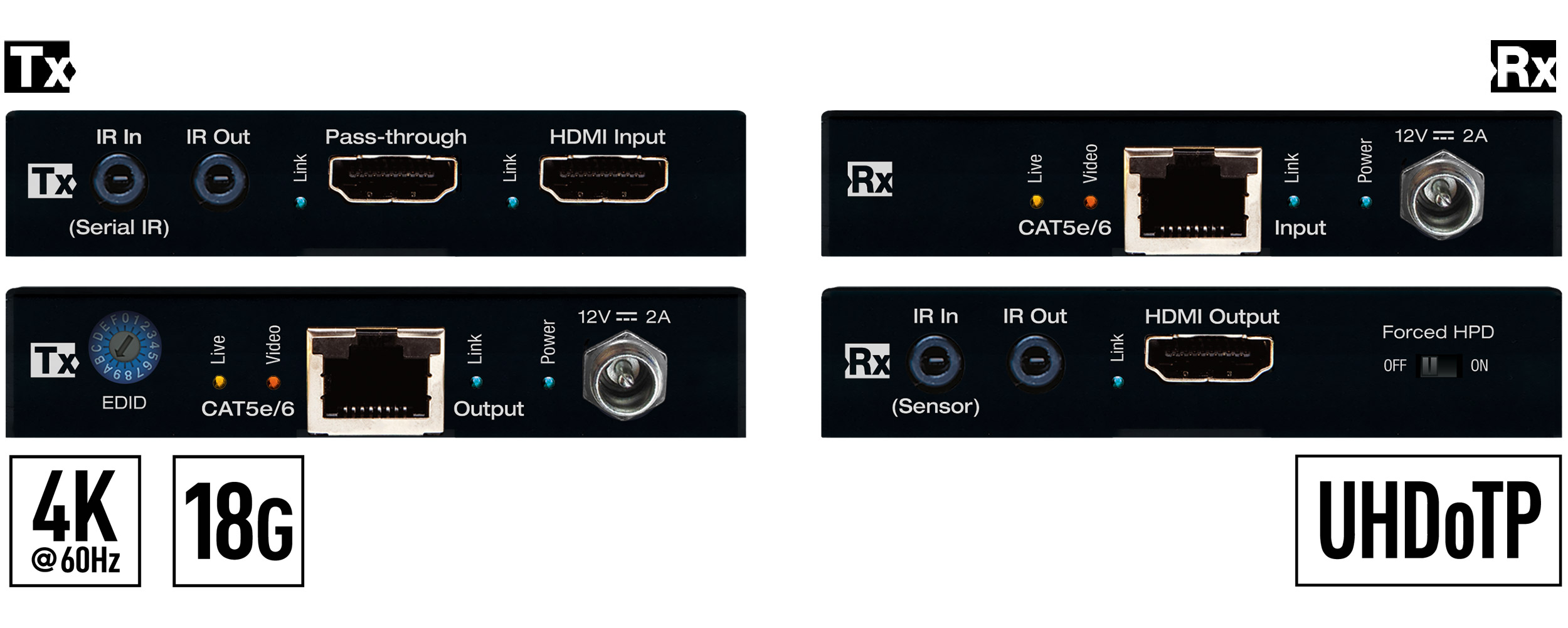

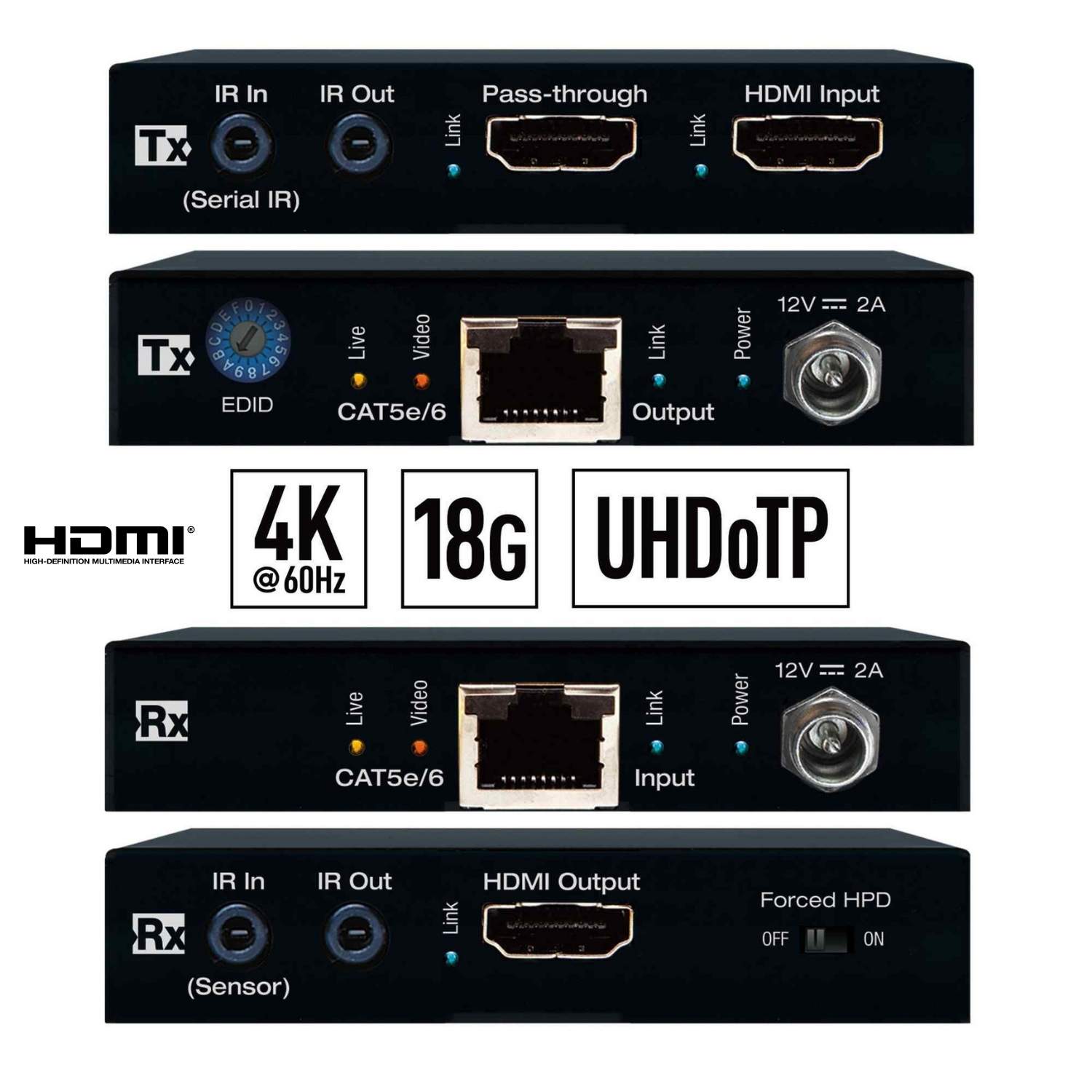

KD-EX18G

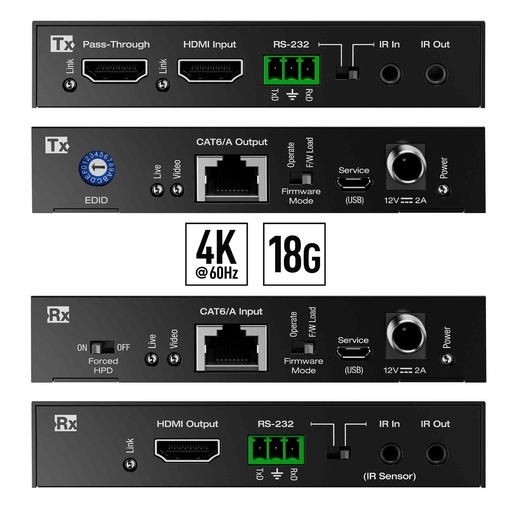

HDMI over 35m CAT6 Extender Set. DISCONTINUED - SUGGESTED REPLACEMENT KD-X444SP.

  • Extends 4K 18Gbps signals up to 115ft / 35m and 1080p signals up to 164ft / 50m.

  • Supports 4K HDMI signals up to 18Gbps with HDR, HDCP 2.2, and surround audio up to Dolby® / DTS-HD 5.1

  • Kit includes transmitter, receiver, power supply, IR emitter, and IR sensor.

  • 4K to 1080p down-conversion option.

Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
overview
resources
specS & accessories

introduction

The KD-EX18G HDMI extender kit utilizes proprietary UHDoTP technology to achieve higher quality at a lower price point. Its standout features include optional 4K to 1080p down-conversion, EDID handshake selection, IR control, and enhanced signal quality.

4K to 1080p Down-Conversion

One of the standout features of the KD-EX18G 4K HDMI extender is its ability to down-convert from 4K to 1080p.

The KD-EX18G is ideal if you have a mixed environment with some displays at 4K and others at 1080p. If your sources vary in resolution, it ensures compatibility with legacy equipment.

Equipped for HD Audio at Transmitter, 5.1 / 6.1 at Extended Display

The video extender supports HD audio formats up to 7.1 at the transmitter’s pass-through port. However, UHDoTP technology supports Dolby or DTS 5.1 or 6.1 over the CAT6 extension.

IR Pass-Through for an Integrated Experience

KD-EX18G has a 3.5mm IR sensor to collect control signals from the source's remote at the Rx unit.

The device has an IR emitter that mounts over the video source's IR receptor at the Tx unit. The emitter can also plug into the Rx unit for integration with centralized professional systems.

IR Signals may be extended for the full 50m distance along with the HDMI AV for a convenient, single-cable solution.

Flexible Power Over CAT

KD-EX18G only requires one power supply connected to the desired transmitter or receiver unit. Flexible PoC feature is included in all Key Digital CAT6 extender kits, for added convenience during installation.

Features

  • UHDoTP via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length

  • 4K Resolution Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

  • 4K to 1080p Down Convert: Optional resolution conversion applied at UHDoTP output provides added integration options in retrofit installations as well as added distance performance

  • 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension

  • Flexible Power over CAT (PoC): Only one power connection needed. Tx may power Rx, or Rx may power Tx

  • Low Profile: Slim chassis design

  • Signal Extension: 4K/UHD up to 35m (115ft) using CAT5e/6, up to 40m (131ft) using CAT6A STP. 1080p up to 50m (164ft) using CAT5e/6, up to 60m (197ft) using CAT6A STP

  • IR Sensor: Sensor powering via +5V on IR In port collects line-of-sight IR from remote(s) without external IR connecting block

  • HDMI Pass-Through: Enables connection to local monitor or AV Receiver

  • Surround Audio Support: HDMI pass-thru port supports Dolby®, Dolby® TrueHD, DTS™ and DTS-HD™ (formats up to 7.1), UHDoTP output supports Dolby®, DTS™ (formats up to 5.1/6.1

Additional Features

  • HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant

  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:2:2/8 bit

  • EDID Control: Internal library with 15 EDID handshakes including 4K with HDR in addition to native EDID data from Output/Display device connected to Rx

  • Hot Plug Detection Control: Enables integrator to choose if an active signal voltage is forced to connected display/output device

  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID handshake control, and Hot Plug Detection control

  • Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate UHDoTP transmission channel

  • HDR (High Dynamic Range): More life-like images through a greater range of luminance levels

  • Up/Down IR: Two channels of IR enable control to/from devices or control system

downloads

KD_IR_Signal_Flow_Diagrams.pdf
KD-EX18G_CatalogPage.pdf
KD-EX18G Manual_May2021.pdf

Diagrams

KD-EX18G_AppExample.pdf

specifications

Technical:

  • Inputs Tx (Each): 1 HDMI, 1 IR

  • Outputs Tx (Each): 1 UHDoTP, 1 IR

  • Inputs Rx (Each): 1 UHDoTP, 1 IR

  • Outputs Rx (Each): 1 HDMI, 1 IR

  • Bandwidth: TMDS bandwidth 18Gbps

  • Deep Color Support: Digital video formats in Deep Color Mode up to 12 bits per color

  • DDC Communication: EDID and HDCP Bi-directional buffering from Display to Source

  • HDMI Connector: Type A, 19 Pin Female

  • RJ45 Connector: Shielded Link Connector, UHDoTP

  • IR In & Out Connectors (Each): 3.5mm

  • Power: (1) 12V/2A, 24W DC Power Supply (Screw-In Type). 100-240VAC, 50-60Hz. Interchangeable transformer plug with screw-in connector. SKU: KD-PS12V2ASC

General:

  • Regulation: CE, RoHS, WEEE, EAC

  • Enclosure: Black Metal

  • Product (Each): 4.1” x 2.8” x 0.875”, Weight: 0.75 lbs

Accessories:

  • 4x Mounting Brackets, 1x IR Emitter, 1x IR Sensor, 1x Power Supply
