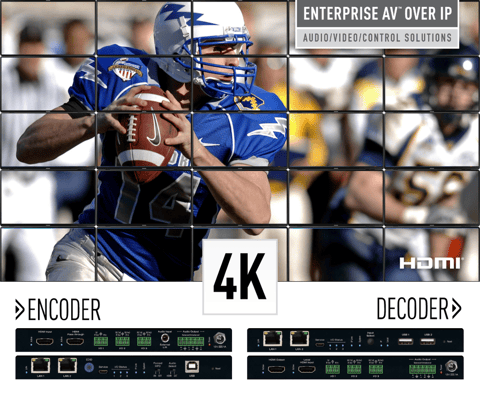

Key Digital’s Customizable and Scalable Enterprise AV™ Over IP Solutions
KD-IP1022 boasts independent video, audio, and USB
routing MOUNT VERNON, NY – December 18, 2019 – Key Digital,
the leaders in digital video and control systems, introduces the Enterprise AV™
over IP KD-IP1022ENC and KD-IP1022DEC. KD-IP1022 offers independent switching of
video, audio and USB, all of which can be freely routed for multi-layered
systems. The KD-IP1022 system requires just one encoder per video source and
one decoder per video display, making it the optimal choice for building
customizable and scalable video over IP solutions regardless of distribution, switching, matrixing needs, or
video wall building capabilities. “The KD-IP1022 builds upon the existing mature KD-IP922, but
KD-IP1022 supports full independent audio, video, and USB routing. For example,
with the 6-pin phoenix connector on the decoder you get the benefits of preamp
DSP features like volume control, muting control, and delay up to 150
milliseconds. This really creates a full audio breakaway matrixing system
separate from the HDMI video and the USB. It’s perfect for integrating with an
amplifier in the zone or in the rack,” said Jonathon Ferry, National Training
Manager. “It is important to note that this system is not compatible with the
KD-IP922 or KD-IP822. It is its own system and is considered the crème de la
crème in its product family.” The KD-IP1022 system enables Enterprise AV™ over IP to be
used in place of traditional product categories including digital video matrix,
digital video distribution system, digital video switcher, video wall
controller, digital video extender, networked audio matrix, master controller,
and KVM matrix. Utilizing a managed gigabit network switch, Key Digital’s
Enterprise AV™ Over IP enables video distribution, matrix switching, and
extension. The encoder and decoder systems create video walls with up to 16
vertical and 16 horizontal monitors with video wall processing. With independent USB routing, the KD-IP1022 systems are
recommended for many operations center and command and control applications
that are heavy on the USB KVM type feature-set and requirements. Operators can
view and listen to any connected source and easily route keyboard and mouse
plug-ins into PCs, Macs, NUCs, and NVRs to manipulate data or control those
devices. Independent audio matrixing allows Key Digital to offer a
full networked audio system within its own Enterprise AV™ over IP ecosystem.
Audio sources may plug-in on the KD-IP1022 encoder’s HDMI input or analog audio
input to then be routed to any HDMI and analog audio output on the decoder.
Pre-amp functionality including volume, delay, and bass/mid/treble control make
the audio feed ideal for feeding directly into amplifiers or audio DSPs. The KD-IP1022 is fully licensed with compliancy up to
HDCP 2.2 and backward compliant and features that latest HDMI technology such
as 4K/UHD 4:2:0/8bit at 60 f/s. Supported lossless compressed digital audio
formats include Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and
DTS-HD Master Audio™. KD-IP1022 encoders and decoders feature analog audio
de-embedding for ease of installation with audio systems. The analog audio
breakout is on a balanced / unbalanced phoenix terminal, and features volume,
muting, and three-band EQ DSP features. The KD-IP1022 features 4K/Ultra HD resolution with support
for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit
(10.2Gbps max bandwidth). With the 4K down-scale feature, the KD-IP1022
down-converts incoming 4K resolution to 1080p or 720p at each decoder
effectively enabling monitors to always display content at optimal resolution. The KD-IP1022 uses advanced EDID controls and comes with a
built-in internal library with 15 EDID handshakes including 4K with HDR in
addition to native EDID data copied from the output/display devices connected
to the decoder. Key Digital’s proprietary Full Buffer System manages TMDS
re-clocking and signal re-generation, HDCP authentication to source and
display, EDID control handshake, and Hot Plug Detection Voltage. Hot Plug
Detection Controls enables integrator to choose if active signal voltage is
forced to connected input devices. When integrated with a compatible PoE network
switch, the KD-IP1022 does not require a power supply. With redundant power
connection the system has added reliability for non-PoE integration using the
included power supply. KD-IP1022 contains 3 multi-function ports that may be used
as third-party control interfaces including Compass Control® Pro master
controller, control extension via IP, or callable via KeyCode open API. The
KD-IP1022 is controllable by all IR, RS-232 & TCP/IP supported control
systems via open API including Key Digital’s Compass Control® Pro or
third-party control systems.
KD-IP1022 joins a suite of Key Digital IP enabled products
that are now app ready. The engineers at Key Digital have
created the Key Digital APP, KD-APP, an easy way for installers and users
to switch inputs and control Key Digital systems all from an iOS
device. KD-APP performs network scans, detects, and populates a pre-built GUI
including image preview and finger drag video wall layout control. The Key
Digital app can be downloaded free from the App Store.
